SN-500:
Powerful and Easily Customisable Material Handling Solutions for Extra Heavy Loads

Powerful material handling solutions for extra heavy loads up to 500 kg.

The SN-500s are the most powerful material handling solutions in the SN-line.

Designed for prolonged daily use in demanding industrial environments, these electric lifters are capable of lifting up to 500 kg (including the mounted lifting tool) and able to utilise all of our lifting tools, both simple, manual and electric.

With an unparalleled degree of flexibility for stainless steel lifting devices in this weight class, the SN-500s are the perfect choice for lifting heavy loads requiring an easily adaptable lifting platform.

Features

  • Self-locking gear system for safety and accuracy. In case of electrical failure the mechanical system automatically brings the lifter to an immediate standstill.
  • Large battery capacity with charge-state indicator. The large battery capacity allows for prolonged use of the lifter, even with the addition of electrical lifting tools.
  • Easily customizable: height of lifting column and dimensions of wheel base can be modified to customer specifications.
  • Rugged construction for industrial use. With its major parts constructed in stainless steel, the SN-500 is built to last and for use in demanding industrial environments. Featuring a fully welded wheel base, these lifters do not become loose or wobbly even after many years of intensive use.
  • Ergonomic handle designed to allow the user multiple different grips depending preference and situation.
  • Robust remote control specifically designed for our lifters. Where practically all other lifters use a remote control with a plastic housing, our remote control features a full metal body and a high quality PU spiral cable. These remote controls do no crack or break when dropped and the cable remains flexible even after many years of use.
  • Dual speed lifting and lowering. The control unit and remote control allow for either full speed operation or lifting at a reduced speed. The reduced speed is pre-set to the desired value on the control unit.
  • Large range of lifting tools: both electrical and non-electrical lifting tools are available.
  • Cambelt drive: The use of an AT-10 cambelt ensures smooth, reliable operation with no need for lubricants or continuous maintenance.
  • Wheels and castors: We use non-marking wheels and swivel castors with quality bearings making the lifter easy to maneuver. A large selection of different wheels are available to ensure that they suit different height requirements and floor surfaces.
  • Electronic overload protection – immediately stops all movement if lifter is overloaded.

SN-500 Material Handling Solutions: Product Data

 SN-500LSN-500MSN-500HSN-500HSP
Lifting Capacity 500 kg 500 kg 500 kg 500 kg
Total Height 1490 mm 1975 mm 2351 mm 1300-3500 mm
Footprint (LxW) 828×577 mm 828×577 828×577 828×577
Stroke 995 mm 1333 mm 1856 mm 805-3005 mm
Lifting Speed – No load 130 mm/s 130 mm/s 130 mm/s 130 mm/s
IP-rating 31 31 31 31
Rear Wheels ø125 mm – Brake ø125 mm – Brake  ø125 mm – Brake  ø125 mm – Brake
Front Wheels Swiveling ø80 mm Swiveling ø80 mm Swiveling ø80 mm Swiveling ø80 mm
Surface Treatment Stainless steel – Glass bead blasted Stainless steel – Glass bead blasted Stainless steel – Glass bead blasted Stainless steel – Glass bead blasted
Battery Capacity 24V – 45Ah  24V – 45Ah 24V – 45Ah 24V – 45Ah
Battery Charger Built in – 24V 3.5A Built in – 24V 3.5A  Built in – 24V 3.5A Built in – 24V 3.5A
Power Supply 115-230V AC 115-230V AC 115-230V AC 115-230V AC
Control Unit Solid-state PLC Solid-state PLC Solid-state PLC Solid-state PLC
User Control System Remote control with E-stop for manipulators Remote control with E-stop for manipulators  Remote control with E-stop for manipulators Remote control with E-stop for manipulators
Overload Protection  Current monitor with cut-off Current monitor with cut-off Current monitor with cut-off Current monitor with cut-off
DOWNLOAD FULL DATASHEET

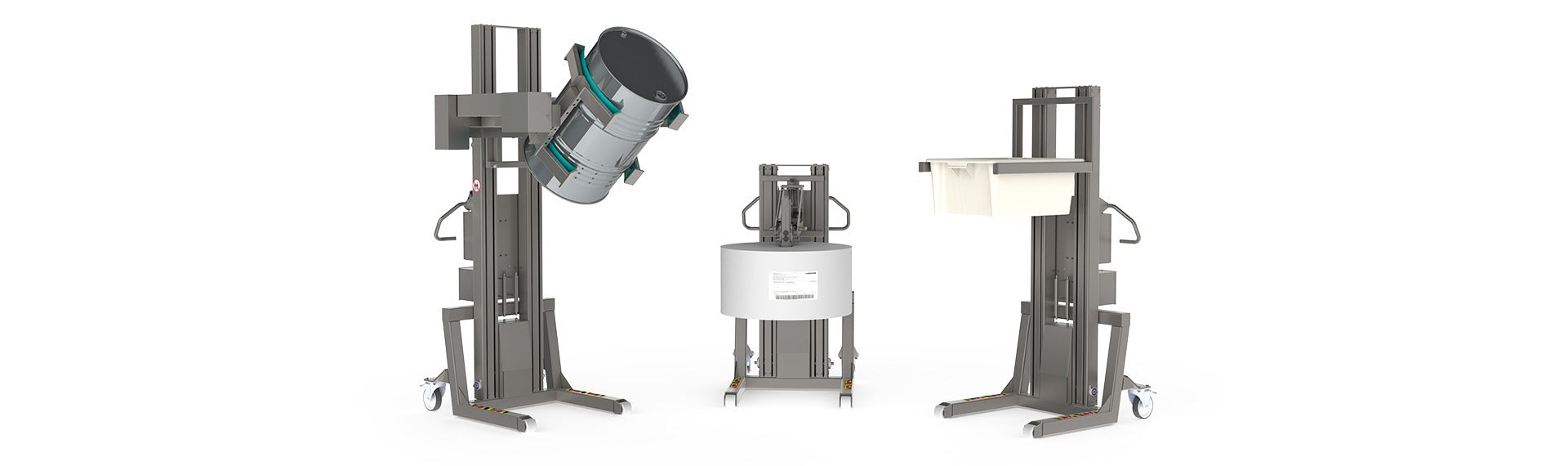

Examples of SN-500 with lifting tools

On this strong and reliable lifting apparatus in stainless steel we have fitted a roll lifting tool (a V-block) for external handling of heavy rolls.
This all-electric roll handling machine with an expandable mandrel for inner grip is able to lift rolls up to 350 kg.
Equipped with a metal platform, this battery powered industrial handling machinery is suitable for handling many different types of loads e.g. drums and boxes.
On this ergonomic, stainless steel lifting device is attached a special metal platform with high edges ensuring the stability of the loads.
This lifter tool, a double mandrel, is a good choice for e.g. heavy paper handling. This roll lifter is able to lift rolls up to 430 kg.
Together with a boom arm and a V-block tool, this industrial goods lift is perfectly suited for gentle external roll handling.
This is our largest electric pallet stacker able to lift up to 450 kg.
This drum lifter is fitted with a manual linear lift clamp along with a manual tipping tool allowing the drum to be lifted and tilted forward for e.g. emptying.
This strong and durable vertical lift is fitted with linear lifting clamps ideal for handling drums and barrels.
On this battery operated lift is attached a simple fork that can be used to lift boxes (as is the case here) or pallets.
This electric lifter with a special lifting clamp can lift large cylindrical loads such as drums and other vessels.
Powerful material handling solutions for extra heavy loads up to 500 kg.
This simple piece of roll handling equipment features a single mandrel and can lift rolls up to 450 kg.
This powerful electric fork lift is lifting a metal pallet. This is our strongest lifter, and it can lift pallets up to 450 kg.
The lifter tool displayed here is a special roll lifting tool called a fork with notches and it lifts the roll via a shaft inserted into the core.
This electrically powered lifting machine is fitted with a rotation unit and a special set of lifter clamps designed for a particular box.
This electric drum handler in stainless steel lifts and tilts the drums via linear lift clamps and a tipping tool.
On this strong and reliable lifting apparatus in stainless steel we have fitted a roll lifting tool (a V-block) for external handling of heavy rolls.
This all-electric roll handling machine with an expandable mandrel for inner grip is able to lift rolls up to 350 kg.
Equipped with a metal platform, this battery powered industrial handling machinery is suitable for handling many different types of loads e.g. drums and boxes.
On this ergonomic, stainless steel lifting device is attached a special metal platform with high edges ensuring the stability of the loads.
This lifter tool, a double mandrel, is a good choice for e.g. heavy paper handling. This roll lifter is able to lift rolls up to 430 kg.
Together with a boom arm and a V-block tool, this industrial goods lift is perfectly suited for gentle external roll handling.
This is our largest electric pallet stacker able to lift up to 450 kg.
This drum lifter is fitted with a manual linear lift clamp along with a manual tipping tool allowing the drum to be lifted and tilted forward for e.g. emptying.
This strong and durable vertical lift is fitted with linear lifting clamps ideal for handling drums and barrels.
On this battery operated lift is attached a simple fork that can be used to lift boxes (as is the case here) or pallets.
This electric lifter with a special lifting clamp can lift large cylindrical loads such as drums and other vessels.
Powerful material handling solutions for extra heavy loads up to 500 kg.
This simple piece of roll handling equipment features a single mandrel and can lift rolls up to 450 kg.
This powerful electric fork lift is lifting a metal pallet. This is our strongest lifter, and it can lift pallets up to 450 kg.
The lifter tool displayed here is a special roll lifting tool called a fork with notches and it lifts the roll via a shaft inserted into the core.
This electrically powered lifting machine is fitted with a rotation unit and a special set of lifter clamps designed for a particular box.
This electric drum handler in stainless steel lifts and tilts the drums via linear lift clamps and a tipping tool.
