Electric Lifter with Crane Arm (B-CA)

21.500,00 kr

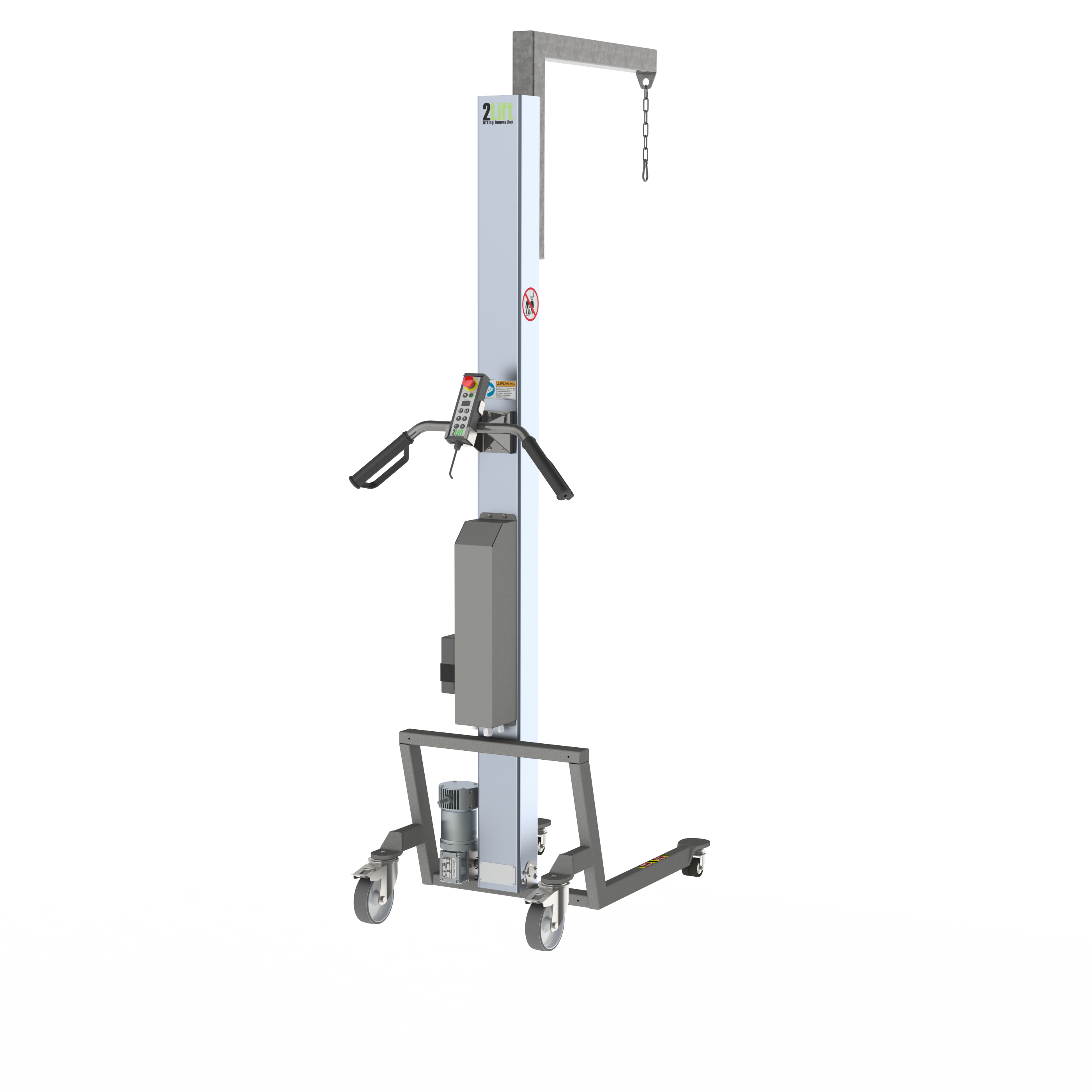

Lightweight Lift in Aluminum up with versatile Crane Arm

This battery-powered mini lift is your ideal partner for quick and efficient lifting tasks. The included crane arm is a versatile lifting tool that is designed to lift a load hanging from a chain, wire, or strap. Because crane arms are highly versatile, they can lift many different types of items. The connection to the load can be as simple as a hook or a carabiner, but more complex grippers can also be mounted if the load is not equipped with eyes or similar attachment points.

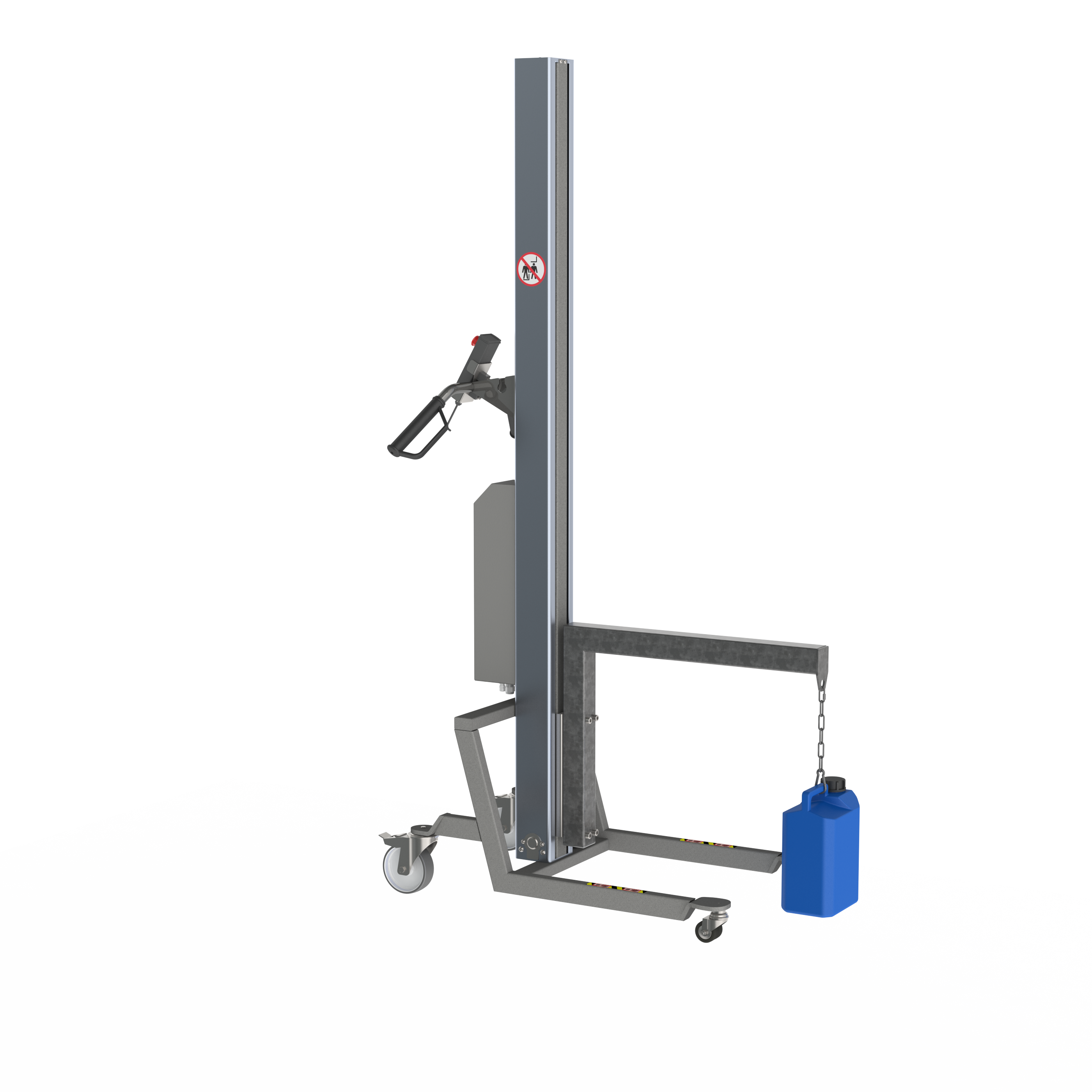

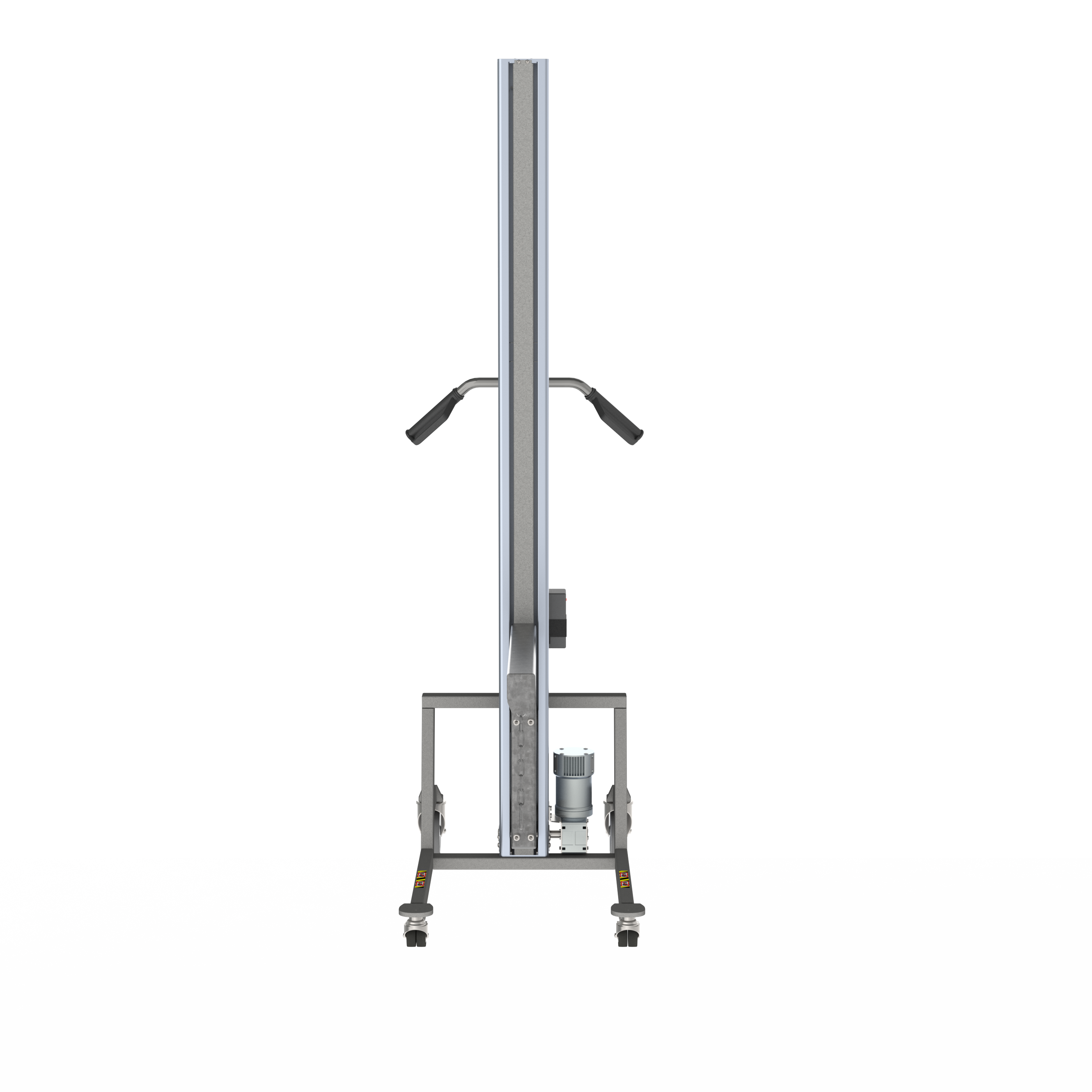

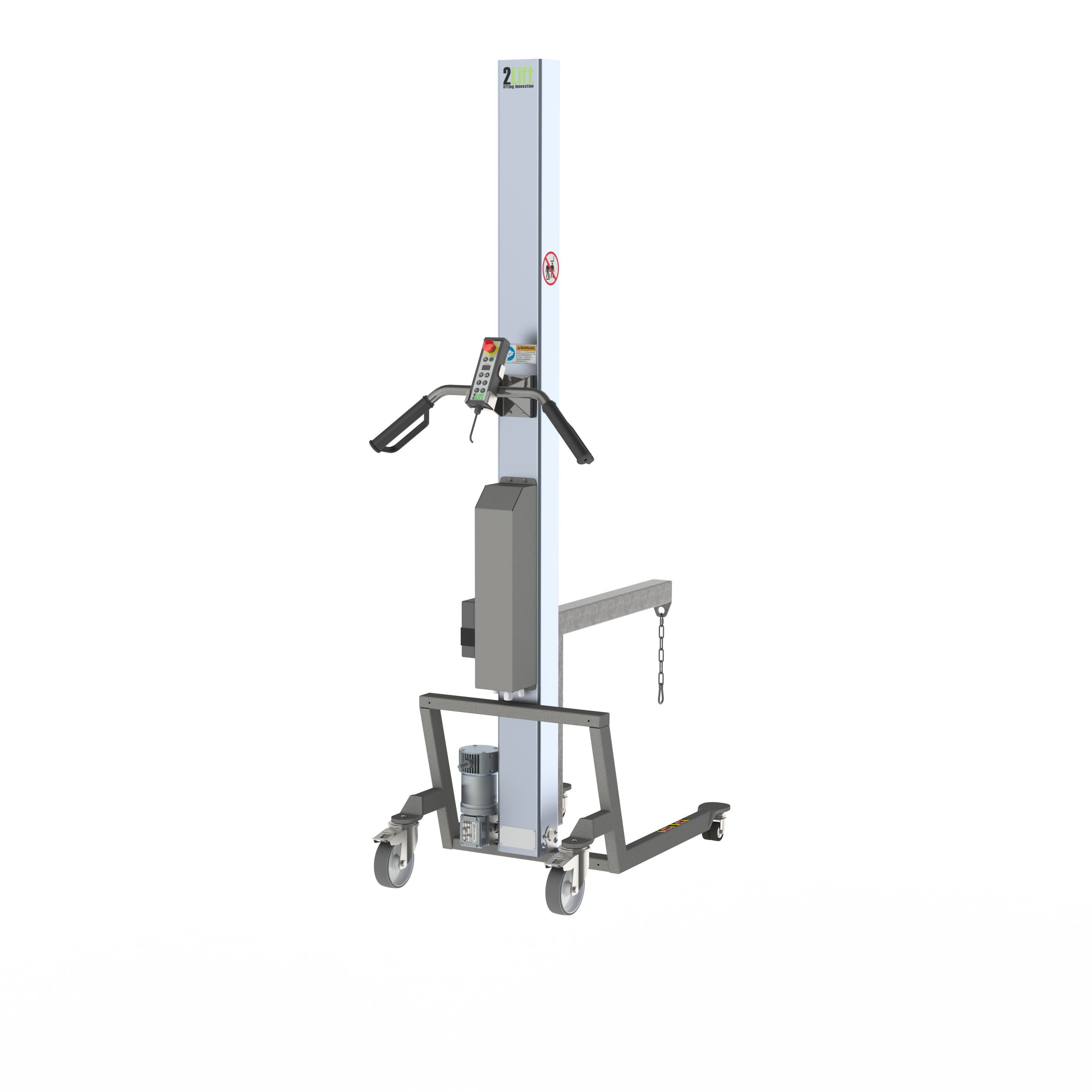

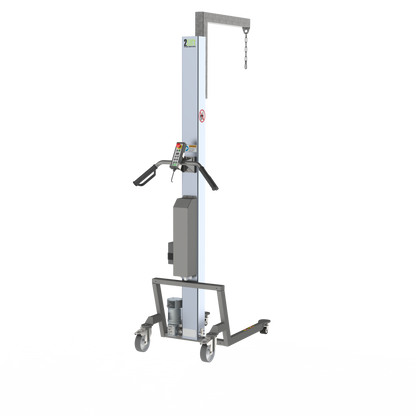

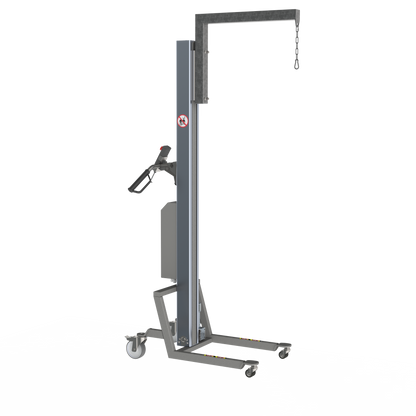

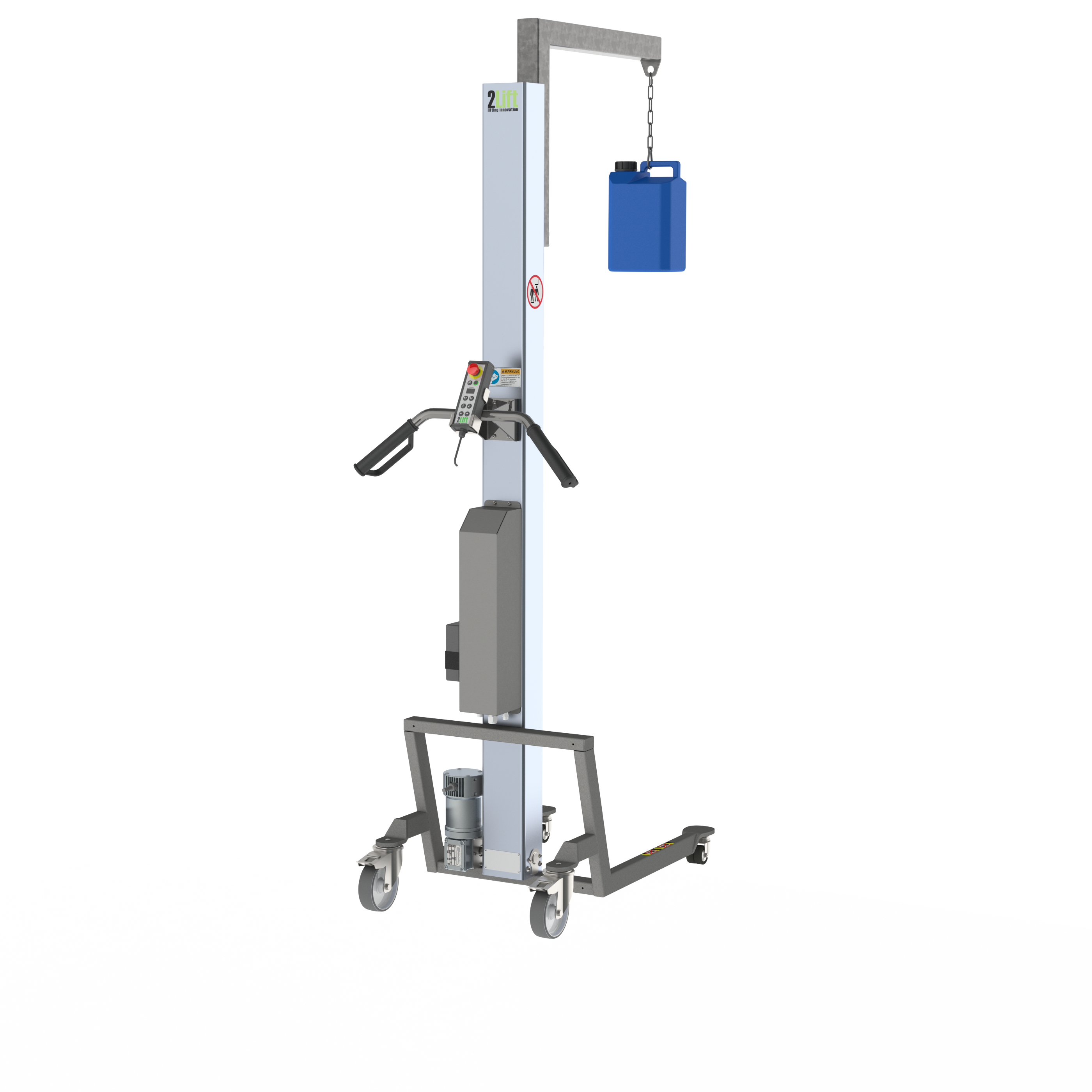

The images on this page change based on the max load and height you select below.

Datasheets

Compact

Designed for industrial use

Lightweight

Built from aluminum and designed with a focus on lightweight construction.

Motion

To be mounted directly on the lifting tower

IP31

Dust tight and protected against water jets and condensation.

Tilt Secure

Prevents the lift from raising itself and tipping

Durable

Stainless Steel

Cost-effective ultralight aluminum mini lift – ideal for quick daily load handling

Experience effortless and efficient load handling with our Electric Lifter — the perfect solution for quick, daily lifts. Made of ultralight, anodized aluminum, it’s cost-effective, durable, and designed for tight spaces. Its mini profile allows easy maneuvering in confined areas, while the rugged remote control with display and adjustable speeds ensures safe, precise operation. Equipped with a safety slip clutch and self-locking gear, it guarantees reliable performance even during electrical faults. Connects directly to mains power and boasts low-maintenance, wear-resistant components for long-lasting use. Ideal for boosting productivity with ease and safety!

Product details

Lift Construction

Electric lift made of anodized aluminum, classified with IP31 dust and water protection, featuring a robust motor manufactured in Europe.

Handling

The electric lifting process is controlled via a push button on the remote control, which features a display for easy operation. Lifting speed can be adjusted using a control knob, offering two speeds: a normal speed of approximately 130 mm/sec and a reduced speed preset on the remote, ranging between 10-50% of the maximum speed. For enhanced safety, an emergency stop button is located on the remote. Its low weight and compact dimensions make it suitable for use in limited workspace areas.

The remote control is ruggedly built from anodized aluminum and connected by a high-quality PU spiral cable, ensuring easy one-handed operation. An ergonomic handle is included to allow various gripping positions, enhancing user comfort.

Safety

The lift is equipped with a self-locking gear system (worm gear), which automatically stops the lift in case of an electrical fault. Additionally, a safety slip clutch (single direction clutch) prevents the lift from raising itself or tipping backward during downward movement, ensuring safe operation.

Power Supply

The system is battery-powered but can also be permanently connected to mains power (power supply: 110-230 V AC) for continuous operation. It features an intelligent external battery charger (24V, 3.5A) that ensures long battery life through on-demand charging. A built-in LED display indicates the current battery charge level for convenient monitoring.

Maintenance

The system features a low-maintenance AT-10 timing belt and a highly durable solid-state DC control for reliable operation. It is equipped with wear-resistant parts, including wheels and maintenance-free standard batteries that are designed without memory effect, ensuring long-lasting performance.
