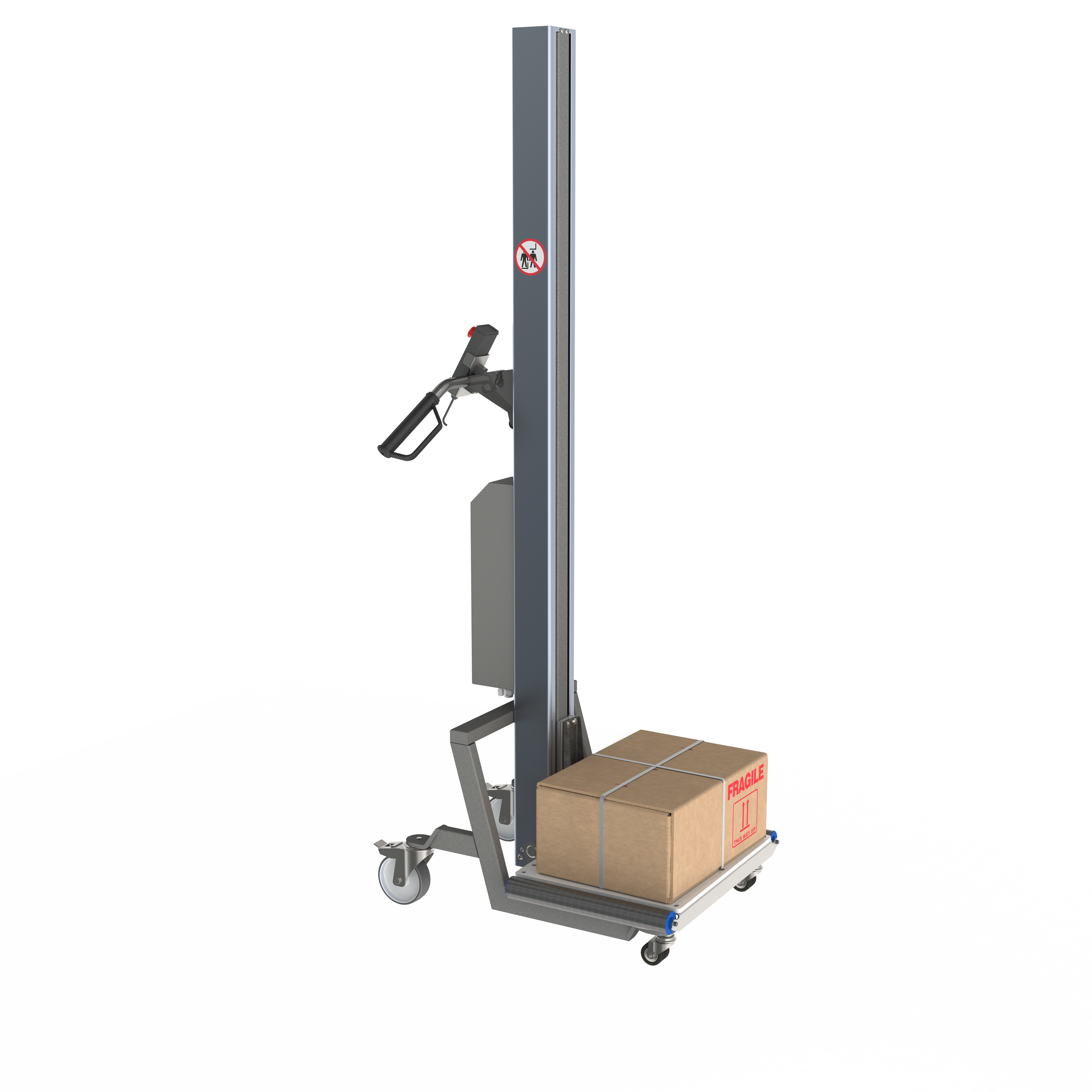

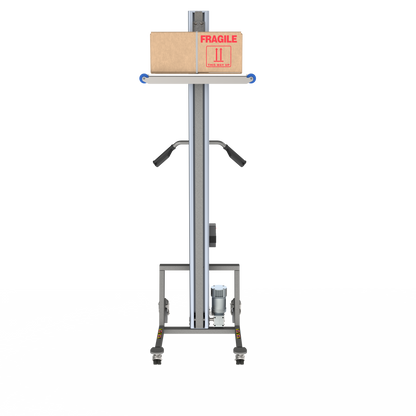

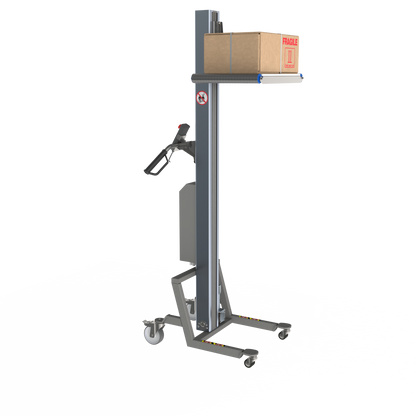

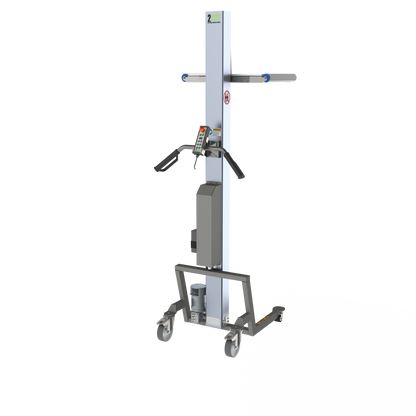

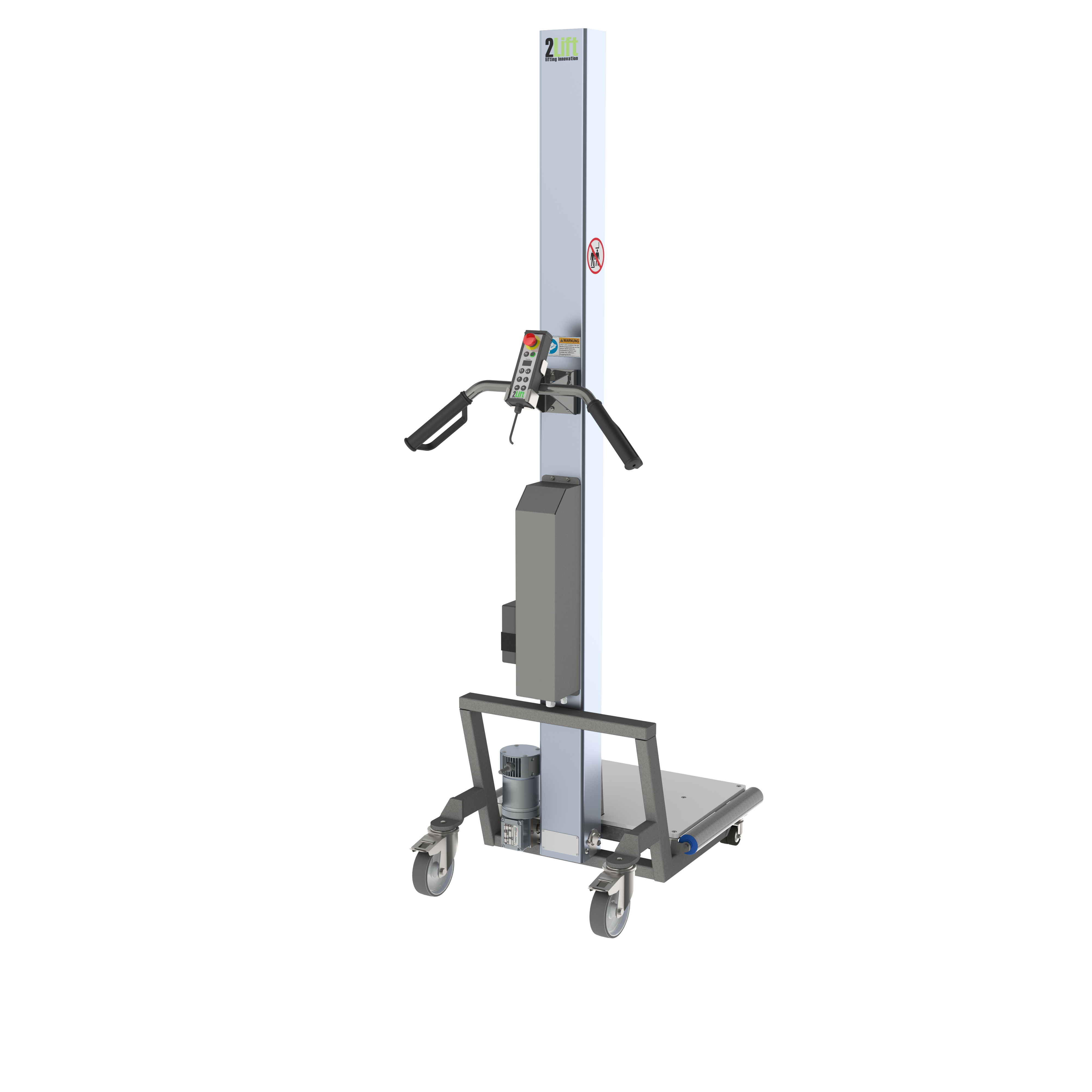

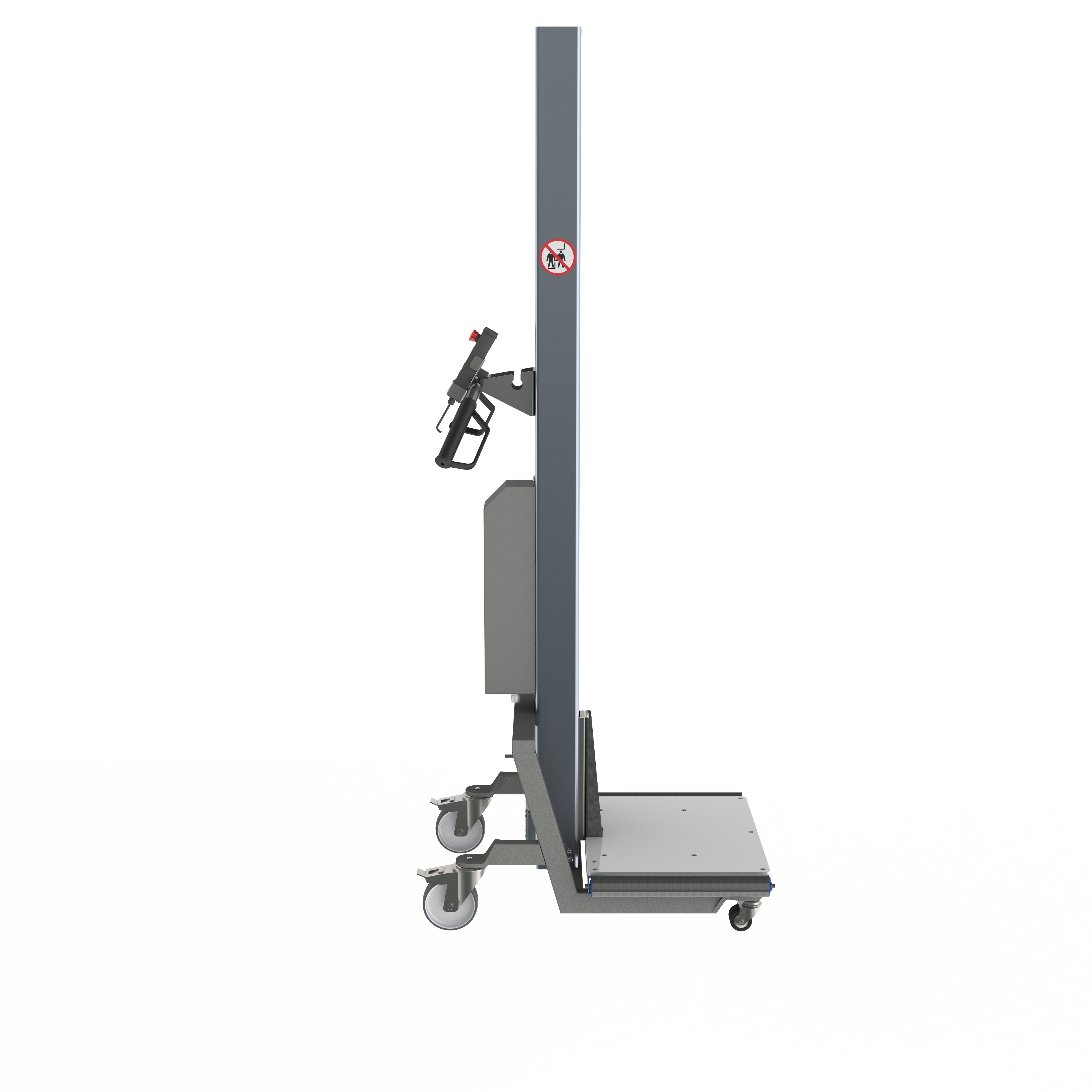

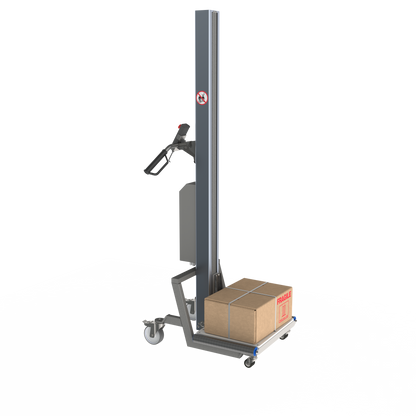

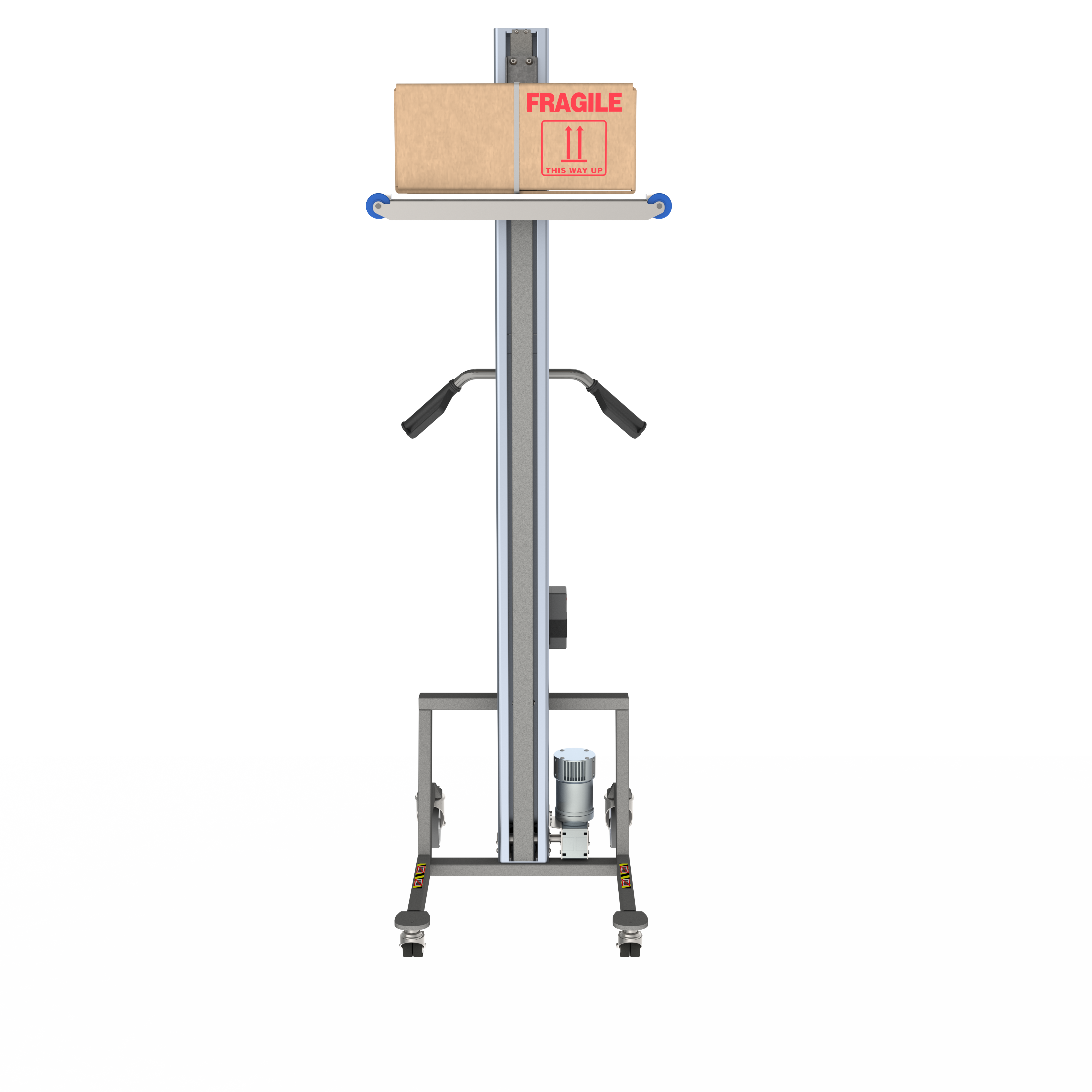

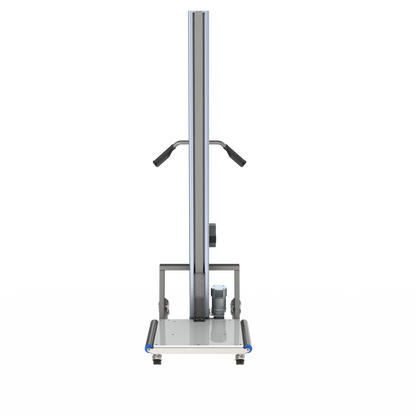

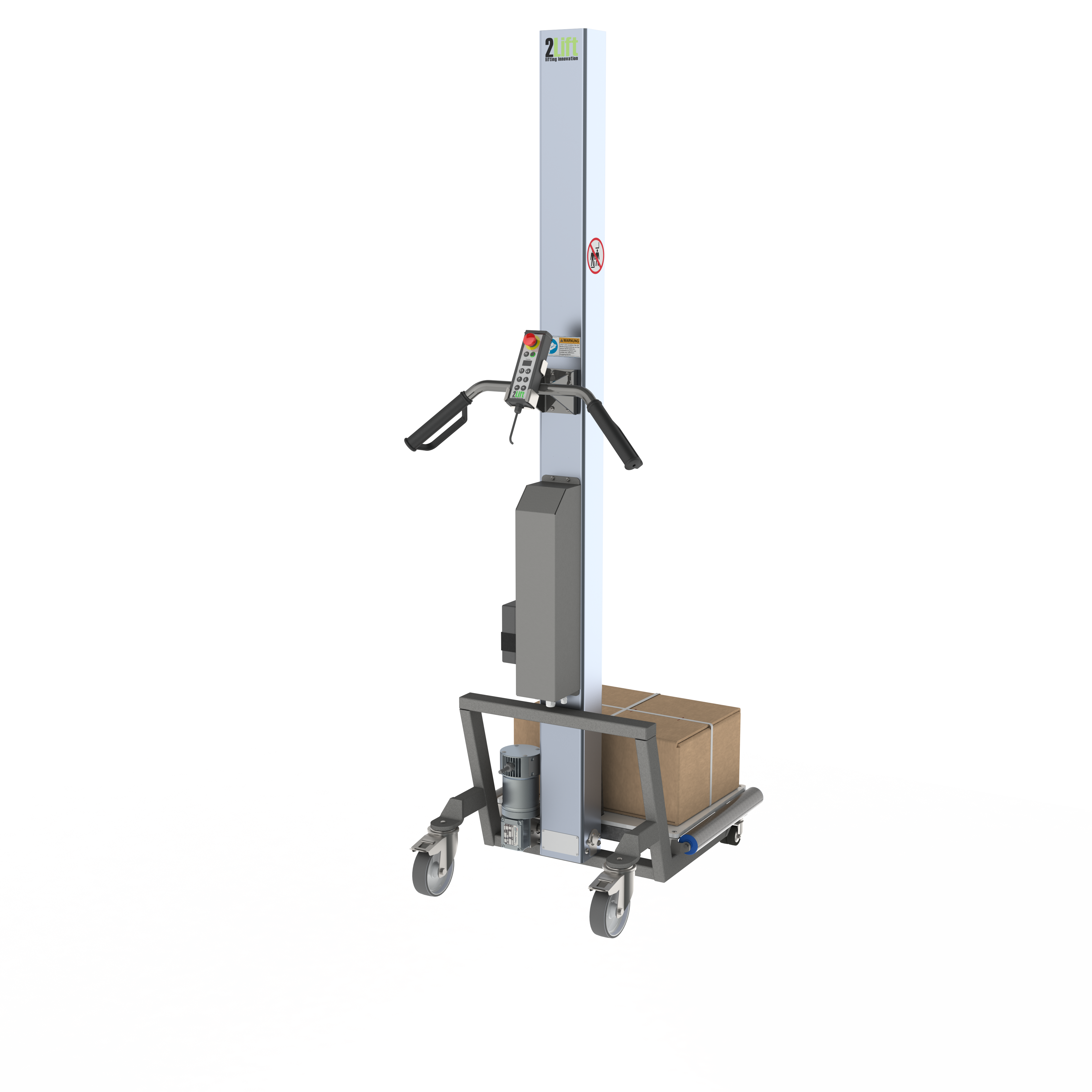

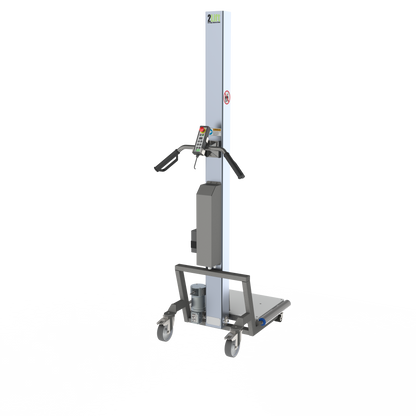

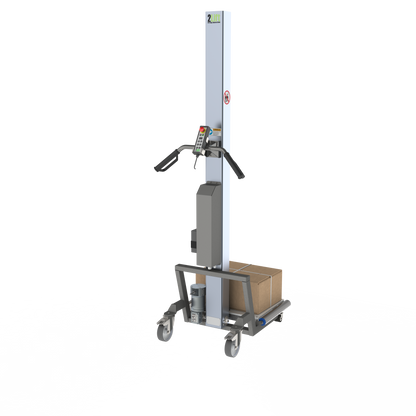

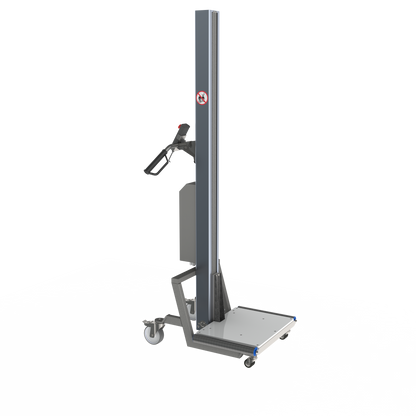

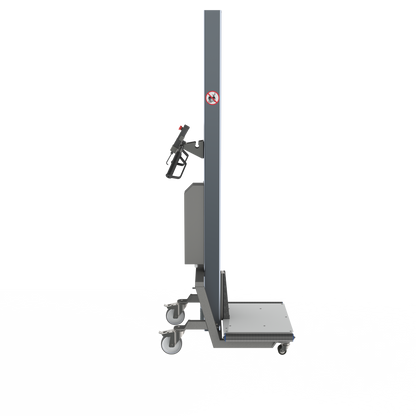

Electric Lifter with Plastic Platform with Rollers (B-PPR)

Electric lift made of anodized aluminum, classified with IP31 dust and water protection, featuring a robust motor manufactured in Europe.

The electric lifting process is controlled via a push button on the remote control, which features a display for easy operation. Lifting speed can be adjusted using a control knob, offering two speeds: a normal speed of approximately 130 mm/sec and a reduced speed preset on the remote, ranging between 10-50% of the maximum speed. For enhanced safety, an emergency stop button is located on the remote. Its low weight and compact dimensions make it suitable for use in limited workspace areas.

The remote control is ruggedly built from anodized aluminum and connected by a high-quality PU spiral cable, ensuring easy one-handed operation. An ergonomic handle is included to allow various gripping positions, enhancing user comfort.

The lift is equipped with a self-locking gear system (worm gear), which automatically stops the lift in case of an electrical fault. Additionally, a safety slip clutch (single direction clutch) prevents the lift from raising itself or tipping backward during downward movement, ensuring safe operation.

The system is battery-powered but can also be permanently connected to mains power (power supply: 110-230 V AC) for continuous operation. It features an intelligent external battery charger (24V, 3.5A) that ensures long battery life through on-demand charging. A built-in LED display indicates the current battery charge level for convenient monitoring.

The system features a low-maintenance AT-10 timing belt and a highly durable solid-state DC control for reliable operation. It is equipped with wear-resistant parts, including wheels and maintenance-free standard batteries that are designed without memory effect, ensuring long-lasting performance.
