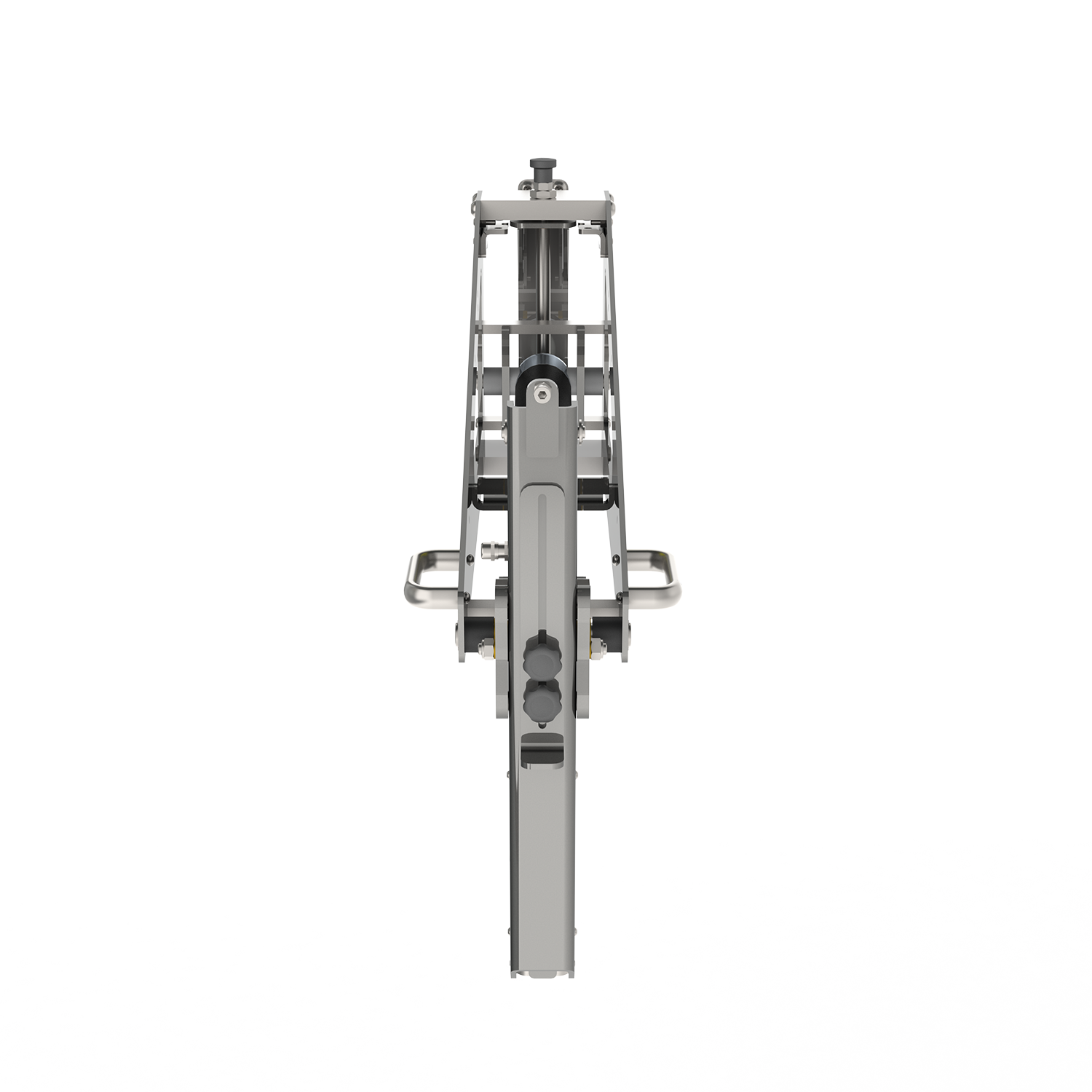

Electric Roll Manipulator (ERM)
Electric Roll Manipulator (ERM)
Electric Roll Manipulator (ERM)
Electric Roll Manipulator (ERM)
Electric Roll Manipulator (ERM)
Electric

Electric remote control

Motion

To be mounted directly on the lifting tower

Tipping

Tipping capacity 90 Degrees

IP65

Dust tight and protected against water jets.

Durable

Stainless Steel

IP31

Dust tight and protected against water jets and condensation.

Electric Roll Manipulator (ERM)

The ERM easily and safely lifts, transports, and tilts heavy rolls from vertical to horizontal positions. Fully electrically controlled with a remote, it is ideal for confined spaces.

Powerful actuator = High tilting capacity
Capacity depends on the roll’s length and weight, assessed via the diagram. The roll can be tilted if the point lies below the diagram line.

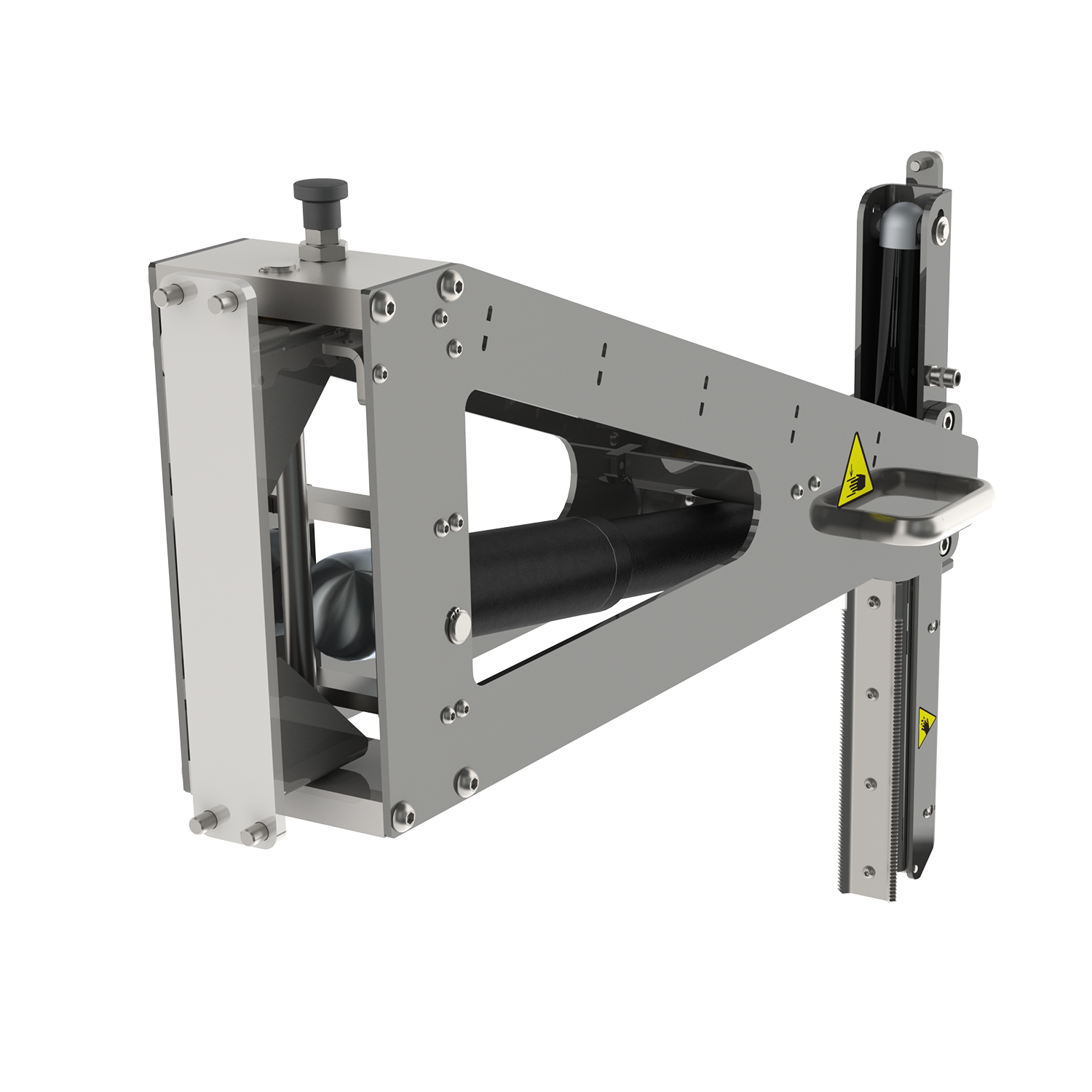

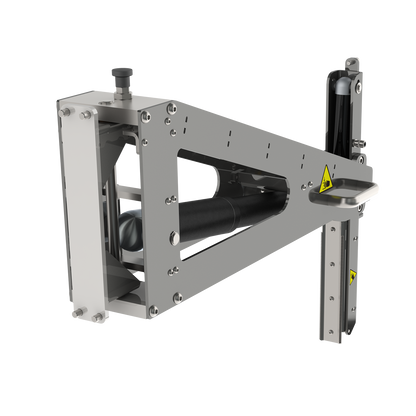

Swivel unit simplifies positioning
The ERM’s rear swivel makes it easy to position the expander. The maximum angle can be adjusted with two screws (longer screws result in smaller angles).

Secure grip for safety
An adjustable stop plate ensures proper gripping and positioning, with a green light indicating secure hold.

Compatible with various core sizes
Standard ERM has a ±3 mm tolerance, which can be further adjusted with shims or extra gripping teeth for variations.

The images on this page change based on the type of lifter you select below.

Get a quote for a personalized lift

Configure your lift, fill in your information - then one of our experts will get back to you with a personalized quote.

Datasheets

Electric

Electric remote control

Motion

To be mounted directly on the lifting tower

Tipping

Tipping capacity 90 Degrees

IP65

Dust tight and protected against water jets.

Durable

Stainless Steel

IP31

Dust tight and protected against water jets and condensation.

Product details

Powerful Electric Tilting Actuator

High-capacity, electrically driven actuator delivers smooth, controlled tilting up to 90° for heavy rolls (81–8100 N), ensuring reliable performance in confined spaces.

Remote-Controlled Operation

Battery-powered with wired/wireless remote options for safe, single-operator lift, transport and tilt without manual handling.

Precision Core Gripping

Adjustable expander and stop plate with visual green-lock indicator provide secure, repeatable grip for 3" or 6" cores (±3 mm tolerance).

Wide Core Compatibility

Standard ±3 mm tolerance with optional spacer plates, extra gripping teeth or grabbing tines (ø76/ø152 mm) to handle varied core materials and sizes.

Robust Safety Systems

Electronic overload protection, optional anti-telescoping safety (up to ø1200 mm), and middle-position lock for secure transport and handling.

Space-Saving Swivel Unit

Manual rear swivel with adjustable maximum angle (via screws) simplifies precise positioning in narrow aisles and tight production lines.

Hygienic & Cleanroom Versions

Compact L834 × W238 × H620 mm design (34 kg) mounts on most 2LIFT lifters (except B and C Lines), enabling easy integration into existing material handling fleets.

Universal Lift Compatibility

Compact L834 × W238 × H620 mm design (34 kg) mounts on most 2LIFT lifters (except B and C Lines), enabling easy integration into existing material handling fleets.

Smooth, Continuous Motion

High-gearing tilting mechanism and continuous-stop control provide vibration-free, controlled transitions that protect roll integrity and core material.

Durable Industrial Construction

Heavy-duty steel or stainless-steel build, IP31/65 protection options, and customizable length for long service life in demanding industrial environments.
Load video:

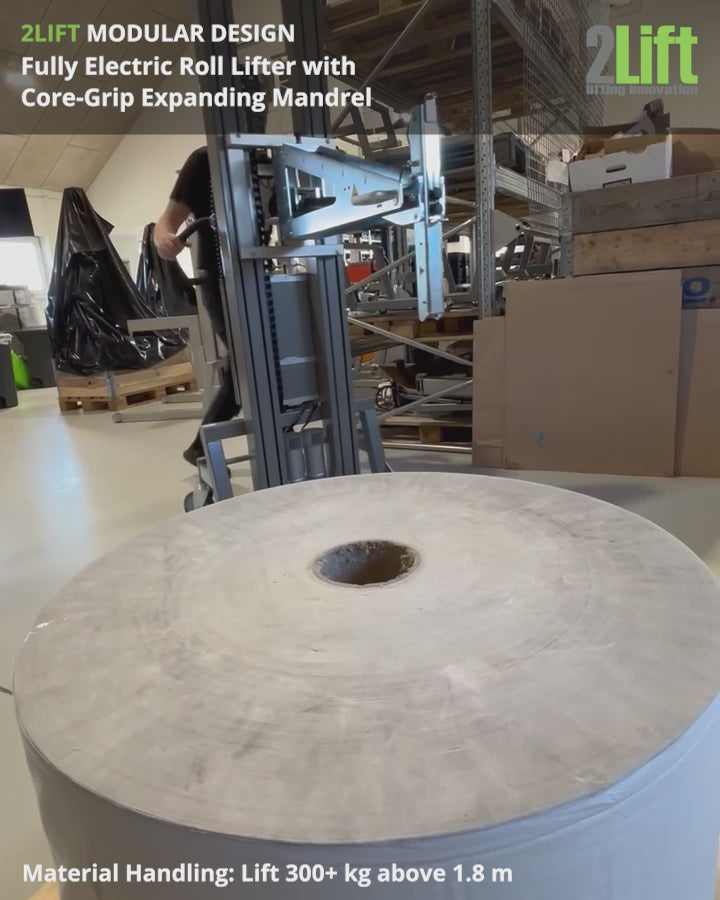

Efficient. Safe. Electric — Meet the ERM Roll Manipulator that Lifts and Tilts with Precision

Introducing the Electric Roll Manipulator (ERM) — a reliable, fully electric solution for safely lifting, transporting, and tilting rolls by the core. The ERM is designed for repeated, secure operation in confined spaces and combines a core-expanding grip with a powerful electric tilting actuator and electronic overload protection to minimize manual handling.

The unit features a visual lock indicator and can be adapted for 3" and 6" cores (±3 mm tolerance, with spacer plates or accessories for larger variations), delivers smooth tilting up to 90° with continuous-stop control, and includes a manual rear swivel for easy positioning.

Hygienic/cleanroom versions and an optional anti-telescoping safety feature are available for sensitive applications. The ERM is battery-powered with remote control and compatible with most 2-lifters, making integration into existing material handling environments straightforward.
