Heavy-Duty Electric Stainless Steel Lifter – 300 kg Load Capacity (SN)

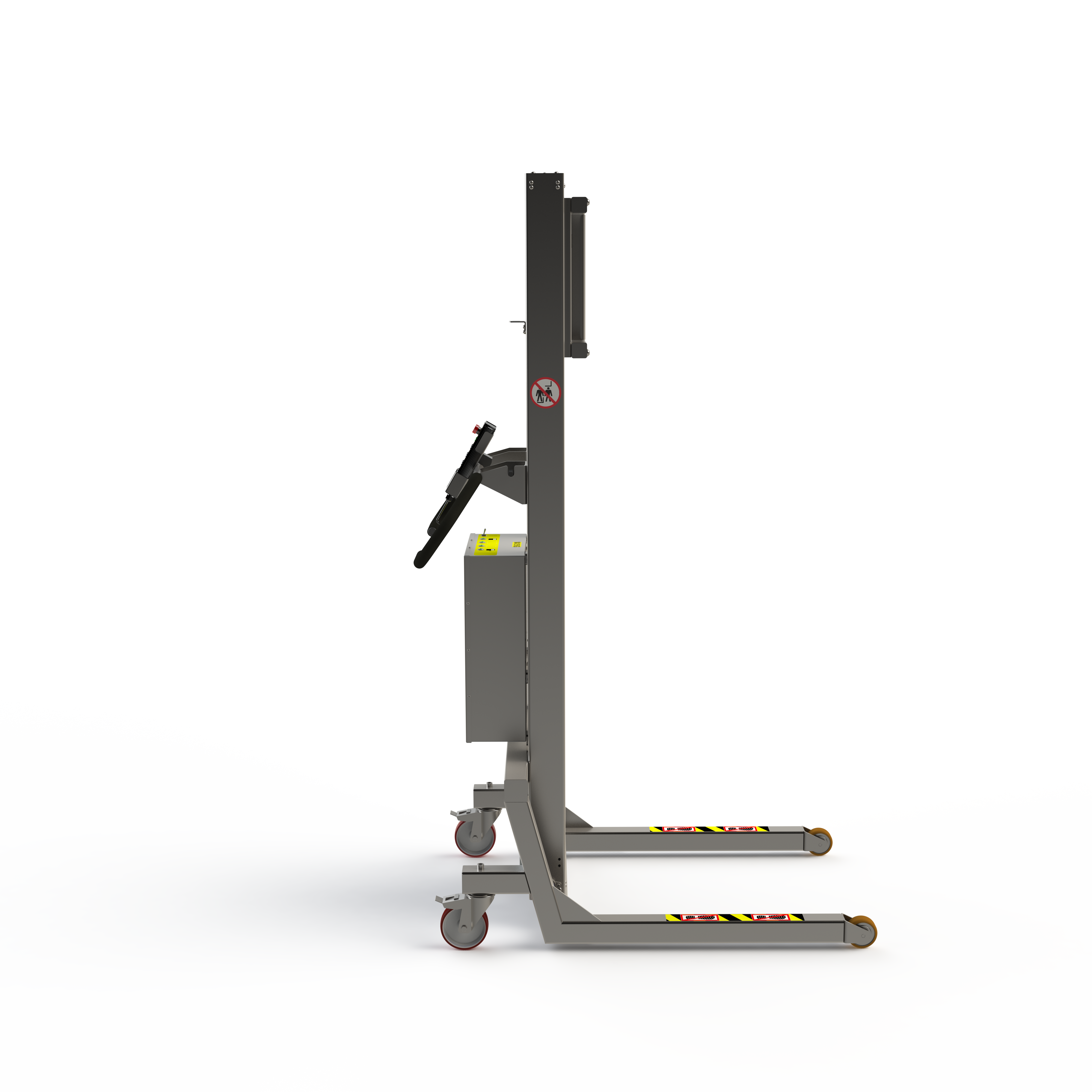

Introducing the 300 kg Electric Heavy-Duty Stainless Steel Lifter (SN), specifically designed for demanding environments in various industries.

Heavy-Duty Construction: Made from high-quality stainless steel (AISI 304), ensuring durability and performance in rigorous industrial applications.

Exceptional Lifting Capacity: Capable of supporting loads up to 300 kg, ideal for heavy lifting tasks across manufacturing, warehousing, and more.

Robust and Durable: Engineered for intensive and continuous use, built to last even under tough conditions.

Hygienic Design: Designed to protect against dust and dripping water, ensuring reliable operation in various environments. All major external components, except the wheels, are made of stainless steel with a sandblasted surface, promoting easy cleaning and compliance with hygiene standards.

Why Choose the SN Lifter?
Choosing the SN Lifter means investing in a reliable, efficient lifting solution tailored to the specific needs of demanding industrial environments. Its robust construction and hygienic, protective design ensure optimal performance.

Contact Us
Don’t miss the opportunity to enhance your lifting operations! Contact us today to learn more about the 300 kg Electric Heavy-Duty Stainless Steel Lifter (SN) and how it can elevate productivity and safety in your workplace.

The images on this page change based on the height you select below.
?

Maximum height

Get a quote for a personalized lift

Configure your lift, fill in your information - then one of our experts will get back to you with a personalized quote.

Datasheets

Durable

Stainless Steel

IP31

Dust tight and protected against water jets and condensation.

Compact

Designed for industrial use

Tilt Secure

Prevents the lift from raising itself and tipping

Motion

To be mounted directly on the lifting tower

Electric

Electric remote control

Product details

SN-Line Lift Construction

Major external parts: fully stainless steel (AISI 304); glass bead blasted surface; 1.6 Ra. Dust and water protection class IP31, hygienic - easy to clean. Wheel mount and internal mast parts: aluminium/galvanized. Dimensions adaptable to your needs

Safety

Self-locking gear system (worm gear): In case of an electrical failure, the mechanical system will automatically bring the lift to an immediate stop. Safety slip clutch (one-way safety clutch): Prevents the lift from lifting itself and tipping backward during downward movement.

Handling

Electric lifting process controlled via a toggle switch; lifting speed can be adjusted via the adjustment knob
Two lifting speeds: Normal (approx. 130 mm/s) and reduced speed, preset to e.g. 30%. The slow speed can be adjusted in the control box on the lift.

Lightweight and compact dimensions suitable for use where the working area is limited.

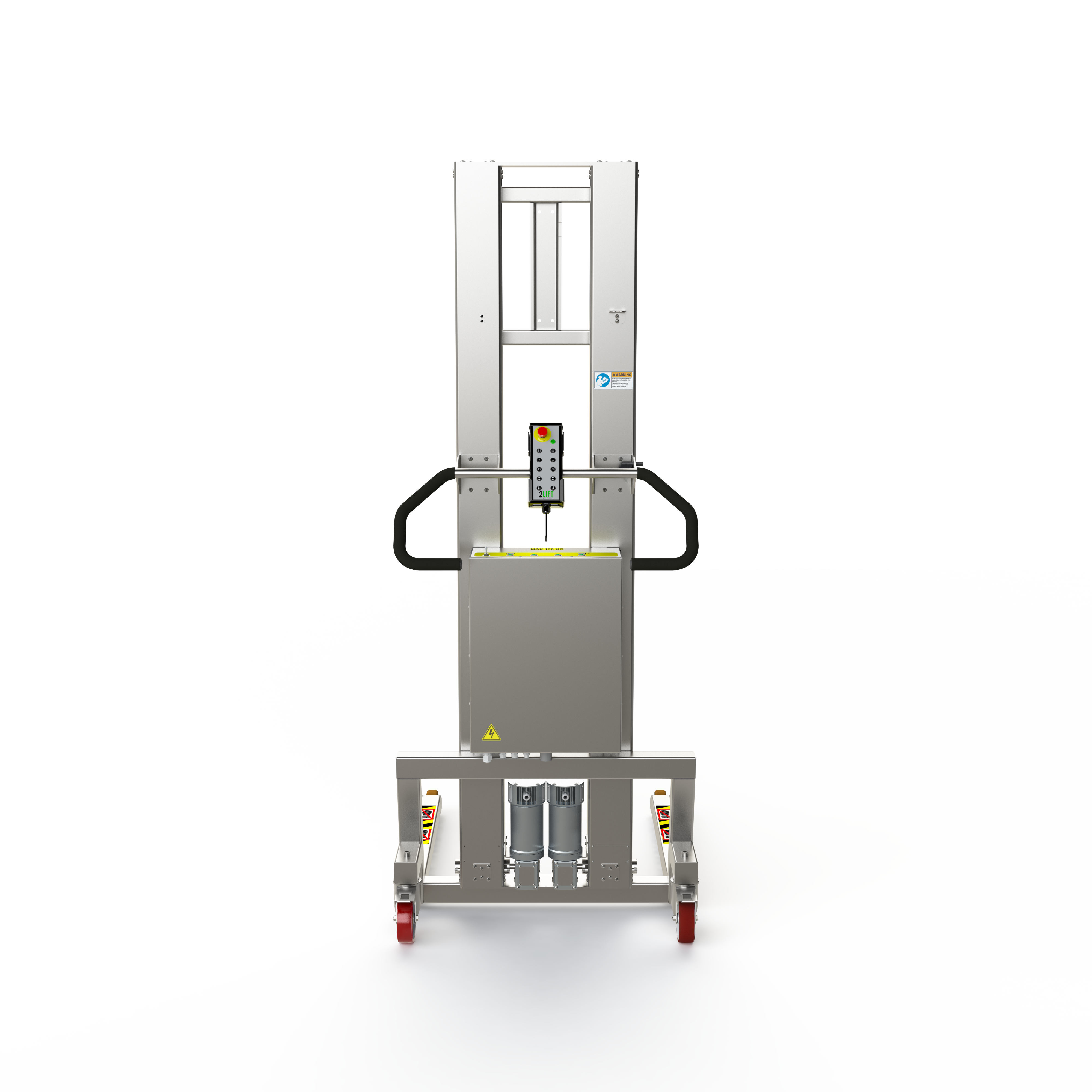

Robust 4-button remote control in metal with adjustable slow-remote function and high-quality PU spiral cable, making it easy to operate the lift with one hand. Ergonomic handle that allows for various grip positions

Power Supply

Battery-powered. Can be permanently connected to power (Power supply: 110-230 V AC). Intelligent external battery charger - 24V 3.5A. Ensures long battery life through on-demand charging. Integrated LED display shows battery charge status.

Maintenance

AT-10 timing belt with low maintenance. Very durable Solid-State PLC. Wear-resistant parts (Wheels and maintenance-free standard batteries without memory effect)

Tool Modules

Adjustable fork for handling different box sizes
Adjustable mandrel for lifting rolls with a horizontal core direction
Electric box tipper
Edge gripper with support for pressure-sensitive barrels
Neck gripper for pressure-sensitive barrels/rolls
Double mandrel for lifting rolls without passing through the core
Electric scissor gripper with soft rubber for barrels/boxes of 300-600 mm diameter

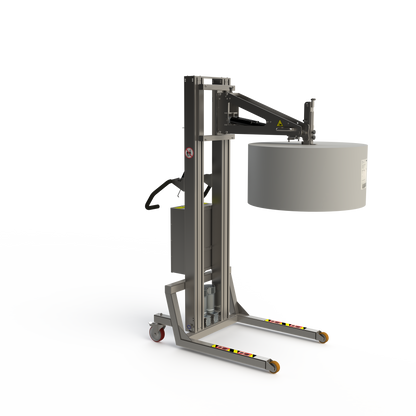

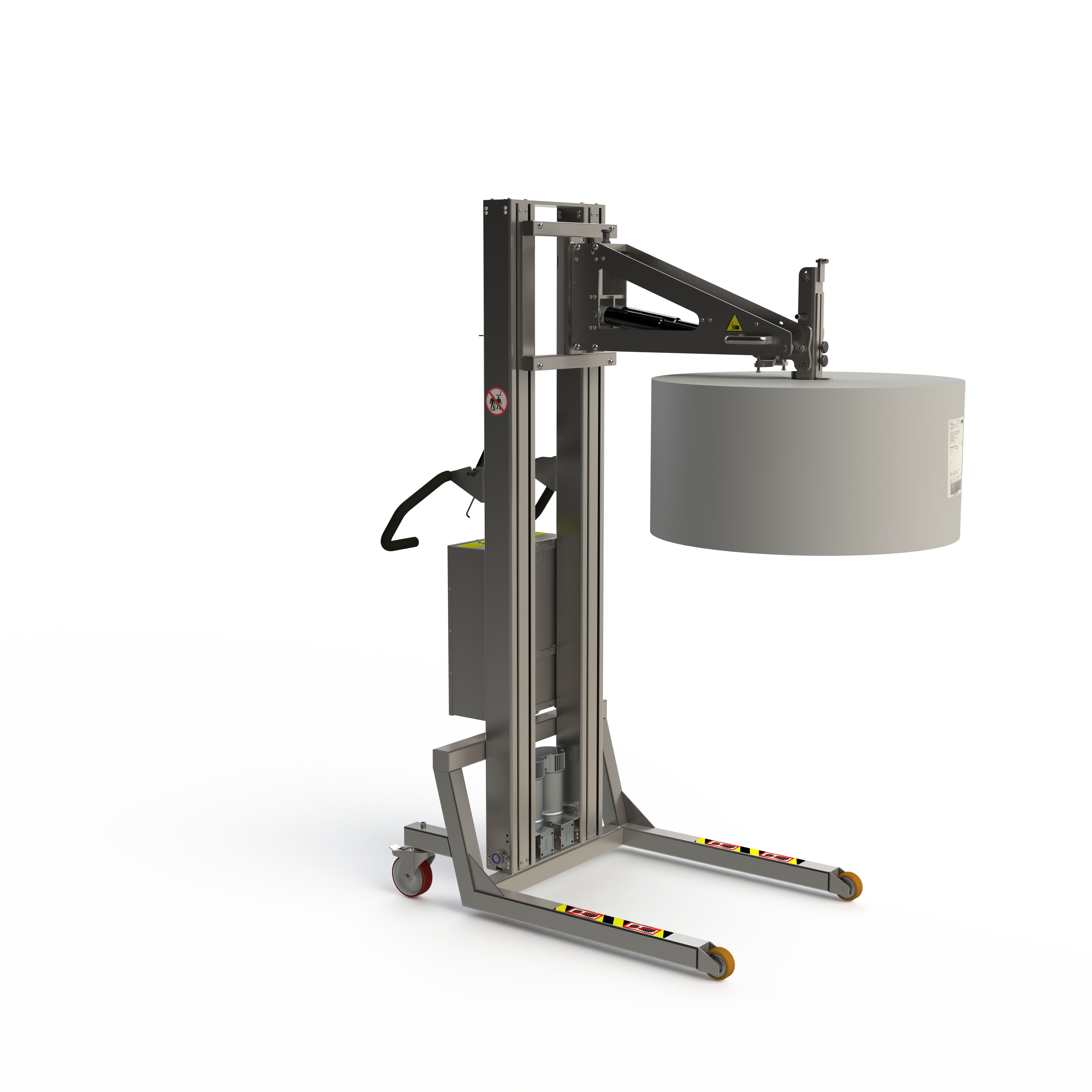

Electric roll manipulator
Electric double fork with electric 180º rotation in both directions
Electric double pin gripper with electric 180º rotation in both directions

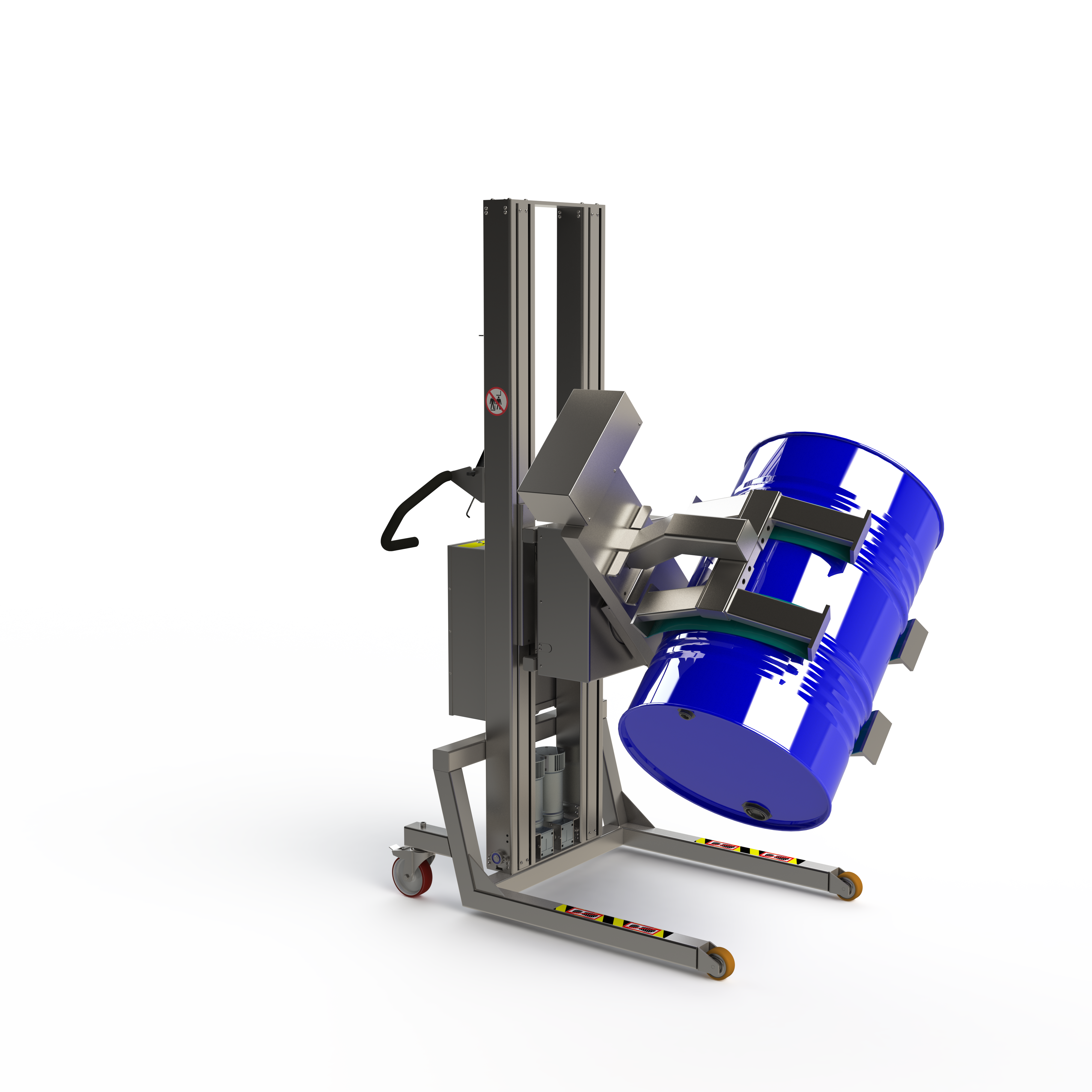

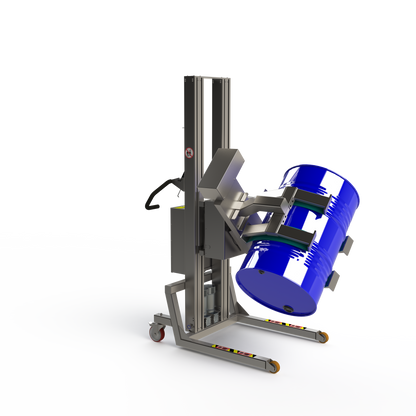

Electric 360º rotation unit with electric scissor gripper with soft rubber for items
between 300-600 mm diameter
Electric 360º rotation unit with fork gripper for alternative box dimensions
Barrel gripper with protective base plate for pressure-sensitive barrels/drums.
Can rotate 90º in each direction

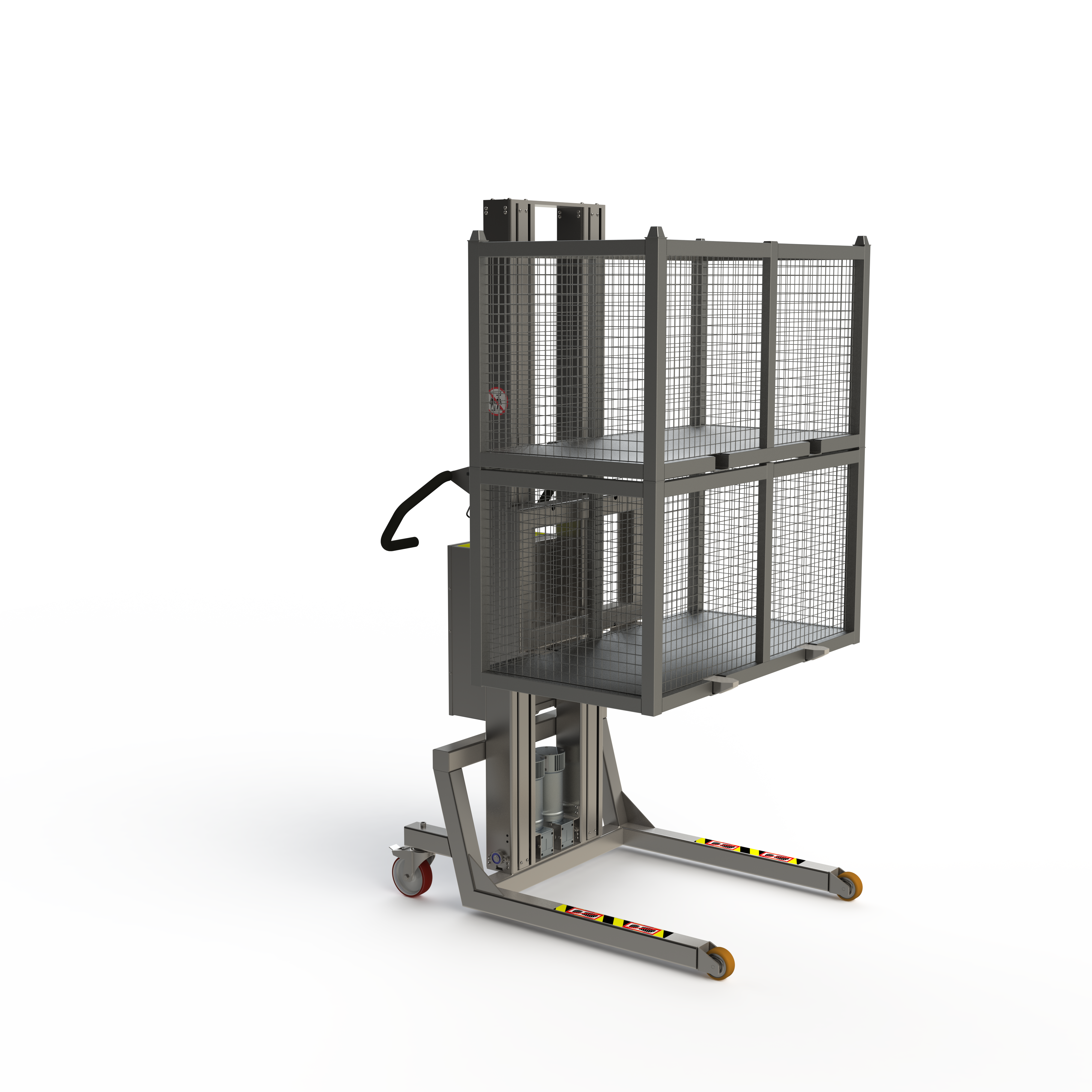

Fork for lifting a box of a given size
Fork with notch for lifting rolls through the core
Fork with self-locking edge gripper, ideal for metal boxes
Mandrel for lifting rolls with a horizontal core direction
Manual clamp
Metal platform without (MP)/with edge rollers (MPR), with edges (MPE)
Manual roll manipulator
Nylon platform
Mandrel with rollers and brake for lifting rolls with a horizontally remaining core
Manual clamp with manual rotation
V-block for rolling/tipping rolls. Can be manually rotated so the roll can be lifted via the core

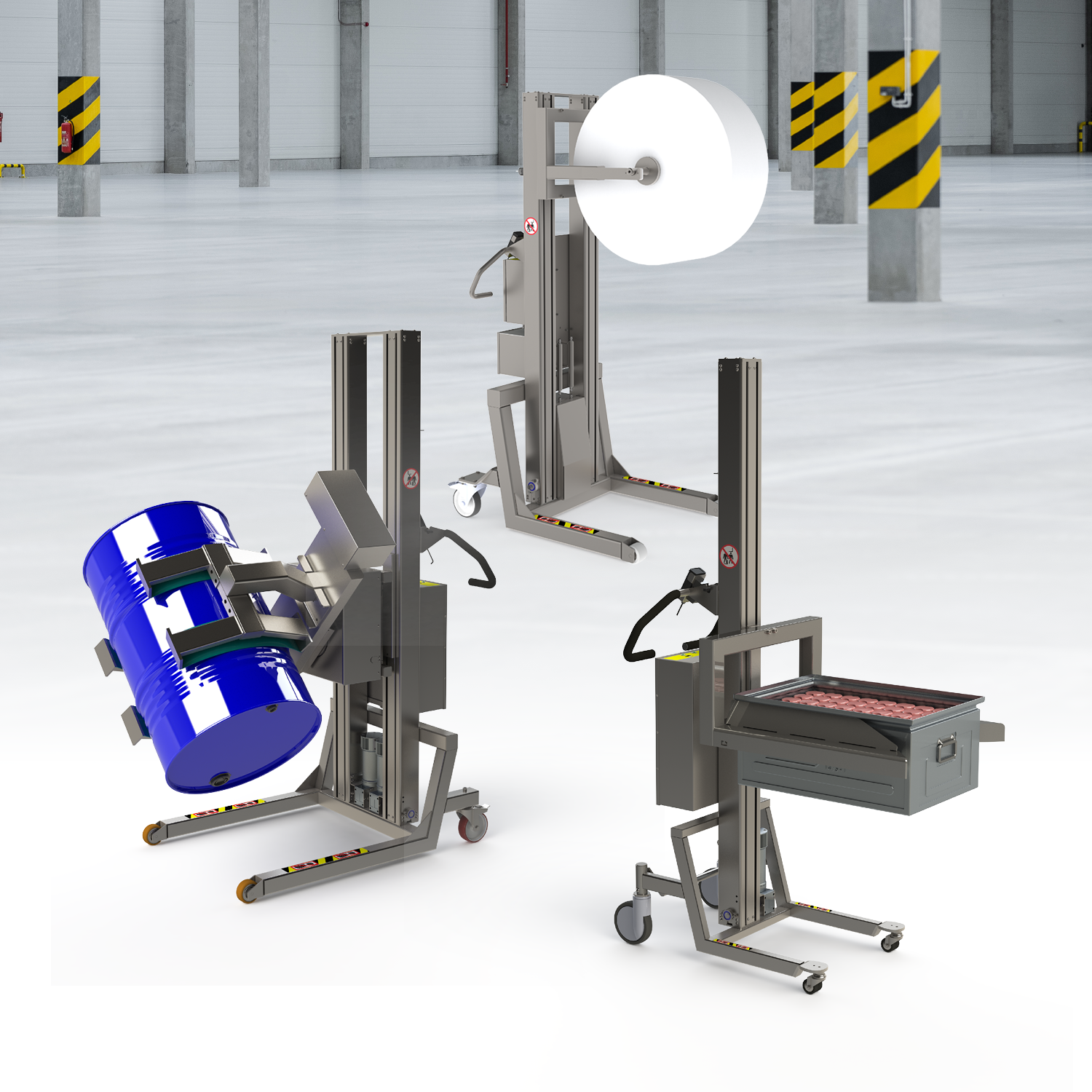

Effektiv Løfteteknologi til Kontrollerede Miljøer – Oplev SN-Liftserien

SN-liften er den ideelle løsning til klasse D renrum og andre miljøer med medium-høje krav til renlighed, såsom pharma, fødevare-, kosmetik- og halvlederindustrien. Vores elektriske materialehejs er designet til at håndtere lasttransport af produktionsudstyr og beholdere med ingredienser, hvilket gør dem uundgåelige i krævende anvendelser.

Med robuste komponenter i rustfrit stål (AISI 304), kombineret med en vandtæt klassificering på IP31, er SN-liften perfekt til opgaver, hvor høje hygiejnestandarder er nødvendige, men ikke de allerstørste renrumsprotokoller. Dette gør dem velegnede til at løfte og transportere tromler, ruller, kasser og specialudstyr uden den ekstra kompleksitet af IP65-krav eller 316L materialer.

Uanset behovet for effektivitet og pålidelighed, tilbyder SN-linjen en enkel og effektiv løfteløsning til en række industriapplikationer. Udforsk fordelene med SN-liften i dag og optimer dine arbejdsprocesser!
