Product details

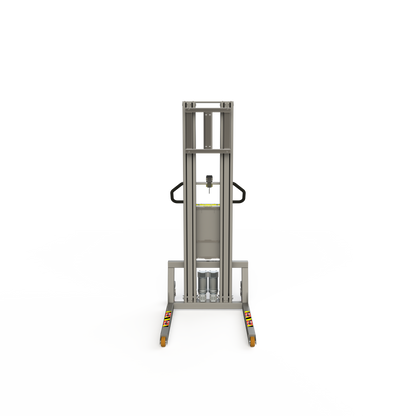

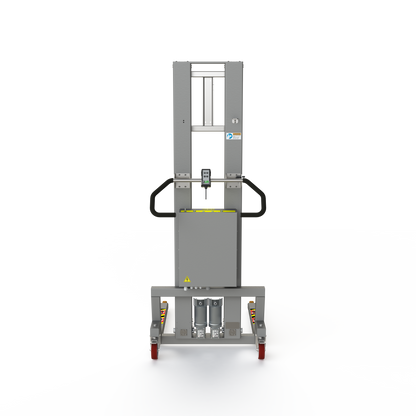

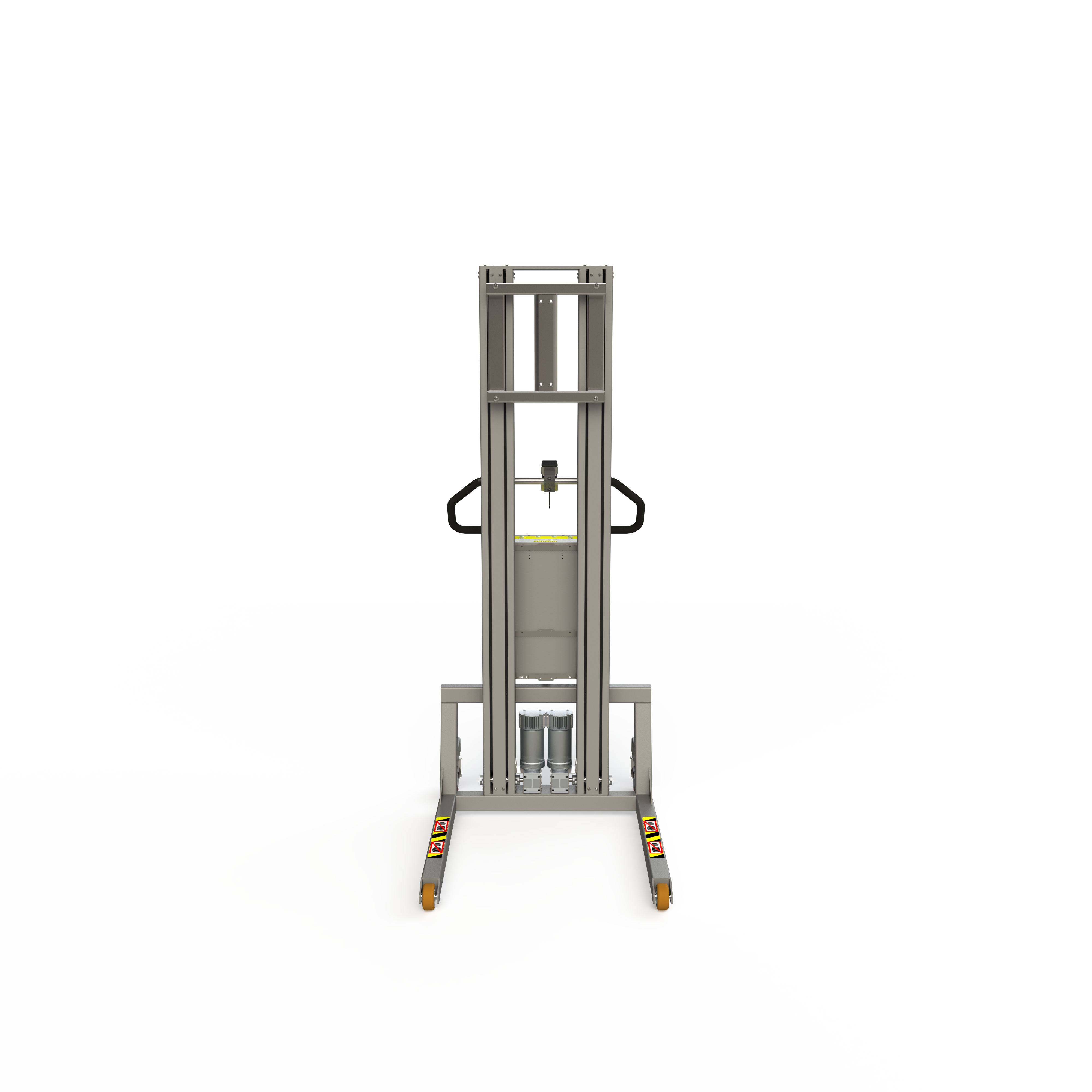

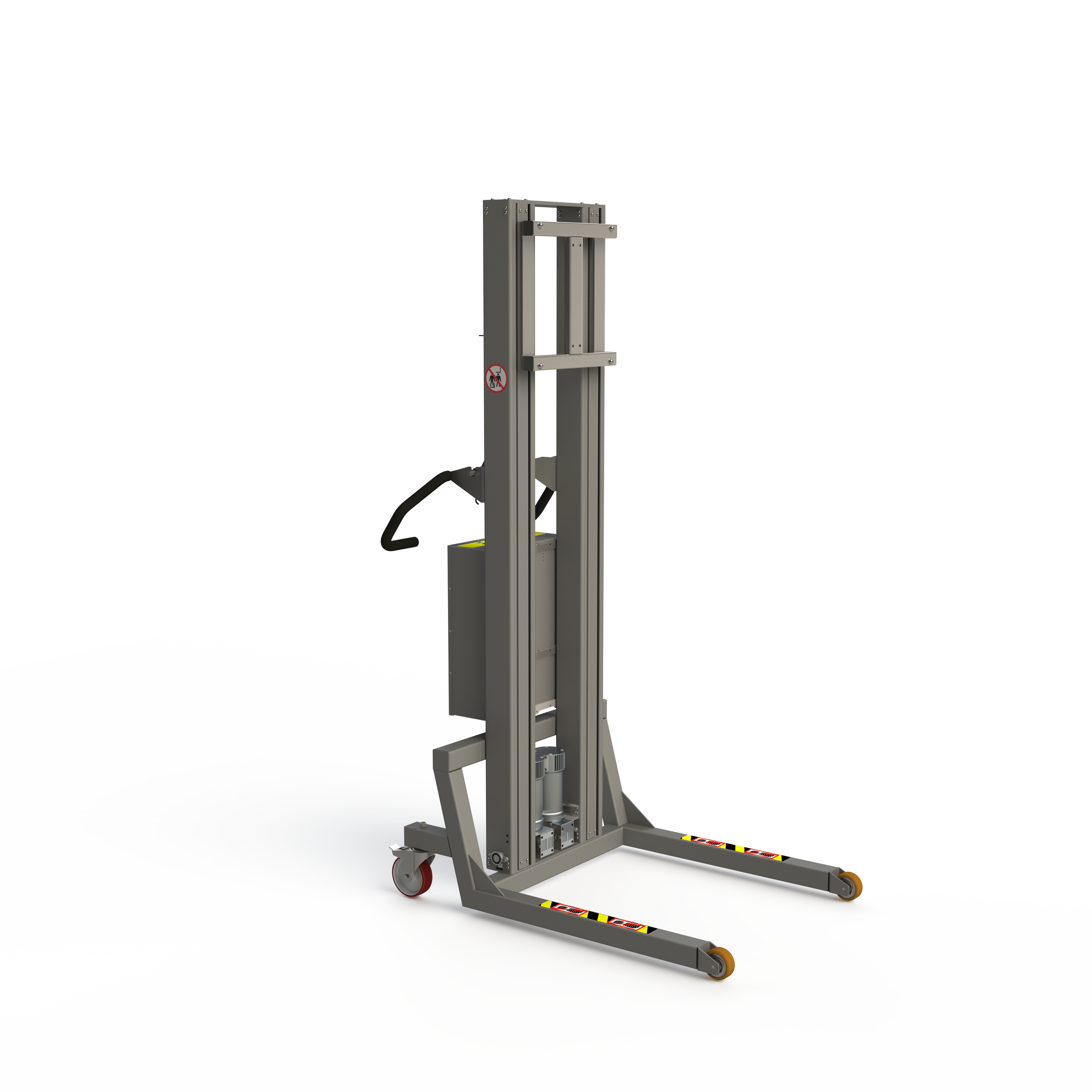

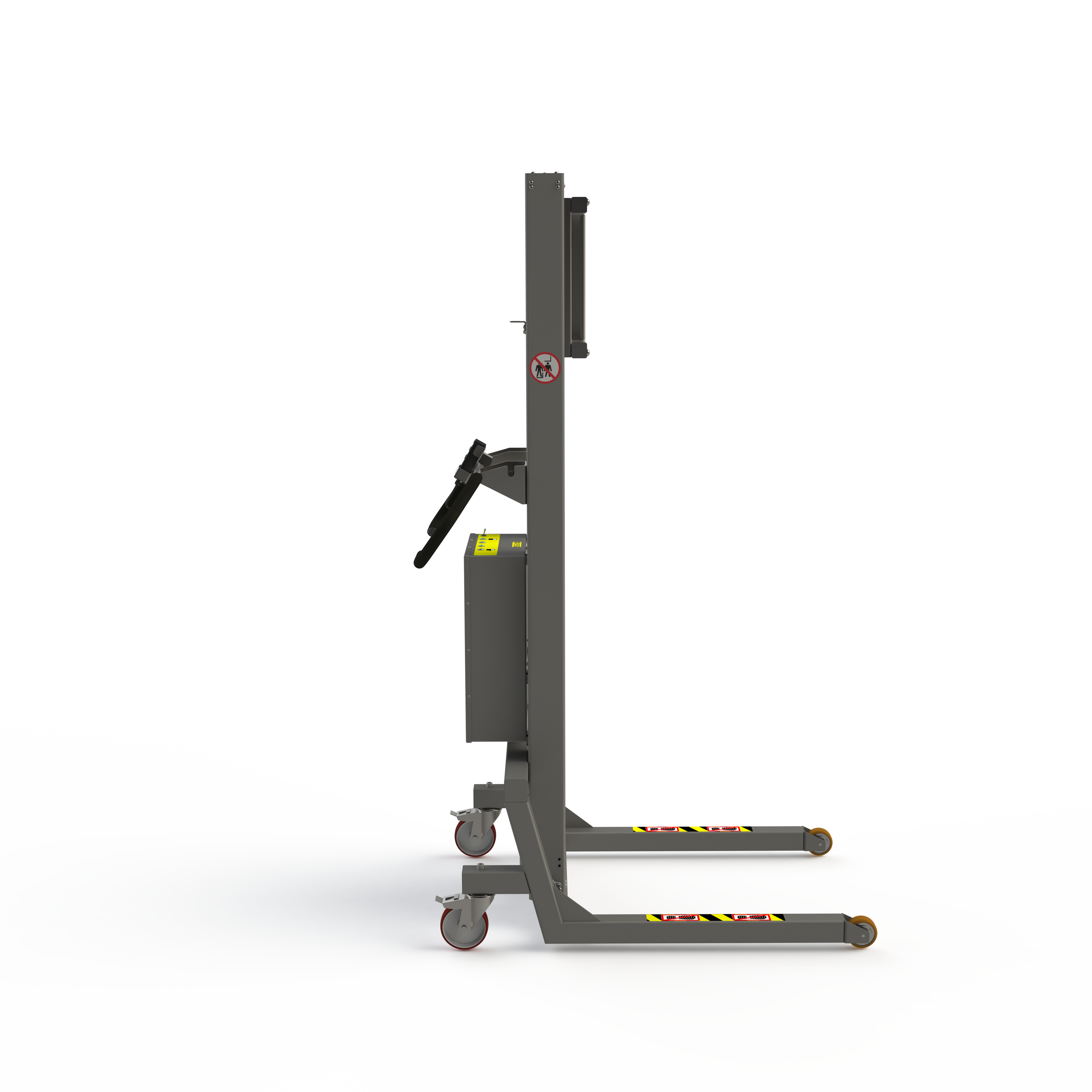

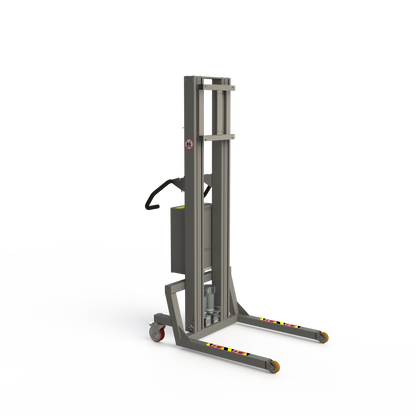

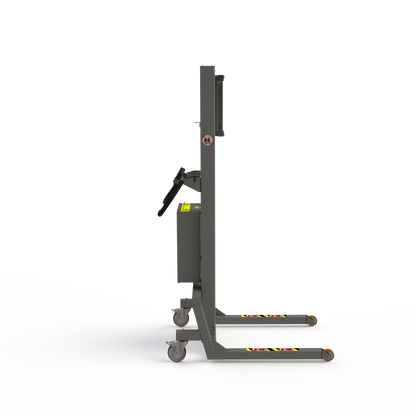

N-Line Lift Construction

Powder-coated steel. Dust and water protection class IP31, hygienic - easy to clean. Dimensions adaptable to customers needs.

Safety

Self-locking gear system (worm gear): In case of an electrical failure, the mechanical system will automatically bring the lift to an immediate stop. Safety slip clutch (one-way safety clutch): Prevents the lift from lifting itself and tipping backward during downward movement.

Handling

Electric lifting process controlled via a toggle switch; lifting speed can be adjusted via the adjustment knob
Two lifting speeds: Normal (approx. 130 mm/s) and reduced speed, preset to e.g. 30%. The slow speed can be adjusted in the control box on the lift.

Lightweight and compact dimensions suitable for use where the working area is limited.

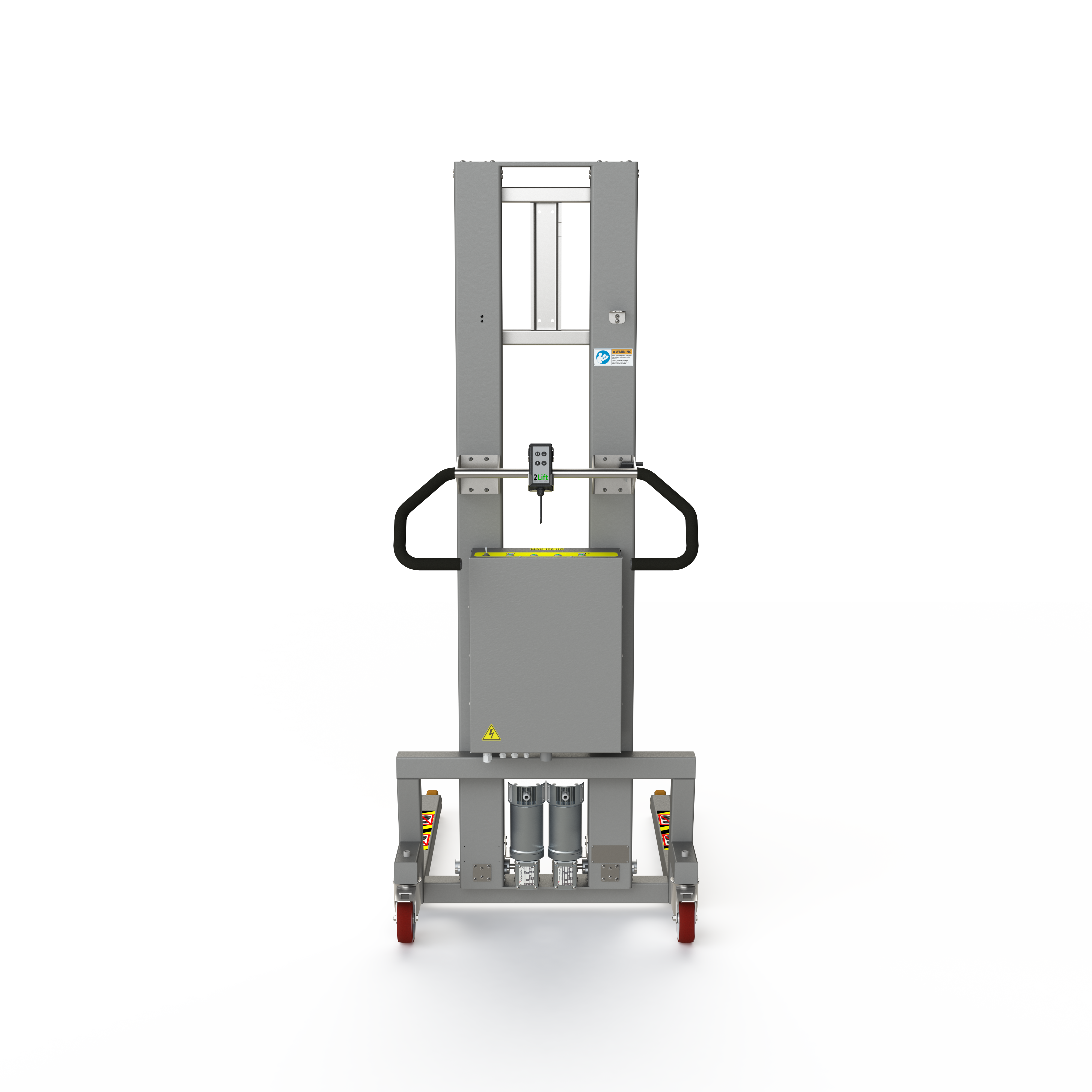

Robust 4-button remote control in metal with adjustable slow-remote function and high-quality PU spiral cable, making it easy to operate the lift with one hand. Ergonomic handle that allows for various grip positions

Power Supply

Battery-powered. Can be permanently connected to power (Power supply: 110-230 V AC). Intelligent external battery charger - 24V 3.5A. Ensures long battery life through on-demand charging. Integrated LED display shows battery charge status.

Maintenance

AT-10 timing belt with low maintenance. Very durable Solid-State PLC. Wear-resistant parts (Wheels and maintenance-free standard batteries without memory effect).

Tool Modules

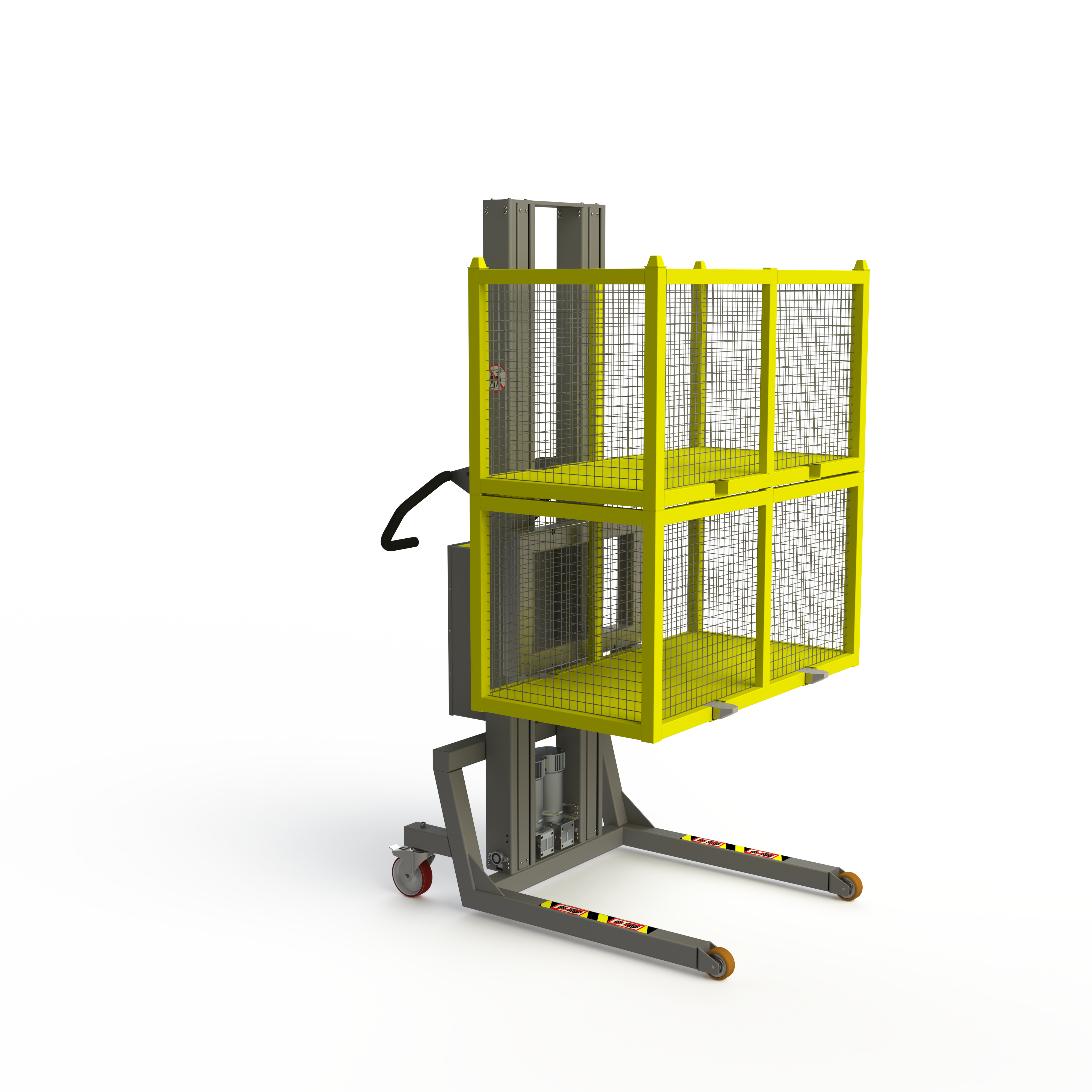

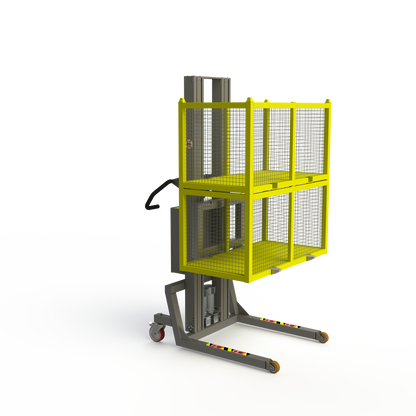

Adjustable fork for handling different box sizes
Adjustable mandrel for lifting rolls with a horizontal core direction
Electric box tipper
Edge gripper with support for pressure-sensitive barrels
Neck gripper for pressure-sensitive barrels/rolls
Double mandrel for lifting rolls without passing through the core
Electric scissor gripper with soft rubber for barrels/boxes of 300-600 mm diameter
Electric roll manipulator
Electric double fork with electric 180º rotation in both directions
Electric double pin gripper with electric 180º rotation in both directions
Electric 360º rotation unit with electric scissor gripper with soft rubber for items
between 300-600 mm diameter
Electric 360º rotation unit with fork gripper for alternative box dimensions

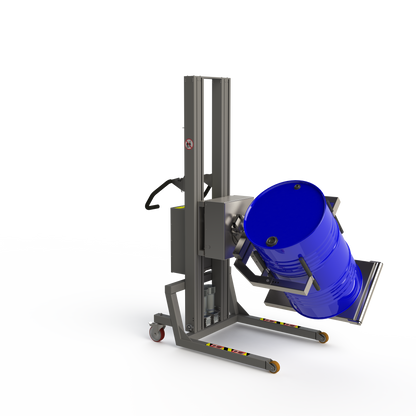

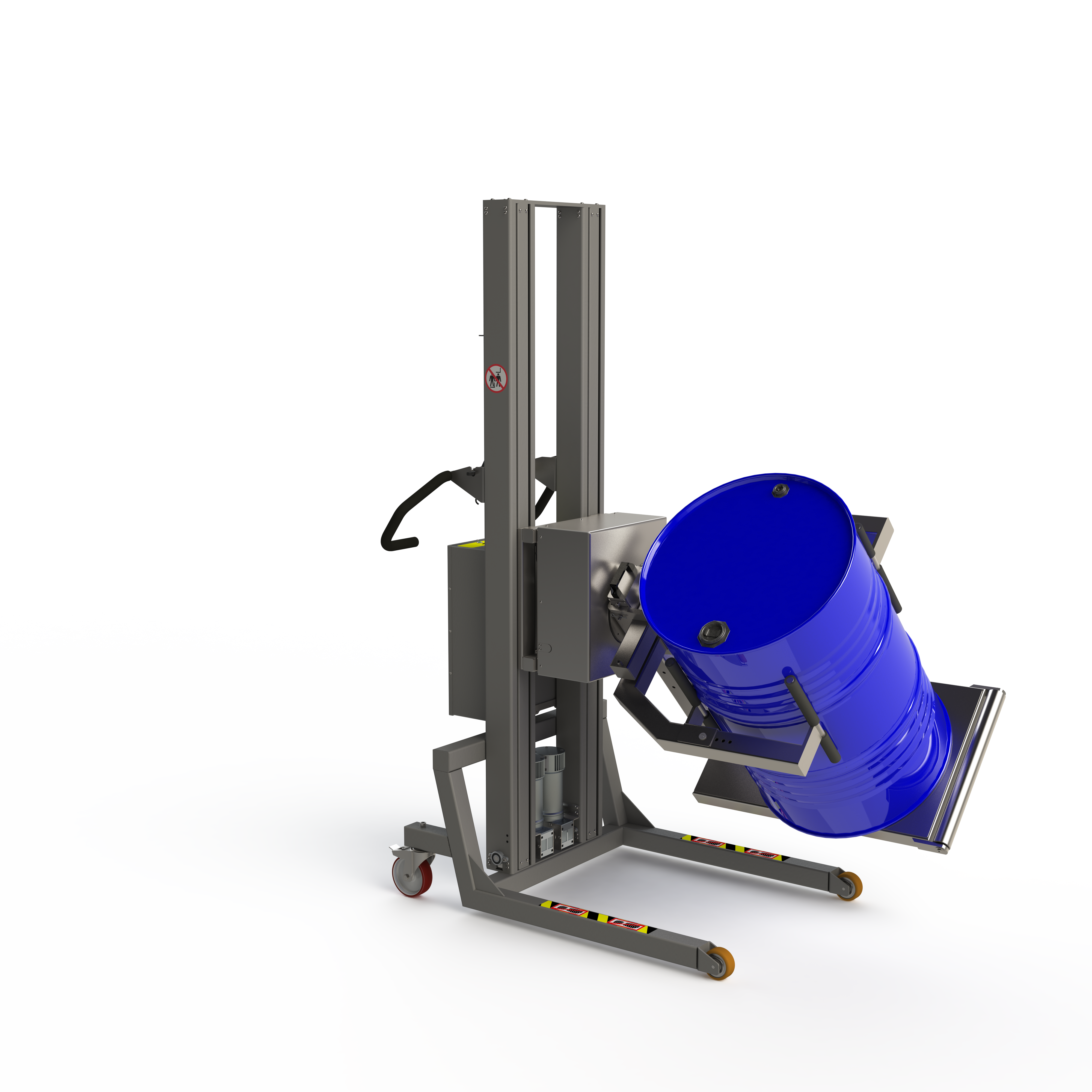

Barrel gripper with protective base plate for pressure-sensitive barrels/drums.
Can rotate 90º in each direction
Fork for lifting a box of a given size
Fork with notch for lifting rolls through the core
Fork with self-locking edge gripper, ideal for metal boxes
Mandrel for lifting rolls with a horizontal core direction
Manual clamp
Metal platform without (MP)/with edge rollers (MPR), with edges (MPE)
Manual roll manipulator
Nylon platform
Mandrel with rollers and brake for lifting rolls with a horizontally remaining core
Manual clamp with manual rotation

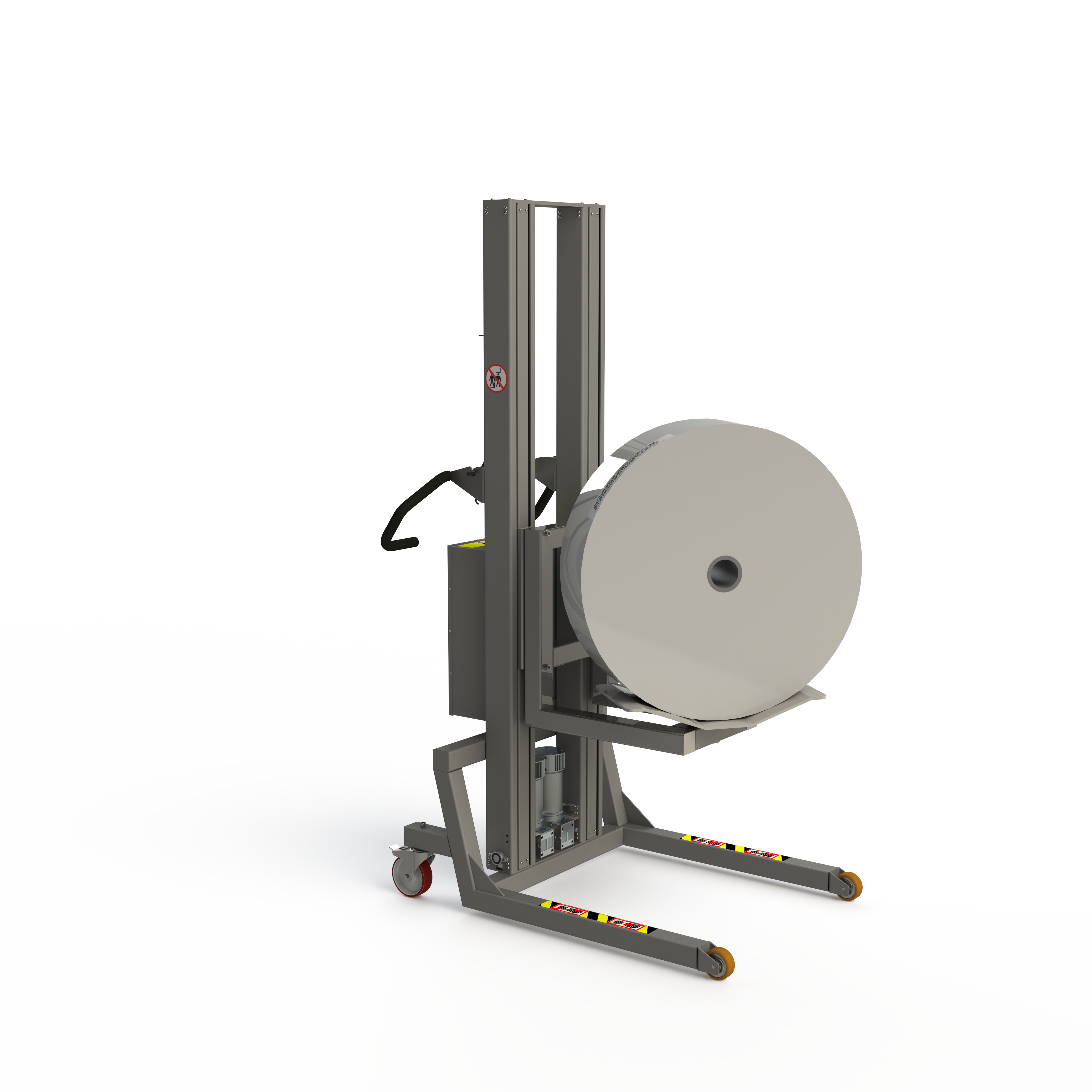

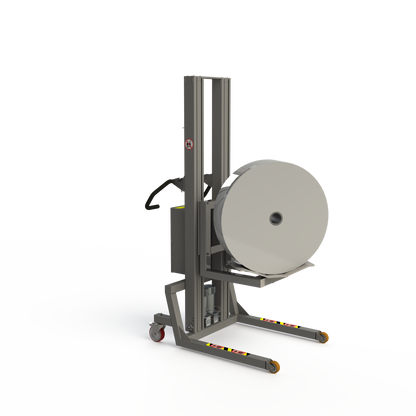

V-block for rolling/tipping rolls. Can be manually rotated so the roll can be lifted via the core

N-line Lifter: Strength Meets Durability

Unlock the power of efficiency with our N-line lifter, expertly crafted from high-quality powder-coated steel. This lightweight yet robust lifter is designed to excel in various environments, thanks to its remarkable battery capacity that ensures prolonged operation without interruption.

The N-line's powder-coated steel build guarantees longevity and resilience, making it suitable for both indoor and outdoor use. Enjoy extended operational time, giving you the freedom to lift and move without constantly recharging. Crafted on a modular concept, the N-line lifter is compatible with all our lifting tools and can easily adapt to custom-built solutions. Effortlessly switch between standard lifting tools, making it the perfect addition to your equipment lineup.

Whether you're in construction, logistics, or any industry that requires reliable lifting solutions, the N-line lifter rises to the challenge. Its combination of durability, versatility, and high capacity makes it the ultimate choice for professionals looking to enhance productivity.
