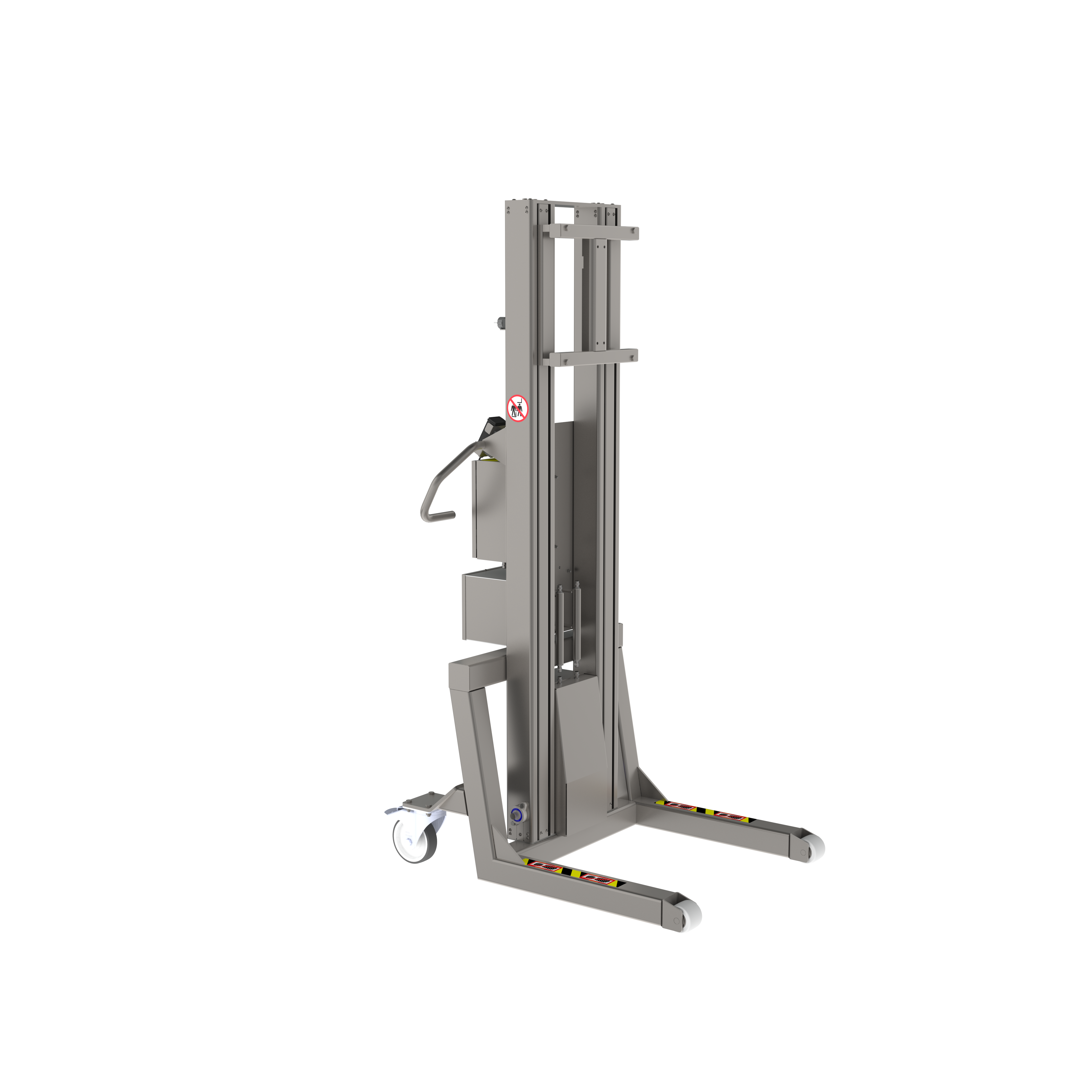

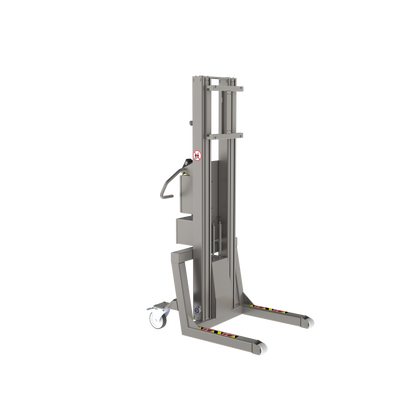

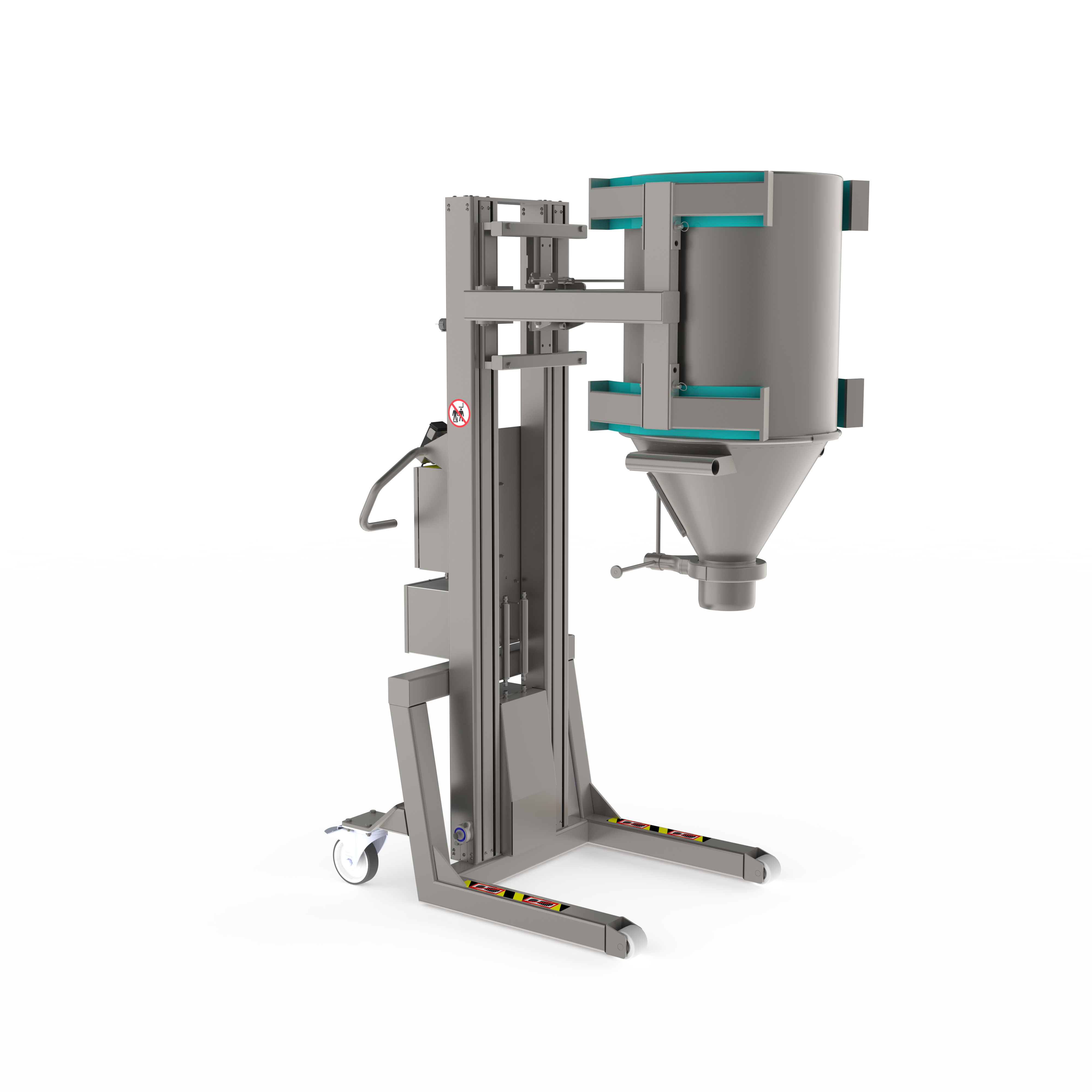

Hygienic Electric Stainless Steel Lifter (GMP) – 500 kg Load Capacity (SF)

Introducing the 500 kg Electric GMP Stainless Steel Lifter (SF), expertly designed for the food industry. This lifter delivers reliable performance while meeting stringent hygiene and safety standards.

Hygienic and Easy to Clean: Made from high-quality materials for easy sanitization, ensuring compliance with food safety regulations. The stainless steel construction simplifies cleaning and minimizes contamination risk.

Durable and Corrosion Resistant: Engineered for daily use in industrial food production, the corrosion-resistant stainless steel ensures long-lasting durability.

GMP Compliant: Tailored to meet Good Manufacturing Practice (GMP) standards, enhancing the quality and safety of operations.

Three Standard Heights or Customized: Choose your preferred lifting height for enhanced flexibility in food handling.

Why Choose the SF-500 Lifter?
Investing in the SF-500 Electric Lifter enhances your food handling processes with its dependable, efficient, and hygienic design.

Contact Us Today!
Optimize your operations now! Reach out to learn more about the 500 kg Electric GMP Stainless Steel Lifter (SF) and how it can boost efficiency and safety in your food production.

The images on this page change based on the height you select below.

?

Maximum height

Get a quote for a personalized lift

Configure your lift, fill in your information - then one of our experts will get back to you with a personalized quote.

Datasheets

Durable

Stainless Steel

Compact

Designed for industrial use

IP65

Dust tight and protected against water jets.

Tilt Secure

Prevents the lift from raising itself and tipping

Motion

To be mounted directly on the lifting tower

Electric

Electric remote control

Product details

SF-Line Lift Construction

Full stainless steel (AISI 304); glass bead blasted surface; 1.6 Ra. Dust and water protection class IP65,
hygienic - easy to clean. Dimensions customizable to your needs.

Safety

Self-locking gear system (worm gear): In case of an electrical failure, the mechanical system will automatically bring the lift to an immediate stop. Safety slip clutch (one-way safety clutch): Prevents the lift from lifting itself and tipping backward during downward movement.

Handling

Electric lifting process controlled via a toggle switch; lifting speed can be adjusted via the adjustment knob. Two lifting speeds: Normal (approx. 130 mm/s) and reduced speed, preset to e.g. 30%. The slow speed can be adjusted in the control box on the lift.

Lightweight and compact dimensions suitable for use where the working area is limited.

Robust 4-button remote control in metal with adjustable slow-remote function and high-quality PU spiral cable, making it easy to operate the lift with one hand. Ergonomic handle that allows for various grip positions.

Power Supply

Battery-powered. Can be permanently connected to power (Power supply: 110-230 V AC). Intelligent external battery charger - 24V 3.5A. Ensures long battery life through on-demand charging. Integrated LED display shows battery charge status.

Maintenance

AT-10 timing belt with low maintenance. Very durable Solid-State PLC. Wear-resistant parts (Wheels and maintenance-free standard batteries without memory effect).

Tool Modules

Adjustable fork for handling different box sizes
Adjustable mandrel for lifting rolls with a horizontal core direction
Electric box tipper
Edge gripper with support for pressure-sensitive barrels
Neck gripper for pressure-sensitive barrels/rolls
Double mandrel for lifting rolls without passing through the core
Electric scissor gripper with soft rubber for barrels/boxes of 300-600 mm diameter

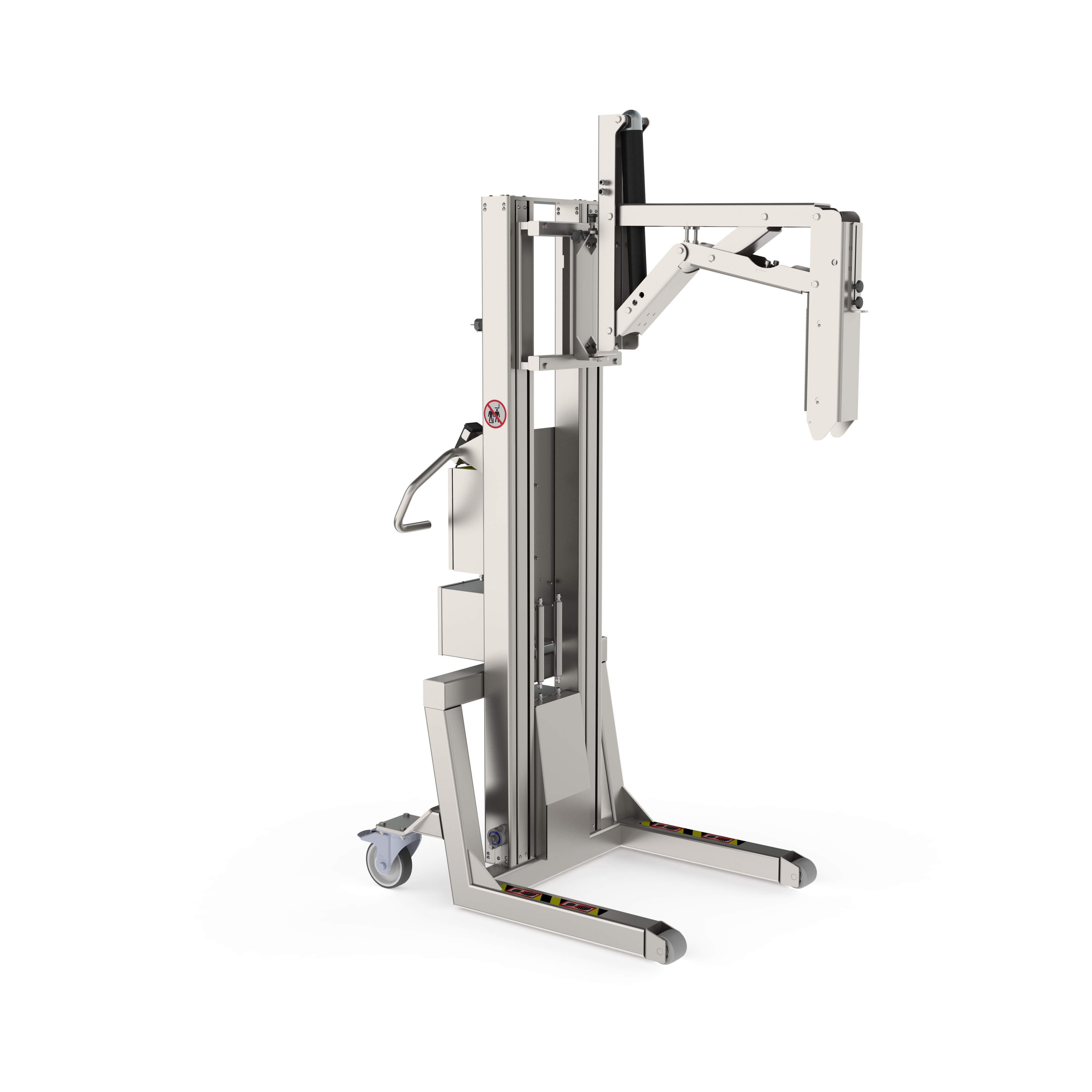

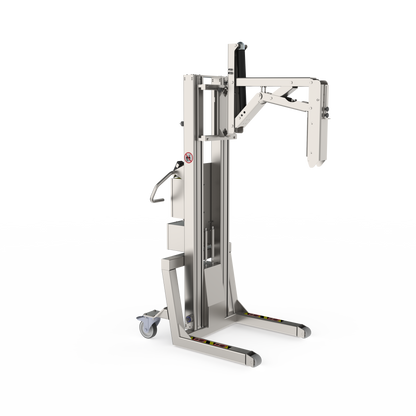

Electric roll manipulator
Electric double fork with electric 180º rotation in both directions
Electric double pin gripper with electric 180º rotation in both directions
Electric 360º rotation unit with electric scissor gripper with soft rubber for items
between 300-600 mm diameter
Electric 360º rotation unit with fork gripper for alternative box dimensions
Barrel gripper with protective base plate for pressure-sensitive barrels/drums.
Can rotate 90º in each direction
Fork for lifting a box of a given size
Fork with notch for lifting rolls through the core
Fork with self-locking edge gripper, ideal for metal boxes
Mandrel for lifting rolls with a horizontal core direction

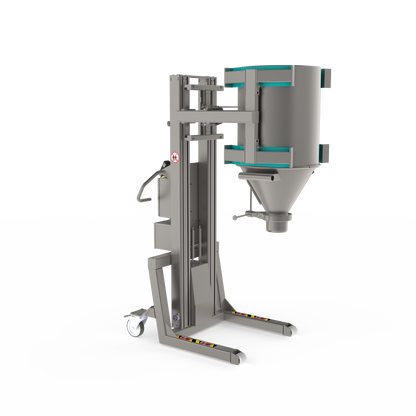

Manual clamp
Metal platform without (MP)/with edge rollers (MPR), with edges (MPE)
Manual roll manipulator
Nylon platform
Mandrel with rollers and brake for lifting rolls with a horizontally remaining core
Manual clamp with manual rotation

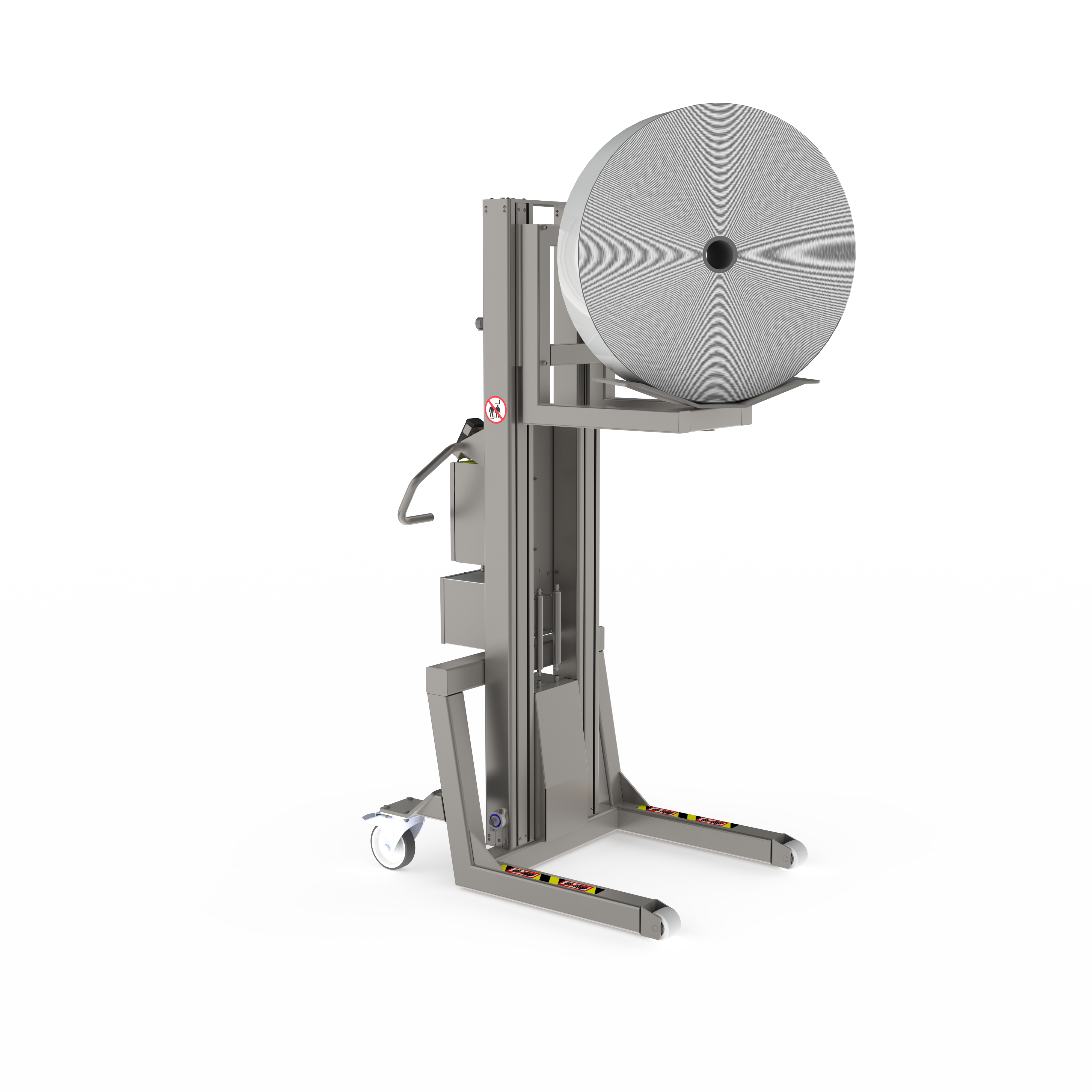

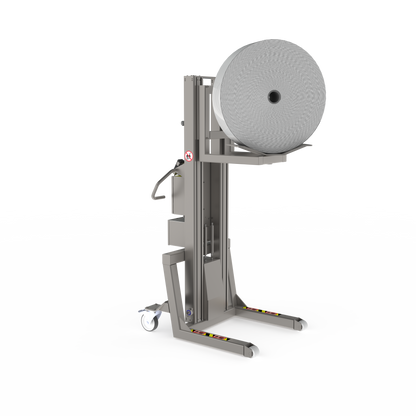

V-block for rolling/tipping rolls. Can be manually rotated so the roll can be lifted via the core

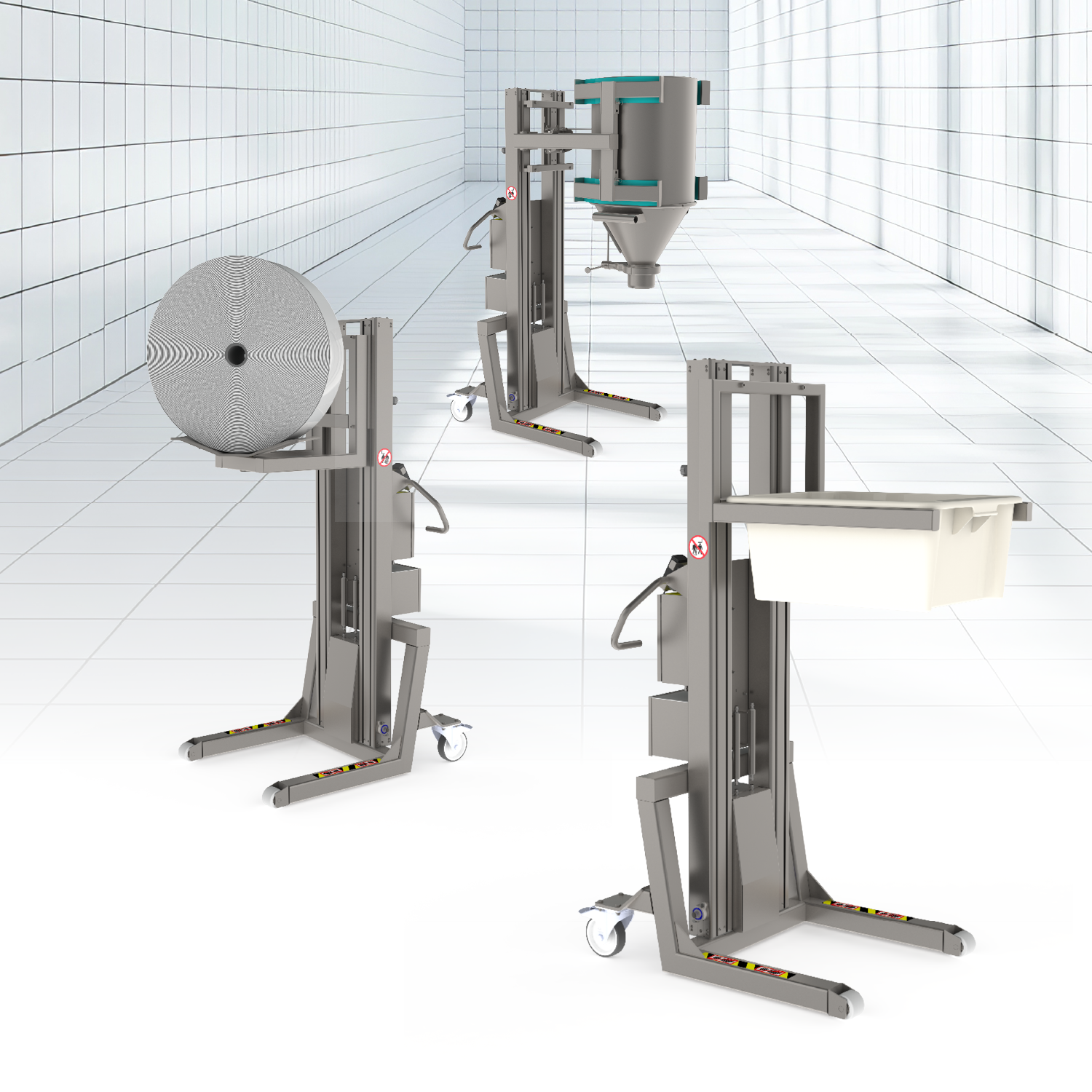

Elevate Efficiency with the SF Series Lift: The Ideal Solution for the Food Industry

The SF GMP lift series is a reliable and hygienic materials handling solution designed for intensive use in the food industry. With a robust design made from stainless steel (AISI 304) and a glass bead blasted surface, it is perfect for heavy-duty applications and can handle loads of up to 500 kg while being easy to clean. The lift features a self-locking gear system for safety and a safety clutch that prevents tipping. It is equipped with two lifting speeds for versatility and has compact dimensions suitable for limited workspaces. The durable remote control allows for effortless one-handed operation, and the intelligent battery charger ensures long battery life with an LED display for monitoring battery status.

Choose the SF Series Lift for an efficient, hygienic, and safe lifting solution tailored to the demands of industrial food production.
