Tipping capacity 90 Degrees
Manual Operation
To be mounted directly on the lifting tower
Designed for industrial use
Dust tight and protected against water jets.
Stainless Steel
Rotation capacity up to 180 degrees

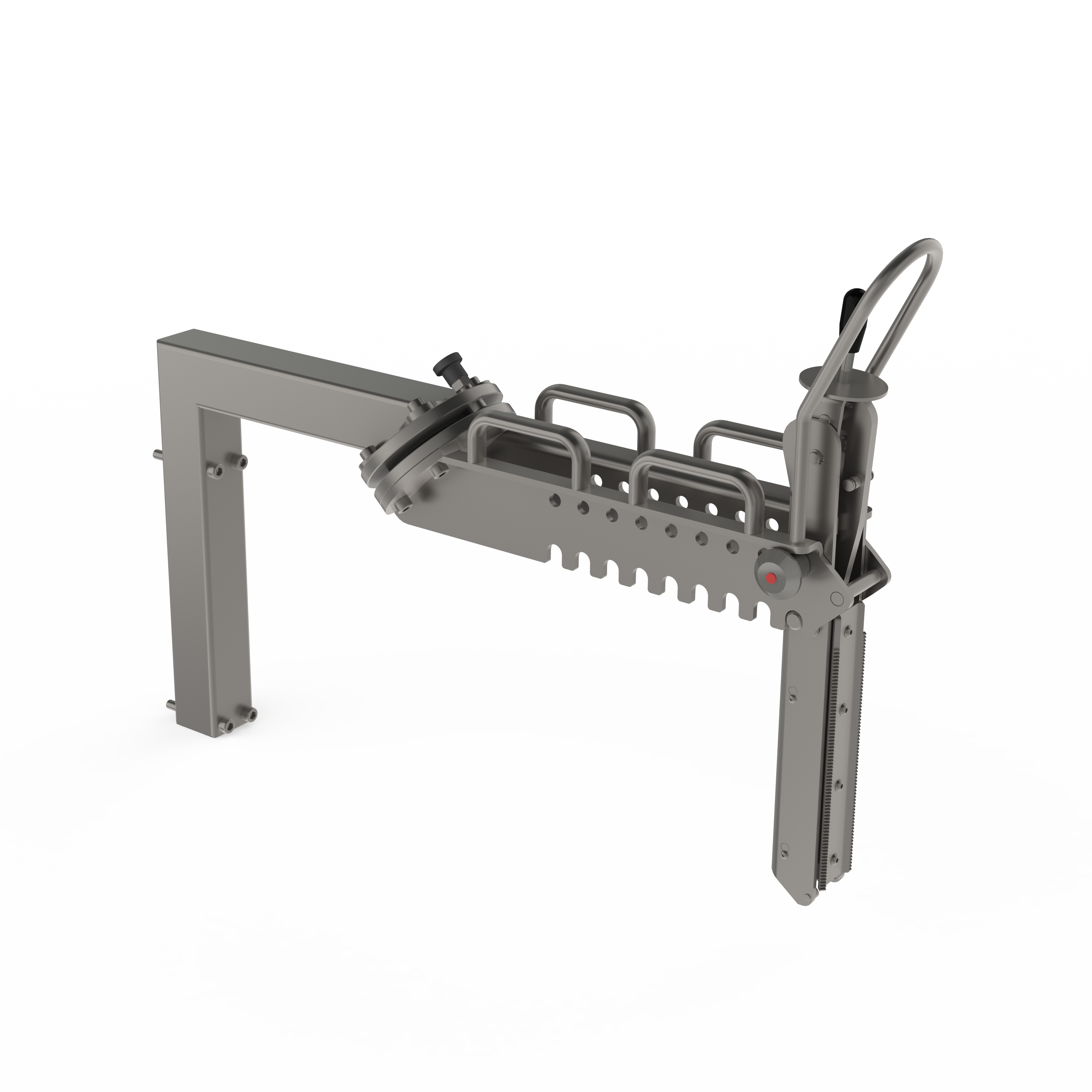

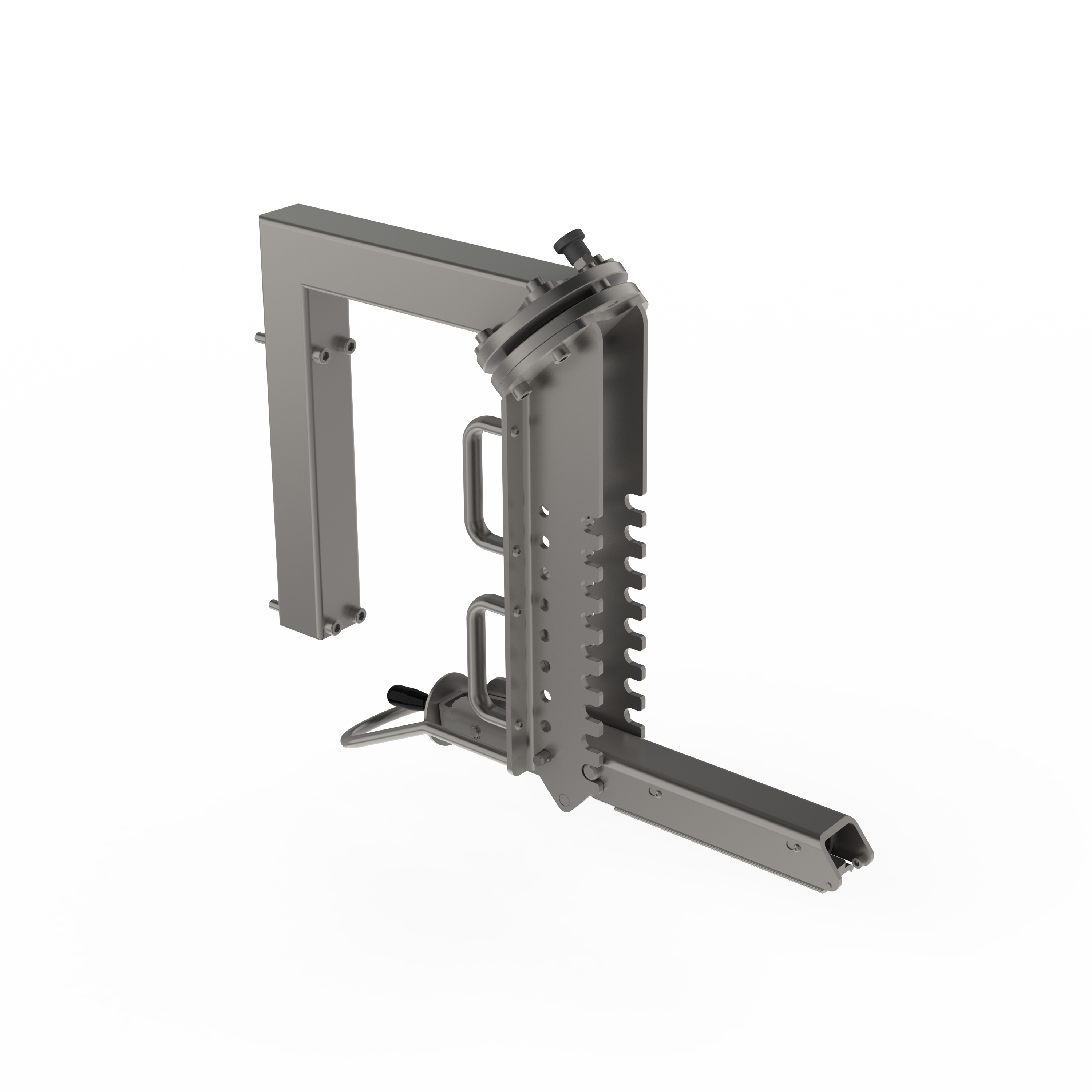

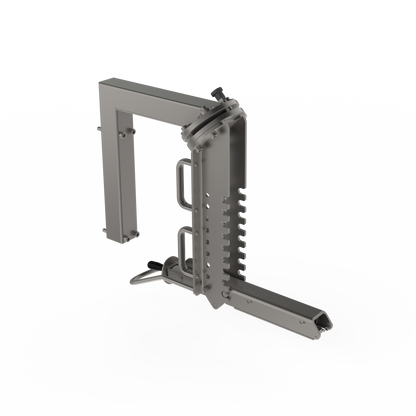

Manual Roll Manipulator (MRM)

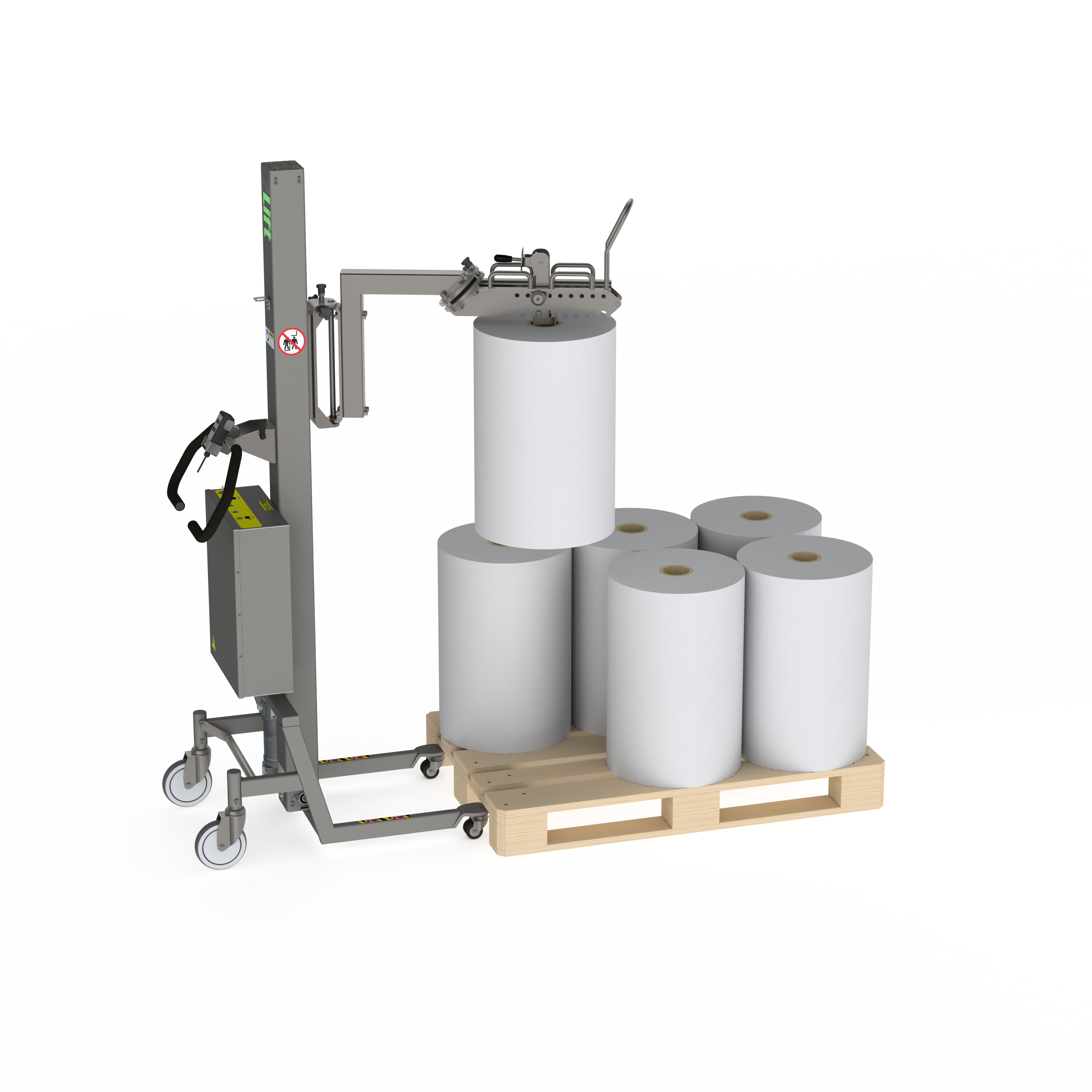

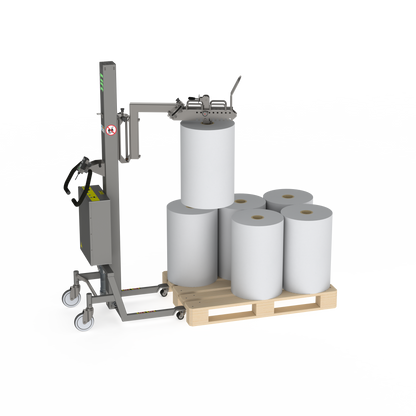

The MRM is a roll turner designed to grip and rotate easier rolls, recommended for quick and safe lifting, transportation, and tipping of rolls up to 200 kg.

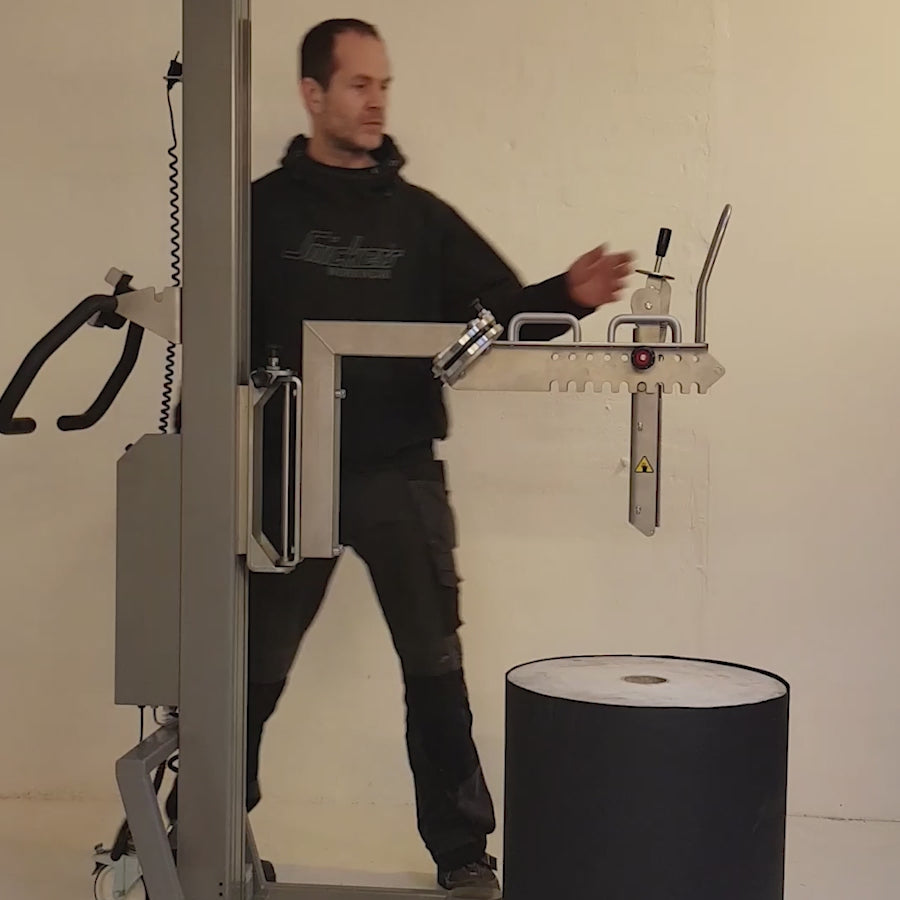

The equipment is manually operated from vertical to horizontal position. Suitable for quick re-palletting between different environments.
Robust construction

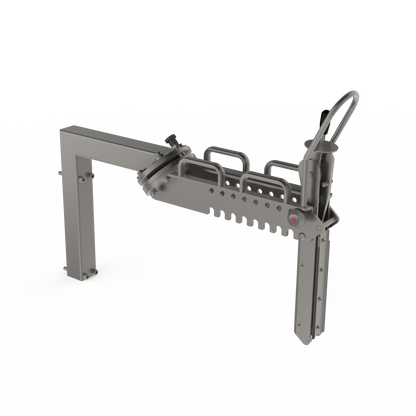

MRM is constructed from stainless steel, making it ideal for use in demanding industrial environments.
Can be adapted to various core sizes
The standard MRM has a tolerance of ±3 mm, which can be further adjusted with intermediate plates or additional gripping teeth for variations.
Flexible gripping/turning positions
It is quick and easy to set the expander for an optimal center of gravity, and the large handle allows the roll to be rotated from any position.
Swivel unit for easy positioning

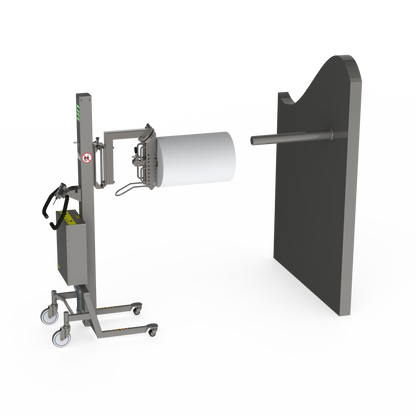

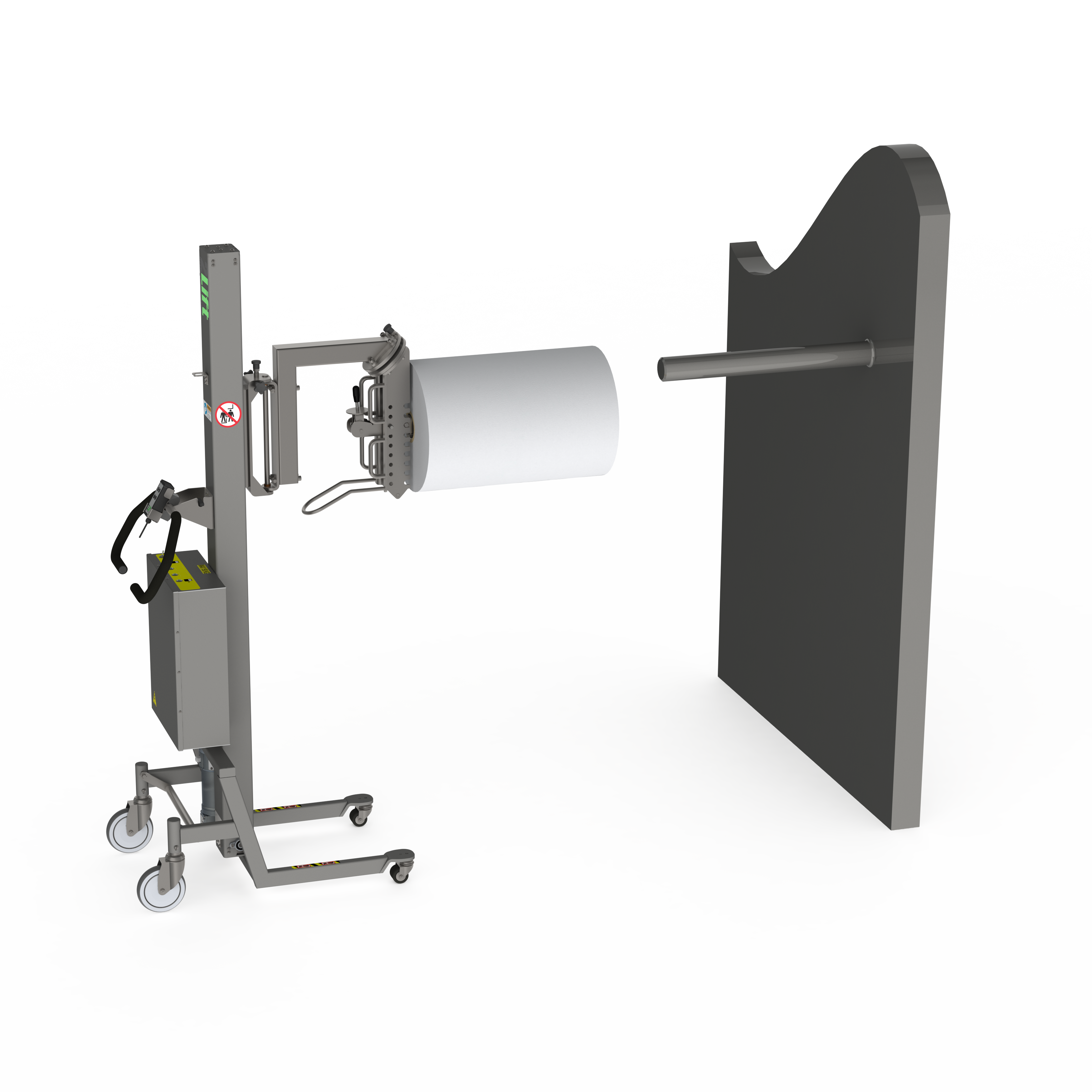

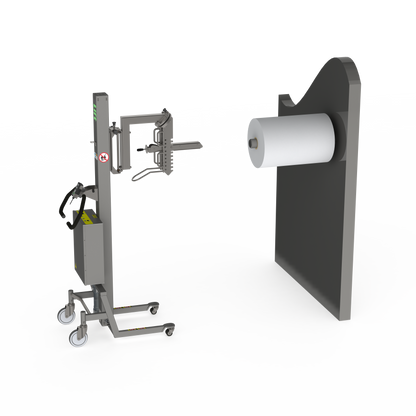

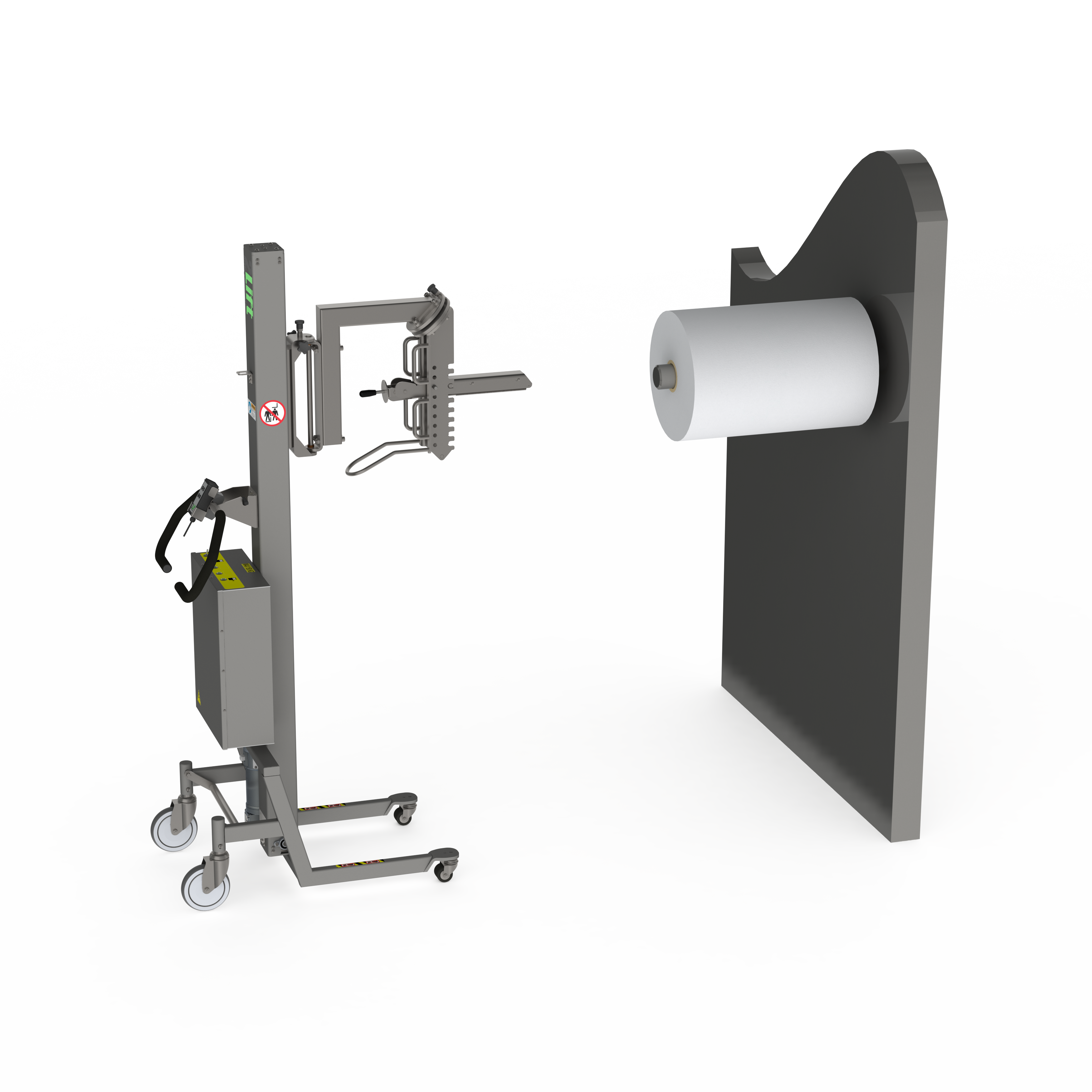

The MRM’s swivel unit at the back makes it easy to position the expander or roll on a spindle. The maximum angle is adjustable with two screws (longer screws provide less angle).
The images on this page change based on the type of lifter you select below.
Datasheets
Tipping capacity 90 Degrees
Manual Operation
To be mounted directly on the lifting tower
Designed for industrial use
Dust tight and protected against water jets.
Stainless Steel
Rotation capacity up to 180 degrees
Manual Roll Manipulator (MRM)
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Robust stainless-steel construction
Manual operation for precise control
Up to 200 kg capacity
Adjustable core gripping (±3 mm)
Flexible gripping and turning positions
Rear swivel unit for precise placement
Mid-position lock for secure transport
Hygienic version and accessory options
Universal 2LIFT compatibility and compact design
Optional Accessories
