V-Block (VB)

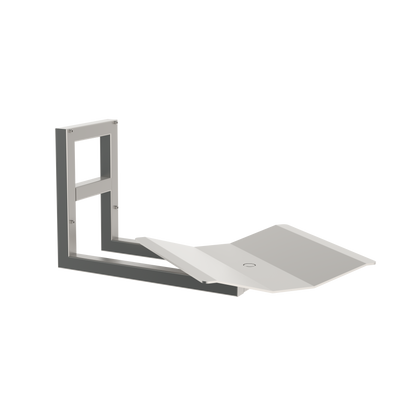

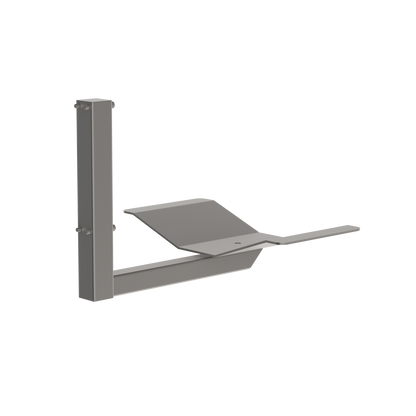

The V-block is a metal plate with a flat base and V-shaped geometry, making it easy to roll rolls off pallets.

The rotating platform allows for precise orientation of the roll's core for easy placement on the spindle. The V-block is designed to lift and stabilize cylindrical objects, primarily rolls, during transport.

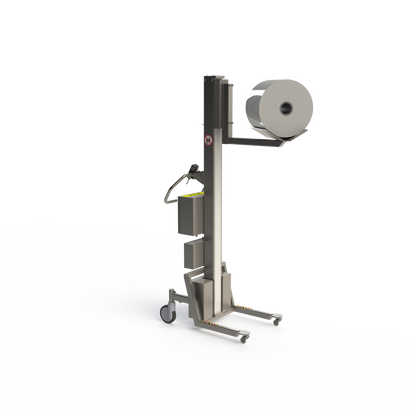

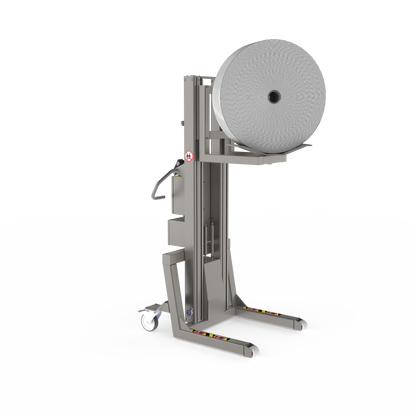

The V-block is primarily used as an effective tool for lifting and safely transporting rolls, but it also provides solutions for handling other cylindrical items.

When picking up a roll from a pallet, one of the flat edges on the top of the V is positioned against the side of the pallet. The roll can then be easily rolled onto the V-block and lifted.
Once the roll has been transported to its destination, it often needs to be placed on a mandrel or spindle. Thanks to the V-block's rotating design, the roll's core can be easily oriented in the desired direction, simplifying placement.

The images on this page change based on the type of lifter you select below.

Get a quote for a personalized lift

Configure your lift, fill in your information - then one of our experts will get back to you with a personalized quote.

Datasheets

Durable

Stainless Steel

Mecanical

Manual Operation

Motion

To be mounted directly on the lifting tower

IP65

Dust tight and protected against water jets.

Swivel

Easy to navigate in the desired direction

Product details

Robust V-shaped platform for rolls

The V-block’s V-geometry and flat base ensure stable lifting and transport of cylindrical rolls, preventing unintended rolling during handling.

Rotating V-platform for precise core orientation

The rotating top allows easy rotation of the roll core to the correct position for fast, accurate placement on a mandrel or spindle.

Flat edge for easy offloading from pallets

A flat top edge lets rolls be rolled directly off pallets onto the platform, speeding up pick-up and lift operations.

Supports a wide range of roll diameters

V-geometry and available platform sizes accommodate rolls from small to large diameters (up to Ø1200 mm depending on model).

Adjustable and customizable dimensions

All V-blocks can be customized in width (200–800 mm) and depth (200–800 mm) to meet specific product and process requirements.

Hygienic and industrial-grade construction

Made from stainless steel with IP65 protection; hygienic/cleanroom versions are available for food and pharmaceutical environments.

Easy integration with lifters and accessories

Choose a rotating V-block for core orientation or a fixed version without rotation depending on application needs.

Rotating or fixed versions available

Choose a rotating V-block for core orientation or a fixed version without rotation depending on application needs.

Lightweight, compact, high-functionality design

Compact dimensions and model-dependent weights (approx. 11–64 kg) enable easy handling and quick integration into existing material flow.

Modern V-Block — A redesigned metal-plate solution for stable cylindrical handling

In its simplest form, the V-block consists of a block with a large V-shaped indentation in the center, which can be placed on a platform to stabilize cylindrical objects during transport. In our modern V-block solution, we have replaced the traditional block with a metal plate, providing a geometry that typically has a V-shape with a flat base and edges at the top. Although we have updated the design, we have chosen to retain the designation 'block' for historical reasons.
