Waterproof Electric Stainless Steel Lifter (GMP) – 300 kg Load Capacity (SP)

Introducing the 300 kg Electric Waterproof GMP Stainless Steel Lifter (SP), designed specifically for the pharmaceutical industry.

Features and Benefits
This GMP-compliant lifter offers a powerful lifting capacity of 300 kg while ensuring precision handling during sensitive manufacturing processes. Crafted from high-quality stainless steel, it guarantees easy cleaning and adheres to the strictest hygiene standards, ensuring maximum safety and compliance in your production environment.

Equipped with advanced safety features and customizable options, the SP lifter is the ultimate solution for your industrial production needs. Its waterproof design enhances durability, making it suitable for demanding environments.

Why Choose the SP Lifter?
Selecting the SP lift means opting for a reliable and efficient lifting solution that meets the specific requirements of the pharmaceutical sector.

Contact Us
Contact us today to learn more about the 300 kg Electric Waterproof GMP Stainless Steel Lifter (SP) and discover how improved material handling can elevate production processes for the benefit of both employees and efficiency.

The images on this page change based on the height you select below.

?

Maximum height

Get a quote for a personalized lift

Configure your lift, fill in your information - then one of our experts will get back to you with a personalized quote.

Datasheets

Durable

Stainless Steel

Compact

Designed for industrial use

Tilt Secure

Prevents the lift from raising itself and tipping

Motion

To be mounted directly on the lifting tower

IP65

Dust tight and protected against water jets.

Electric

Electric remote control

Product details

SP-Line Lift Construction

Full stainless steel (AISI 304); glass bead blasted surface; 1.6 Ra. Dust and water protection class IP65, hygienic - easy to clean. Lift column sealed with a band for dust and particle protection. Motor enclosed in stainless steel cover. Dimensions customizable to your needs.

Safety

Self-locking gear system (worm gear): in the event of an electrical failure, the mechanical system automatically brings the lifter to an immediate stop. Safety slip clutch (one-way safety clutch): prevents the lifter from lifting itself and tipping backwards during downward movement.

Handling

Electric lifting process controlled via a toggle switch; lifting speed can be adjusted via the adjustment knob
Two lifting speeds: Normal (approx. 130 mm/s) and reduced speed, pre-set to e.g. 30%. The reduced speed can be adjusted in the control box on the lift.

Lightweight and compact dimensions well suited for use in spatially demanding work areas.

Robust remote control (full metal body; high quality PU spiral cable) allows easy one-hand operation. Ergonomic handle that allows the user different gripping positions.

Power Supply

Battery-operated. Can be permanently connected to power (Power supply: 110-230 V AC). Intelligent internal battery charger - 24V 3.5A. Ensures long battery life through on-demand charging. You are always informed about the battery charge state by the integrated LED display.

Maintenance

Low maintenance AT-10 timing belt. Very durable Solid-State PLC. Wear-resistant parts (Wheels and maintenance-free standard batteries without memory effect).

Tool Modules

Adjustable fork for handling different box sizes
Adjustable mandrel for lifting rolls with a horizontal core direction
Electric box tipper
Edge gripper with support for pressure-sensitive barrels
Neck gripper for pressure-sensitive barrels/rolls
Double mandrel for lifting rolls without passing through the core
Electric scissor gripper with soft rubber for barrels/boxes of 300-600 mm diameter
Electric Linear Clamping Unit for Barrels/Rolls
Electric Linear Clamping Unit for Barrels/Rolls with electric 180º tipping unit
Electric Linear Clamping Unit for Barrels with manuel 180º tipping unit
Electric roll manipulator
Electric double fork with electric 180º rotation in both directions
Electric double pin gripper with electric 180º rotation in both directions
Electric 360º rotation unit with electric scissor gripper with soft rubber for items between 300-600 mm diameter
Electric 360º rotation unit with fork gripper for alternative box dimensions

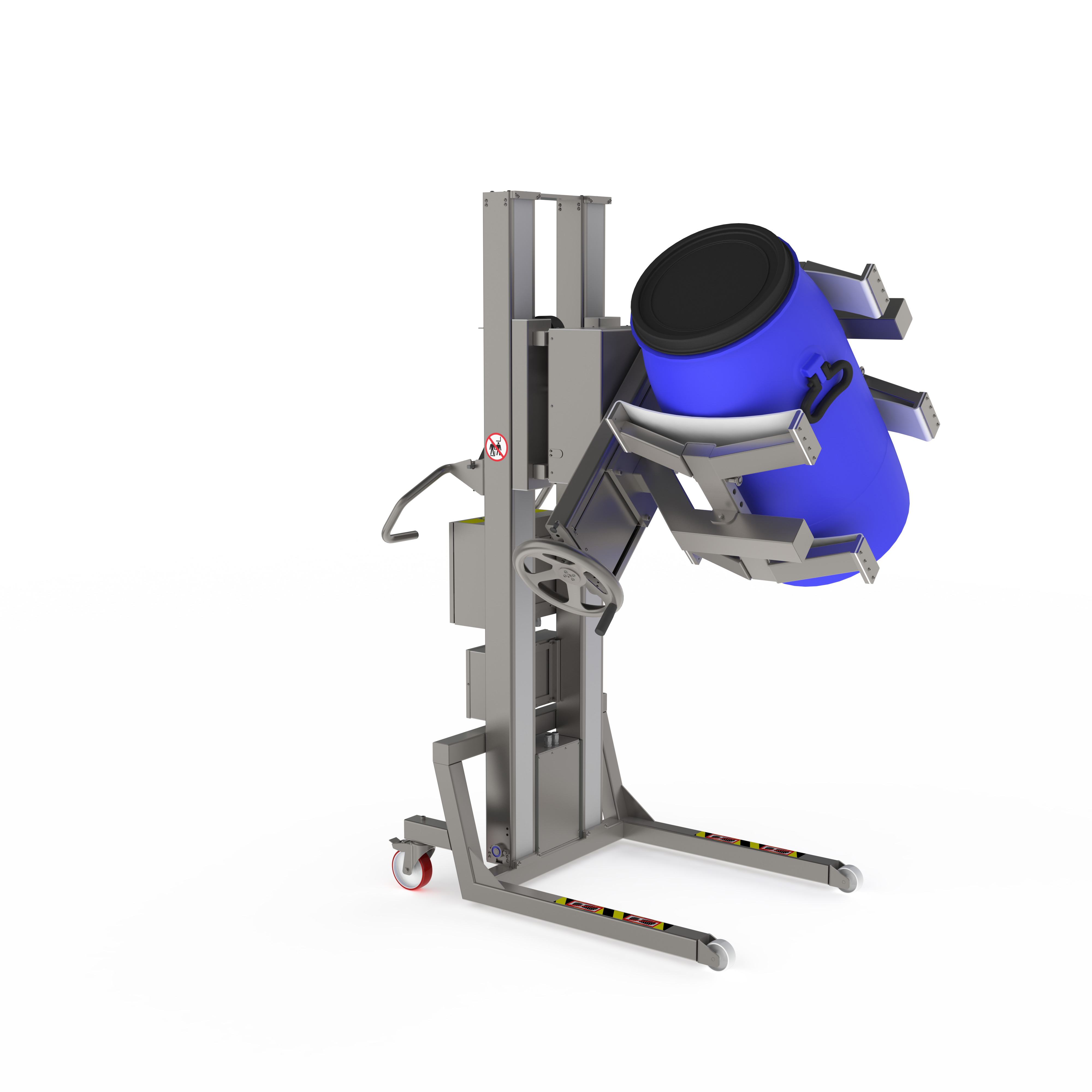

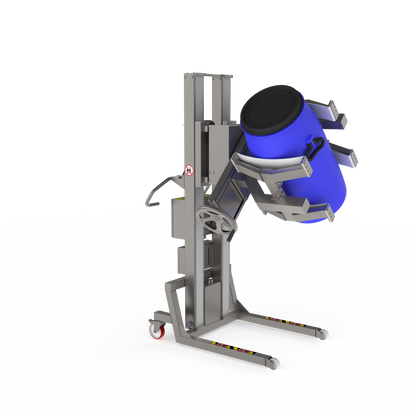

Manual linear clamping unit for barrels with electric 180ºrotation in both directions
Barrel gripper with protective base plate for pressure-sensitive barrels/drums. Can rotate 90º in each direction
Fork for lifting a box of a given size
Fork with notch for lifting rolls through the core
Fork with self-locking edge gripper, ideal for metal boxes
Mandrel for lifting rolls with a horizontal core direction

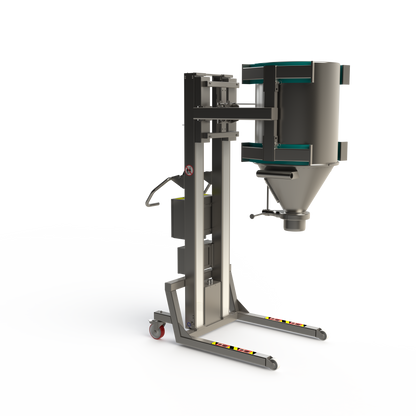

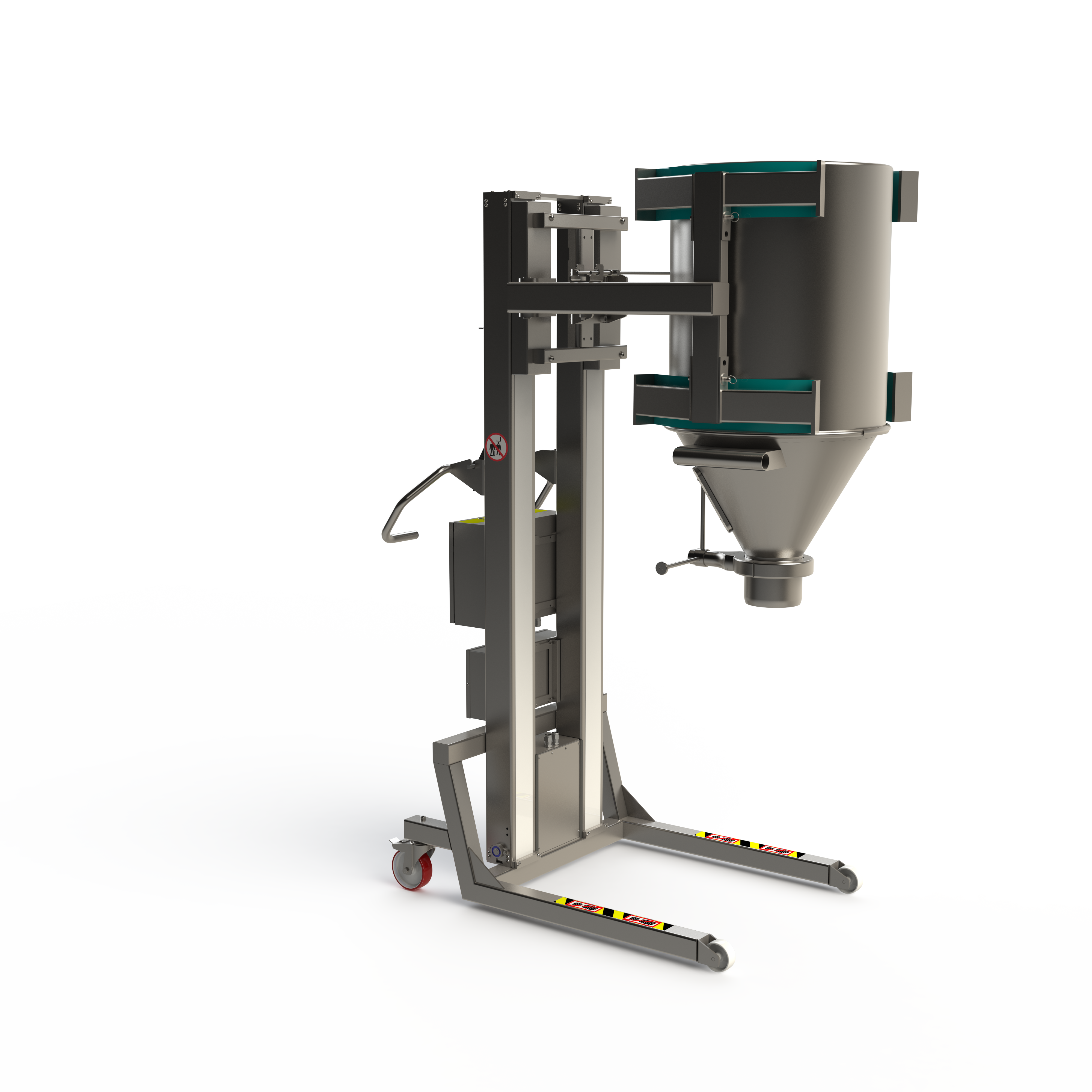

Manual Clamp
Manual Linear Clamp
Manual Linear Clamp with Manual Tipping Unit
Metal Platform without (MP)/with edge Rollers (MPR), with Edges (MPE)

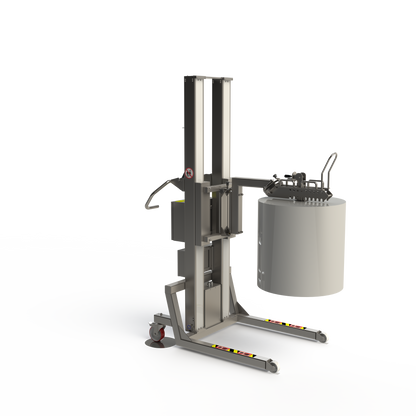

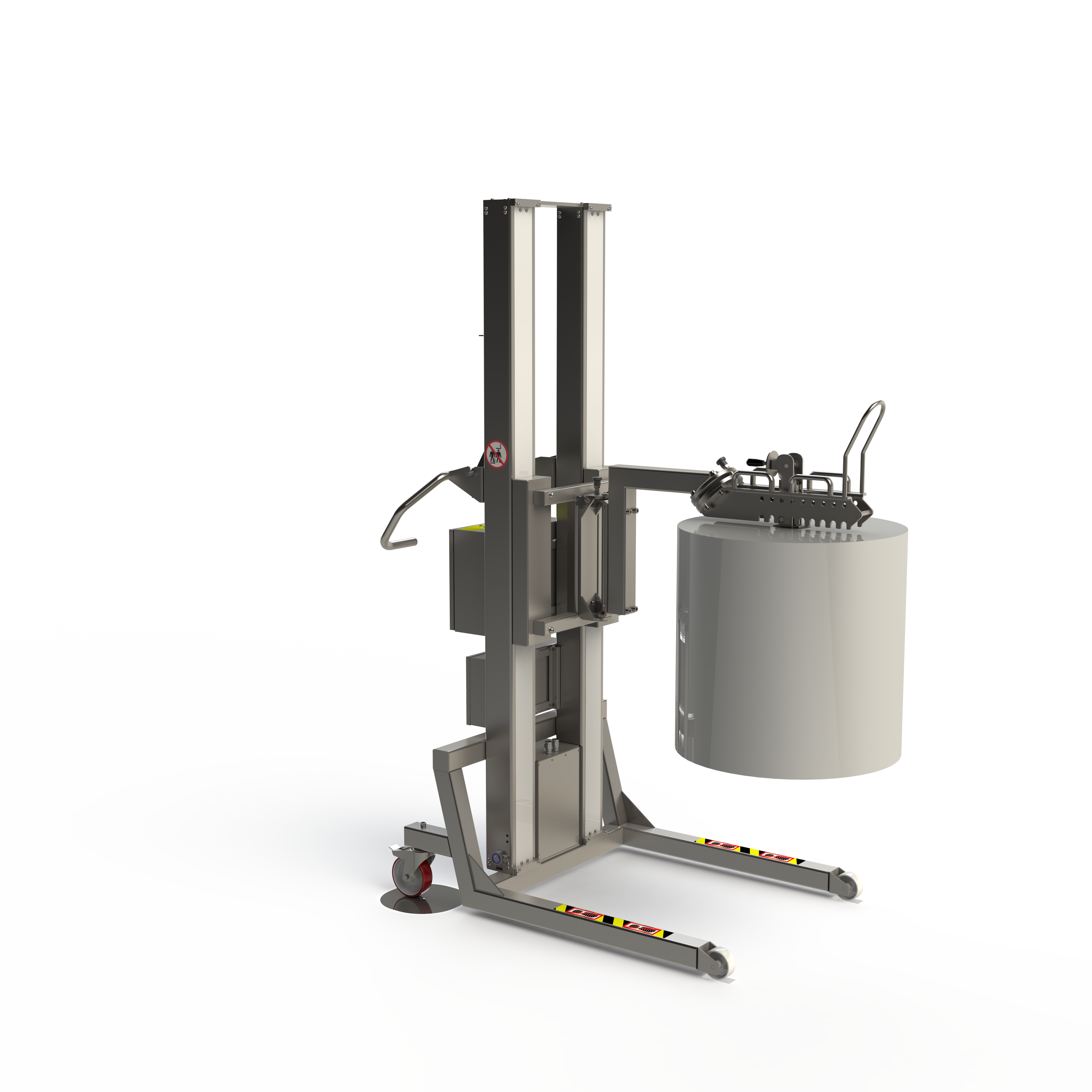

Manual Roll Manipulator
Manual Rotation Unit with Manual Linear Clamp
Nylon Platform
Mandrel with Rollers and brake for lifting rolls with a horizontally remaining core
V-block for rolling/tipping rolls. Can be manually rotated so the roll can be lifted via the core

SP Lifter: A Reliable Solution for Pharmaceutical Production

The SP Lifter is a robust and reliable lift designed specifically for the pharmaceutical industry, equipped with high lifting capacity to support sensitive and precise manufacturing processes. Constructed from full stainless steel (AISI 304) and featuring a glass bead blasted surface, it meets stringent hygiene standards for easy cleaning.

The lift includes advanced safety features such as a self-locking gear system and a safety slip clutch to prevent accidents, ensuring secure operation in demanding environments. Controlled effortlessly through a user-friendly toggle switch, the SP Lifter offers adjustable lifting speeds and compact dimensions, making it suitable for spatially constrained work areas.

Available in low, medium, and high variants as standard, users can also choose from a wide range of standard tools. Both lift dimensions and tools can be customized to meet specific needs. With a durable remote for easy one-handed operation and an intelligent battery charger that monitors battery life via an LED display, the SP Lifter stands out as an efficient and hygienic lifting solution tailored to the pharmaceutical production sector.
