M – Mandrel:
A Roll and Reel Lifter Tool for Industrial Lifting Machinery

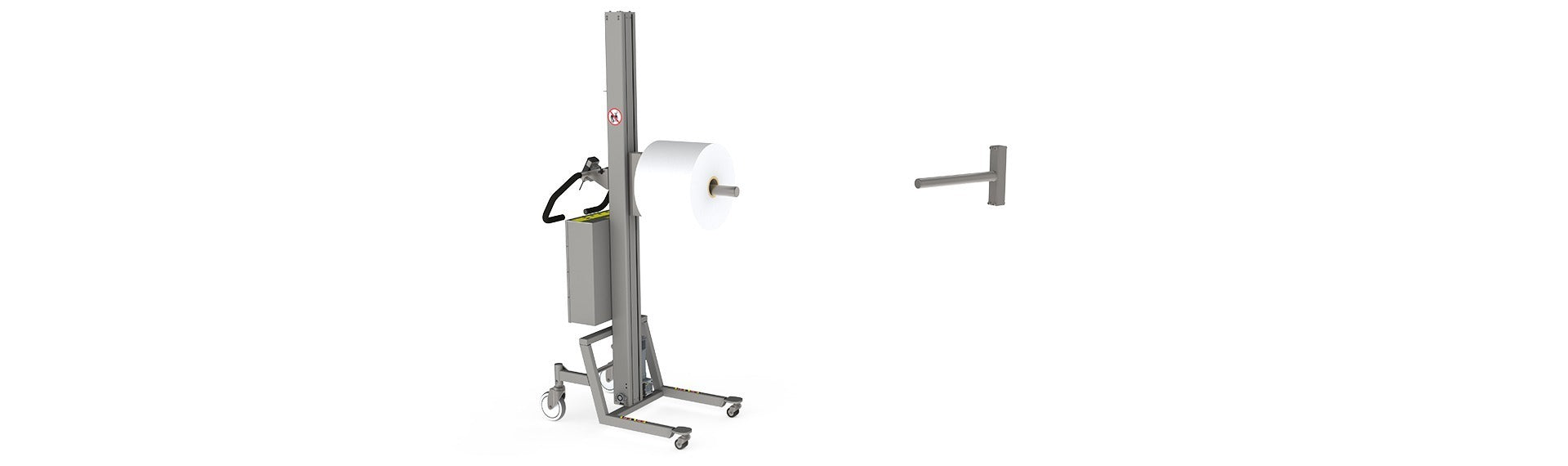

The mandrel (M) is a lifter tool designed to pick up rolls and reels through their core. This roll and reel lifter attachment is easily customisable.

The roll and reel lifter unit, the single mandrel (M), is designed to pick up rolls and reels through their core, however the mandrel also works well with numerous other load types.

The diameter and length of the mandrel can be customized to fit different roll core sizes, the standard mandrel diameter being 50 mm.

To protect machine parts while transferring rolls or other loads, the end of the mandrel has a protective plastic cap.

Features

  • Easy customization: dimensions can be modified to customer specifications.
  • Rugged construction for industrial use. With its all-stainless steel construction, the mandrel (M) is built to last and for use in demanding industrial environments.
  • Available in hygienic design for use in cleanrooms and the food/beverage industry.

Images of the Mandrel (M):
A Reel Lifter and Roll Handling Tool

This piece of reel and roll handler equipment, the single mandrel (M), will lift reels and rolls through their core. From the back, picture 1.
The single mandrel (M) is designed to handle heavy rolls (e.g. paper) or reels. From the front, picture 1.

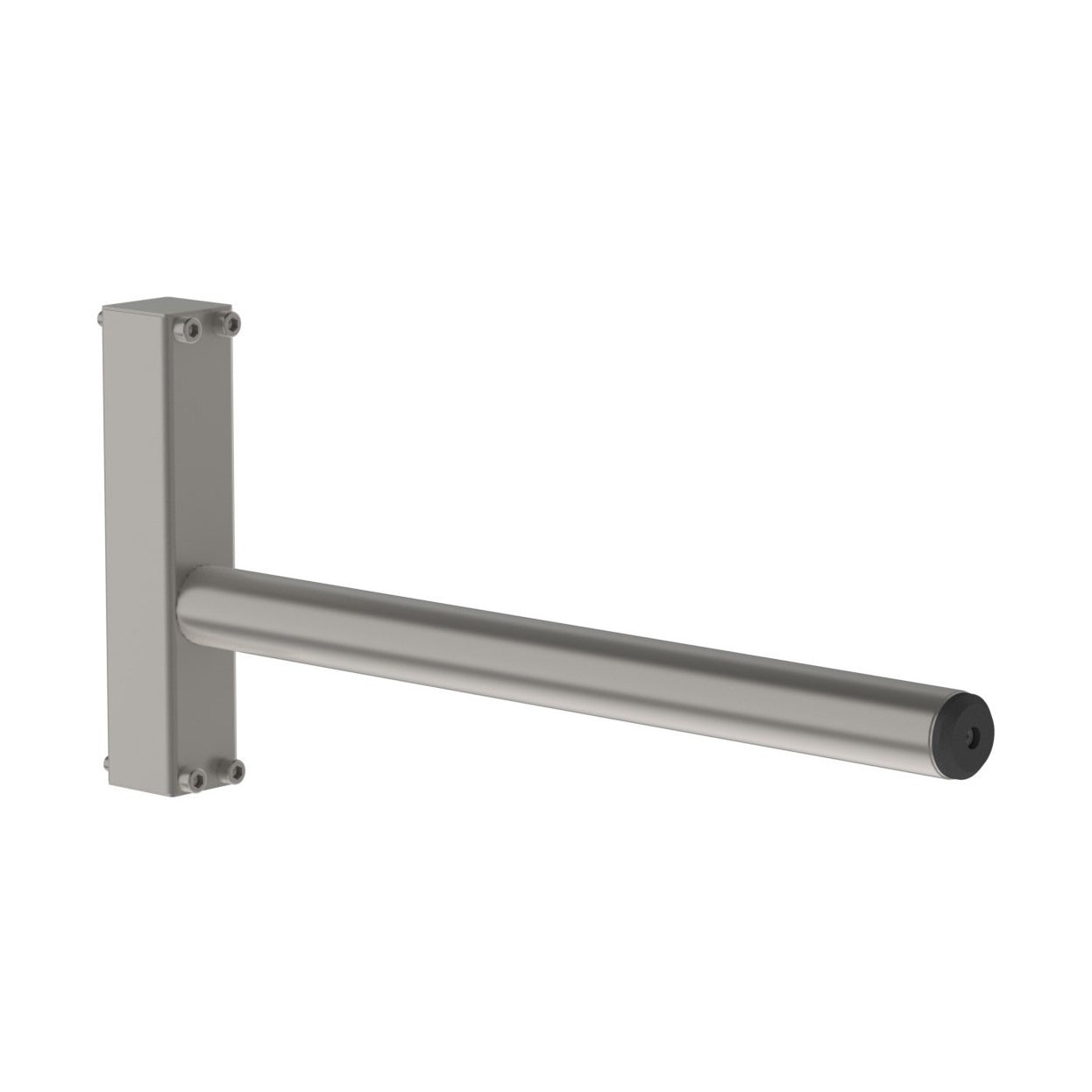

The mandrel (M) is a lifter tool designed to pick up rolls and reels through their core. This roll and reel lifter attachment is easily customisable. From the front, picture 2.

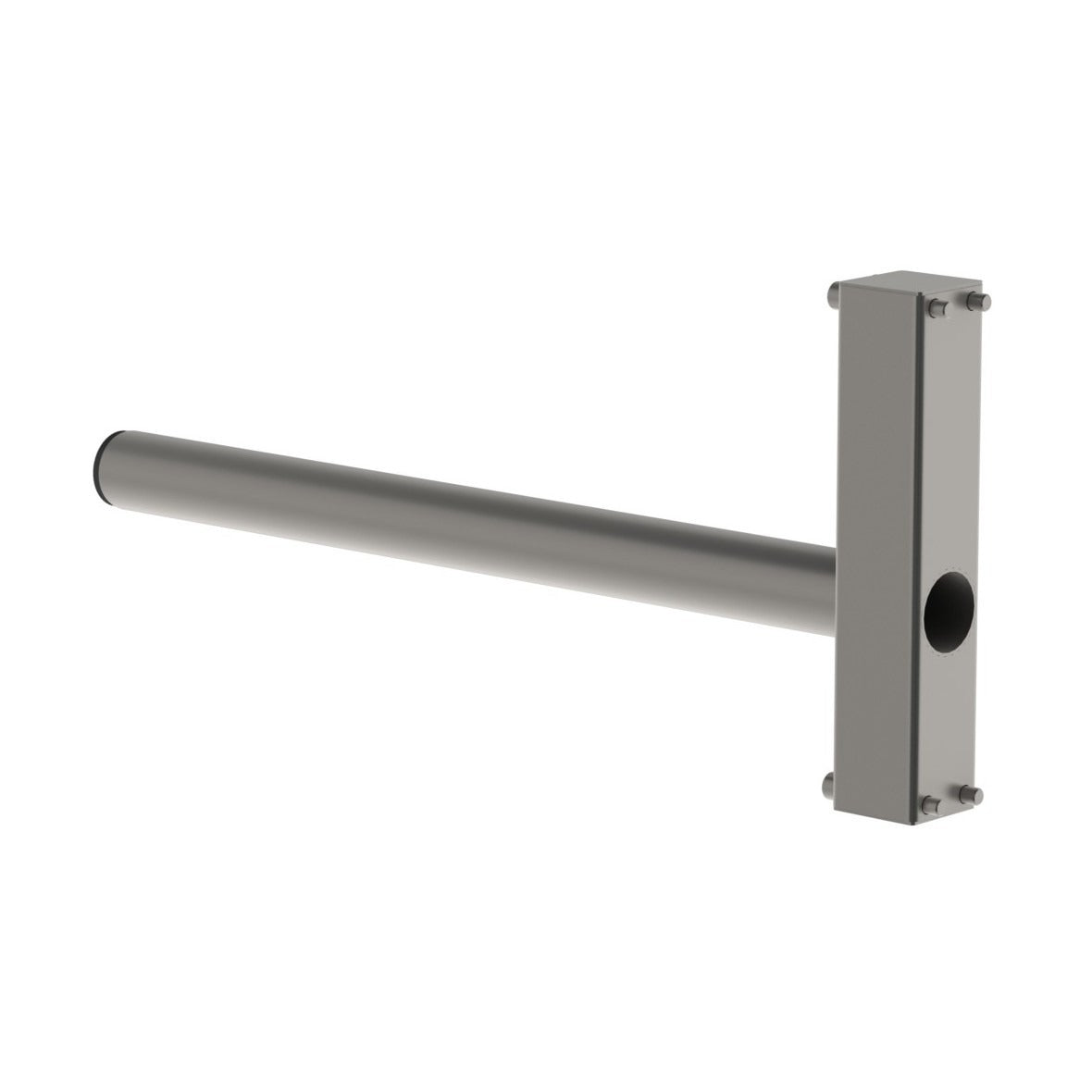

Ideal as paper handling equipment, the mandrel (M), will pick up the roll (or reel) through its core. From the back, picture 2.
This piece of reel and roll handler equipment, the single mandrel (M), will lift reels and rolls through their core. From the back, picture 1.
The single mandrel (M) is designed to handle heavy rolls (e.g. paper) or reels. From the front, picture 1.
The mandrel (M) is a lifter tool designed to pick up rolls and reels through their core. This roll and reel lifter attachment is easily customisable. From the front, picture 2.
Ideal as paper handling equipment, the mandrel (M), will pick up the roll (or reel) through its core. From the back, picture 2.
