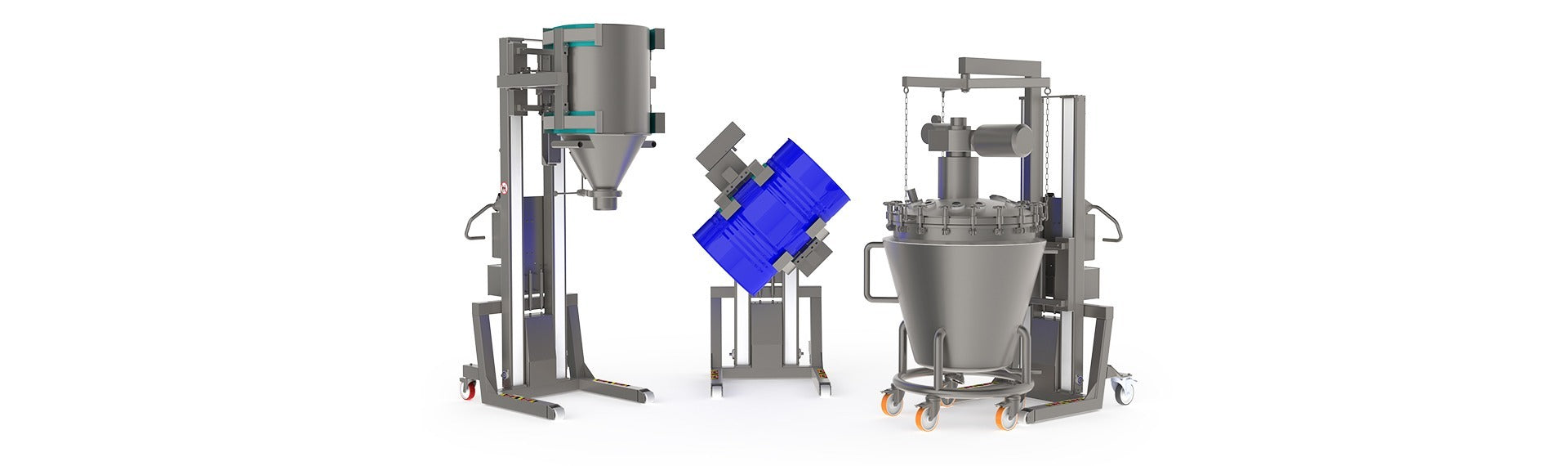

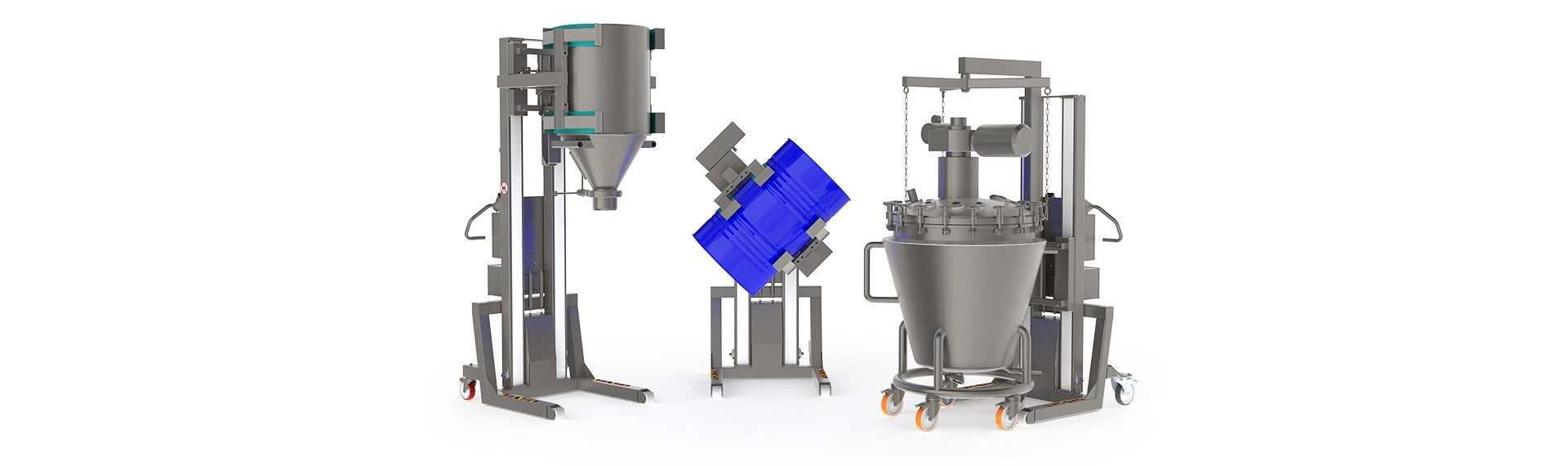

Flexible Lifting Solutions for Cleanroom Environments

Powerful and flexible, cleanroom lifting solutions for pharma and biotech. Able to lift up to 500 kg.

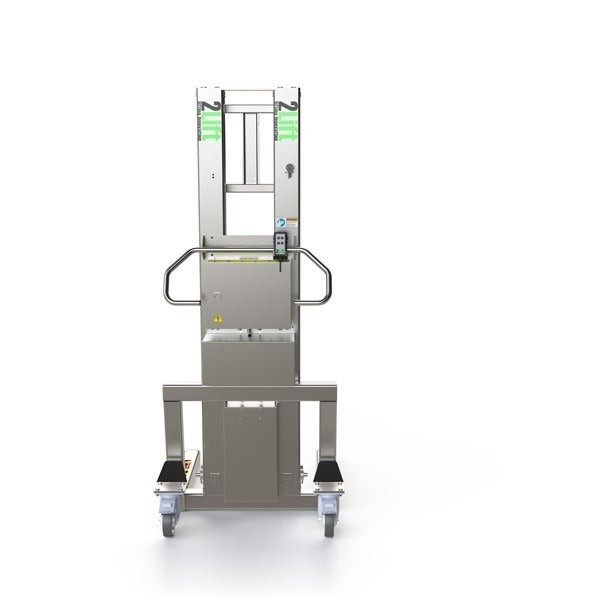

The SP-500s are the largest cleanroom lifting solutions in the SP-line.

Capable of lifting up to 500 kg (including the mounted lifting tool) and highly adaptable, making it a perfect choice for heavy loads.

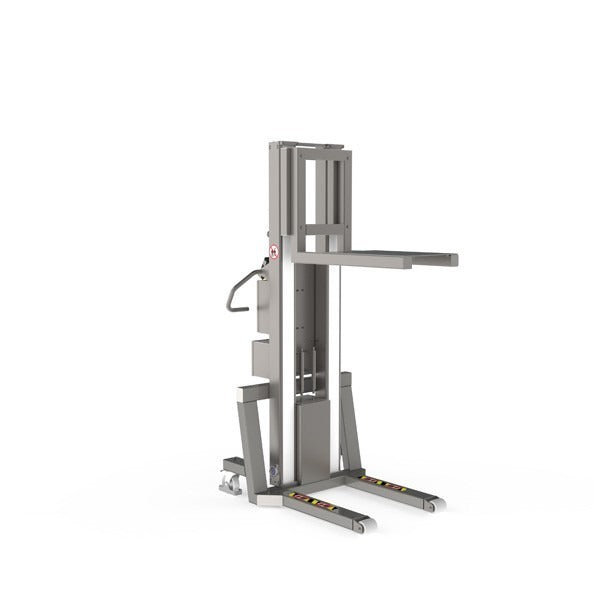

Built on modular principles this lifter is easily combined with all our lifting tools – simple and manual as well as electric.

All our minilifts can be adjusted to individual needs and requirements.

Features

Self-locking gear system for safety and accuracy. In case of electrical failure the mechanical system automatically brings the lifter to an immediate standstill.
Large battery capacity with charge-state indicator. The large battery capacity allows for prolonged use of the lifter, even with the addition of electrical lifting tools.
Easily customizable: height of lifting column and dimensions of wheel base can be modified to customer specifications.
Rugged construction for industrial use. With its all-stainless steel construction, the SP-500 is built to last and for use in demanding industrial environments. Featuring a fully welded wheel base, these lifters do not become loose or wobbly even after many years of intensive use.
Ergonomic handle designed to allow the user multiple different grips depending preference and situation.
Robust remote control specifically designed for our lifters. Where practically all other lifters use a remote control with a plastic housing, our remote control features a full metal body and a high quality PU spiral cable. These remote controls do no crack or break when dropped and the cable remains flexible even after many years of use.
Dual speed lifting and lowering. The control unit and remote control allow for either full speed operation or lifting at a reduced speed. The reduced speed is pre-set to the desired value on the control unit.

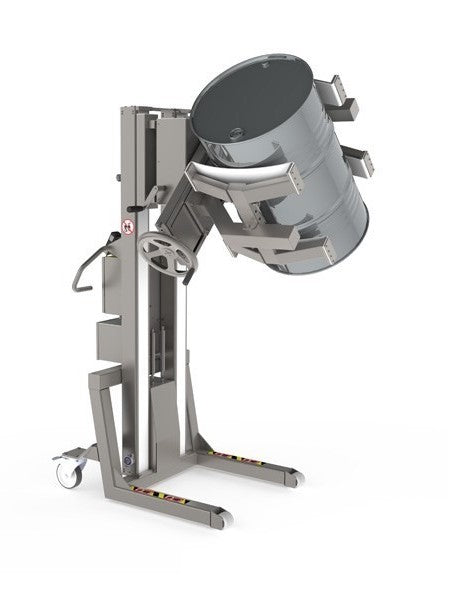

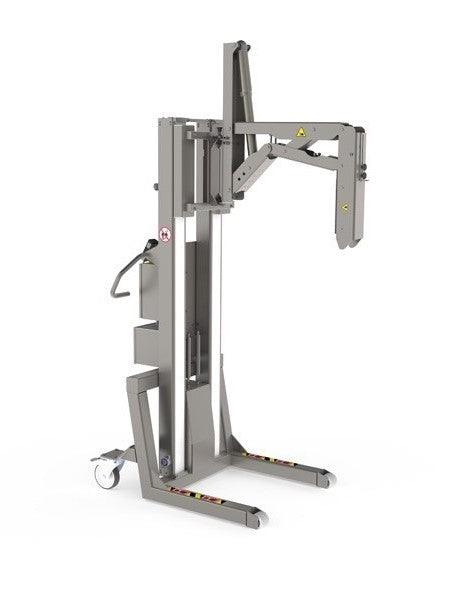

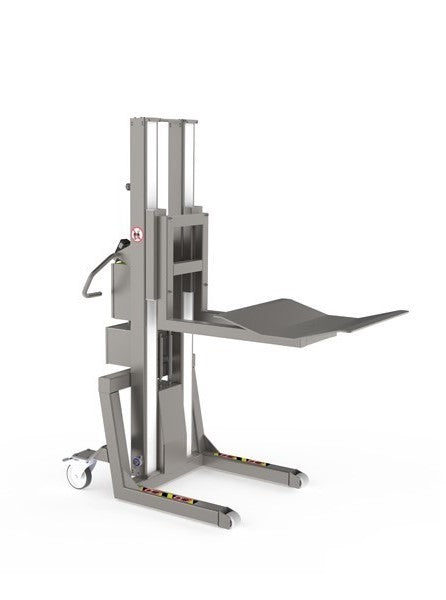

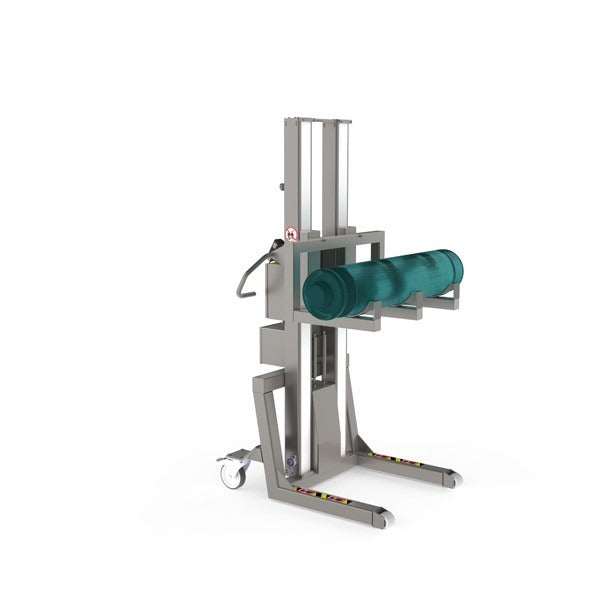

Large range of lifting tools: both electrical and non-electrical lifting tools are available.
Cambelt drive: The use of an AT-10 cambelt ensures smooth, reliable operation with no need for lubricants or continuous maintenance.
Wheels and castors: We use non-marking wheels and swivel castors with quality bearings making the lifter easy to maneuver. A large selection of different wheels are available to ensure that they suit different height requirements and floor surfaces.
Electronic overload protection – immediately stops all movement if lifter is overloaded.

SP-500 Cleanroom Lifting Solutions: Product Data

	SF-500L	SF-500M	SF-500H	SF-500HSP
Lifting Capacity	500 kg	500 kg	500 kg	500 kg
Total Height	1500.0 mm	1974.0 mm	2350.0 mm	1300.0-3500.0 mm
Footprint (L×W)	1252×780 mm	1252×780 mm	1252×780 mm	1252×780 mm
Stroke	995 mm	1480 mm	1856 mm	805-3005 mm
Lifting Speed – No load	130 mm/s	130 mm/s	130 mm/s	130 mm/s
IP-rating	65	65	65	65
Rear Wheels	ø125 mm – Central Brake	ø125 mm – Central Brake	ø125 mm – Central Brake	ø125 mm – Central Brake
Front Wheels	Fixed ø90 mm	Fixed ø90 mm	Fixed ø90 mm	Fixed ø90 mm
Material	AISI 304 – Glass bead blasted	AISI 304 – Glass bead blasted	AISI 304 – Glass bead blasted	AISI 304 – Glass bead blasted
Battery Capacity	24 V – 45 Ah	24 V – 45 Ah	24 V – 45 Ah	24 V – 45 Ah
Battery Charger	Built in – 24 V 3.5 A	Built in – 24 V 3.5 A	Built in – 24 V 3.5 A	Built in – 24 V 3.5 A
Power Supply	110-230 V AC	110-230 V AC	110-230 V AC	110-230 V AC
Control Unit	Solid-state PLC	Solid-state PLC	Solid-state PLC	Solid-state PLC
User Control System	Remote control with E-stop for manipulators	Remote control with E-stop for manipulators	Remote control with E-stop for manipulators	Remote control with E-stop for manipulators
Overload Protection	Current monitor with cut-off	Current monitor with cut-off	Current monitor with cut-off	Current monitor with cut-off
