Materials Handling Machinery: Lightweight and Corrosive Resistant

Lightweight, hygienic materials handling machinery for the food and beverage industry.

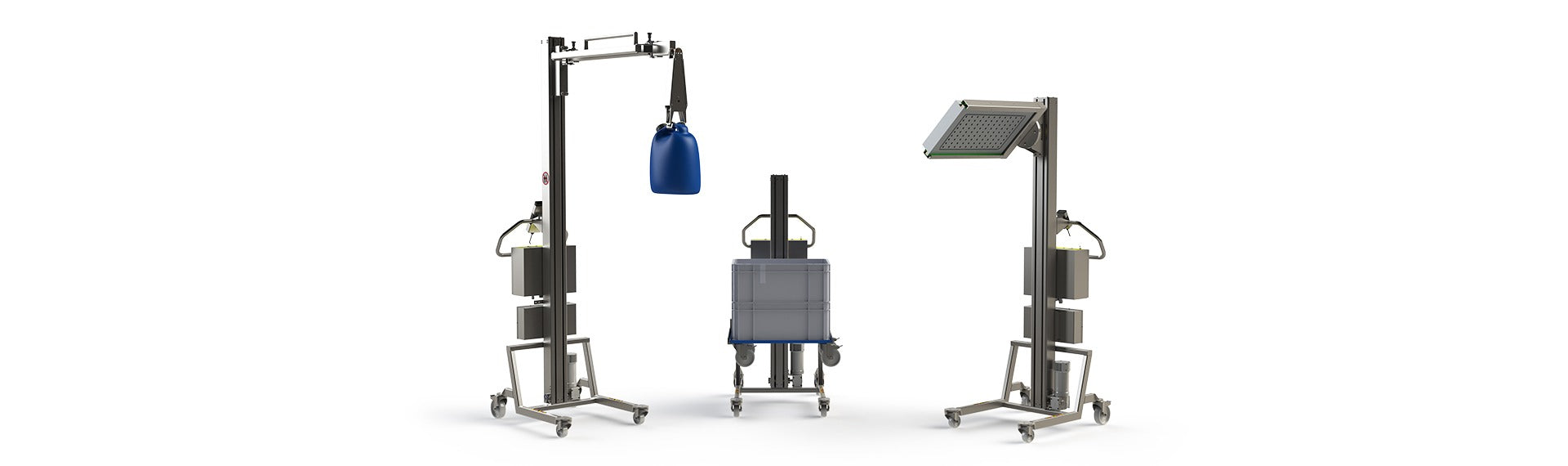

The SF-150 is our lightest materials handling machinery in the SF-line.

Easy to manoeuvre and highly adaptable, the SF-150 mini lift is one of the most versatile electric lifters for use in the food and beverage industry.

With twice the battery capacity of most similar lifters, the SF-150 is designed for prolonged daily use in demanding corrosive environments.

Capable of lifting up to 150 kg (including the mounted lifting tool) and able to utilise almost all of our lifting tools, both simple, manual and electric, the SF-150 is the obvious choice for lifting and handling tasks where the weight is in the low to medium range.

Features

Self-locking gear system for safety and accuracy. In case of electrical failure the mechanical system automatically brings the lifter to an immediate standstill.
Large battery capacity with charge-state indicator. The large battery capacity allows for prolonged use of the lifter, even with the addition of electrical lifting tools.
Easily customizable: height of lifting column and dimensions of wheel base can be modified to customer specifications.
Rugged construction for industrial use. With its all-stainless-steel construction, the SF-150 is built to last and for use in demanding industrial environments. Featuring a fully welded wheel base, these lifters do not become loose or wobbly even after many years of intensive use.
Ergonomic handle designed to allow the user multiple different grips depending preference and situation.
Robust remote control specifically designed for our lifters. Where practically all other lifters use a remote control with a plastic housing, our remote control features a full metal body and a high quality PU spiral cable. These remote controls do no crack or break when dropped and the cable remains flexible even after many years of use.
Dual speed lifting and lowering. The control unit and remote control allow for either full speed operation or lifting at a reduced speed. The reduced speed is pre-set to the desired value on the control unit.

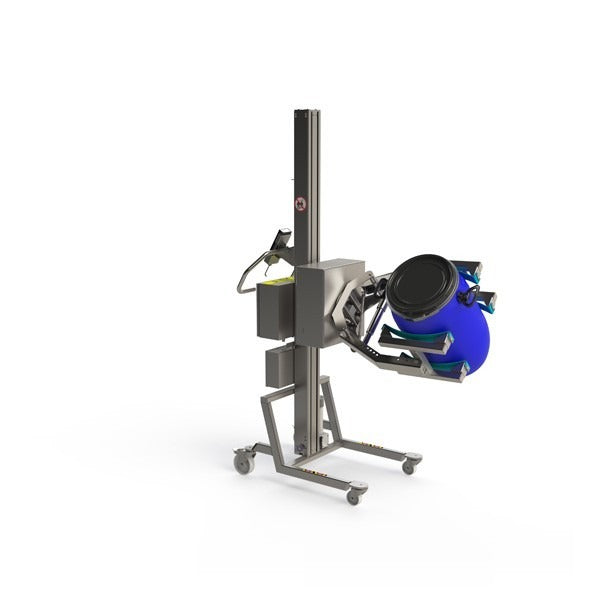

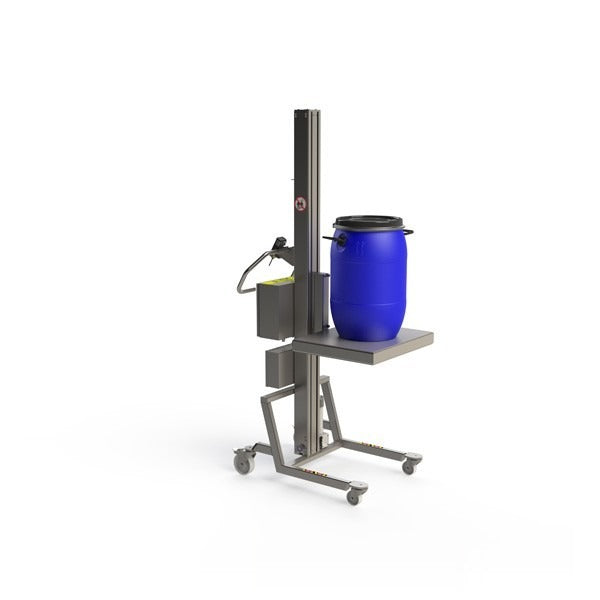

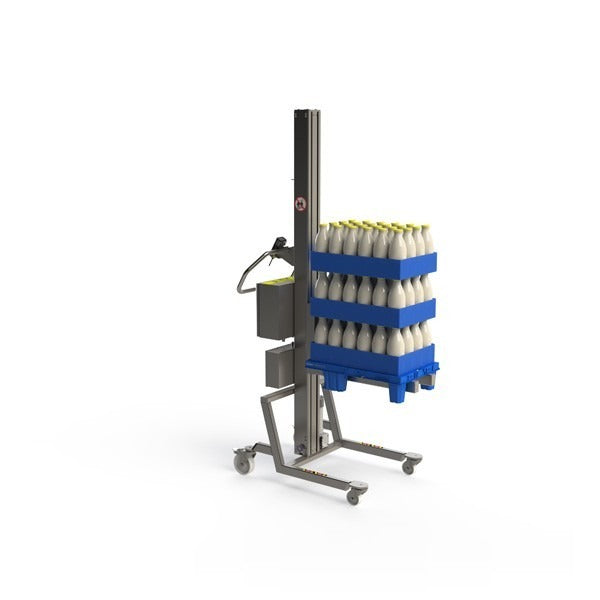

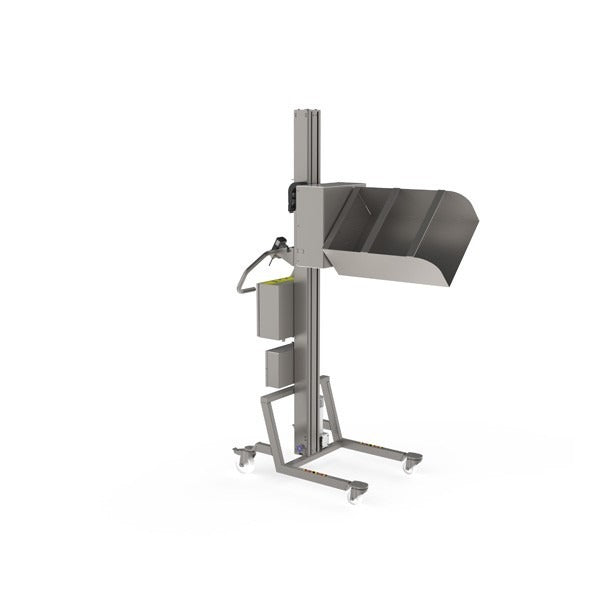

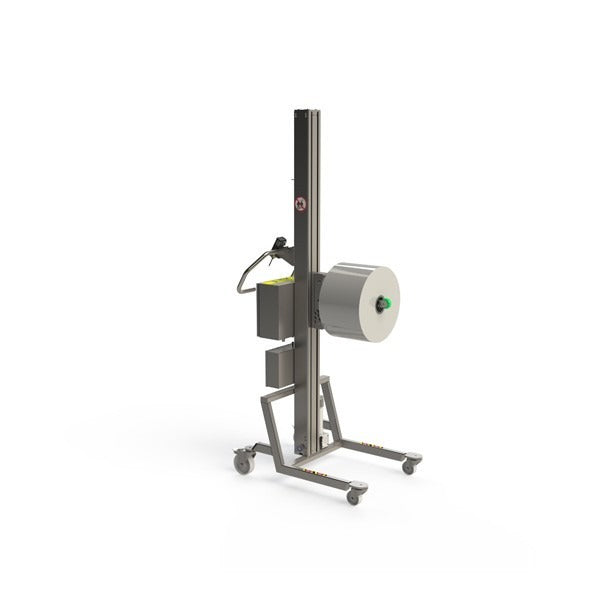

Large range of lifting tools: both electrical and non-electrical lifting tools are available.
Cambelt drive: The use of an AT-10 cambelt ensures smooth, reliable operation with no need for lubricants or continuous maintenance.
Wheels and castors: We use non-marking wheels and swivel castors with quality bearings making the lifter easy to maneuver. A large selection of different wheels are available to ensure that they suit different height requirements and floor surfaces.
Electronic overload protection – immediately stops all movement if lifter is overloaded.

SF-150 Materials Handling Machinery: Product Data

Specifikation	SF-150L	SF-150M	SF-150H	SF-150HSP
Løftekapacitet	150 kg	150 kg	150 kg	150 kg
Totalhøjde	1.500 mm	1.974 mm	2.350 mm	1.300-3.500 mm
Grundstørrelse (LxB)	828×577 mm	828×577 mm	828×577 mm	828×577 mm
Slaglængde	1.000 mm	1.480 mm	1.850 mm	805–3.005 mm
Løftehastighed – ingen last	130 mm/s	130 mm/s	130 mm/s	130 mm/s
IP beskyttelses-klasse	65	65	65	65
Baghjul	ø125 mm – Centralbremse	ø125 mm – Centralbremse	ø125 mm – Centralbremse	ø125 mm – Centralbremse
Forhjul	Drejelige hjul ø50 mm	Drejelige hjul ø50 mm	Drejelige hjul ø50 mm	Drejelige hjul ø50 mm
Overfladebehandling	AISI 304 – glasblæst	AISI 304 – glasblæst	AISI 304 – glasblæst	AISI 304 – glasblæst
Batterikapacitet	24 V – 18 Ah	24 V – 18 Ah	24 V – 18 Ah	24 V – 18 Ah
Batterioplader	Indbygget – 24 V 3.5 A	Indbygget – 24 V 3.5 A	Indbygget – 24 V 3.5 A	Indbygget – 24 V 3.5 A
Strømforsyning	110-230 V AC	110-230 V AC	110-230 V AC	110-230 V AC
Styreenhed	Solid-State PLC	Solid-State PLC	Solid-State PLC	Solid-State PLC
Bruger-styresystem	Fjernbetjening med nødstop til manipulatorer	Fjernbetjening med nødstop til manipulatorer	Fjernbetjening med nødstop til manipulatorer	Fjernbetjening med nødstop til manipulatorer
Overbelastningsbeskyttelse	Standsning ved overstrøm	Standsning ved overstrøm	Standsning ved overstrøm	Standsning ved overstrøm
