Precise Manual Tipping for Safe Handling of Rolls and Drums

The Manual Tipping Unit (MTU) is designed for controlled manual forward tipping and rotation of loads held by an attached lifting tool. It is typically used in combination with a Manual Linear Clamp (MLC) or an Electric Linear Clamp (ELC) for handling drums, barrels, rolls, and similar loads.

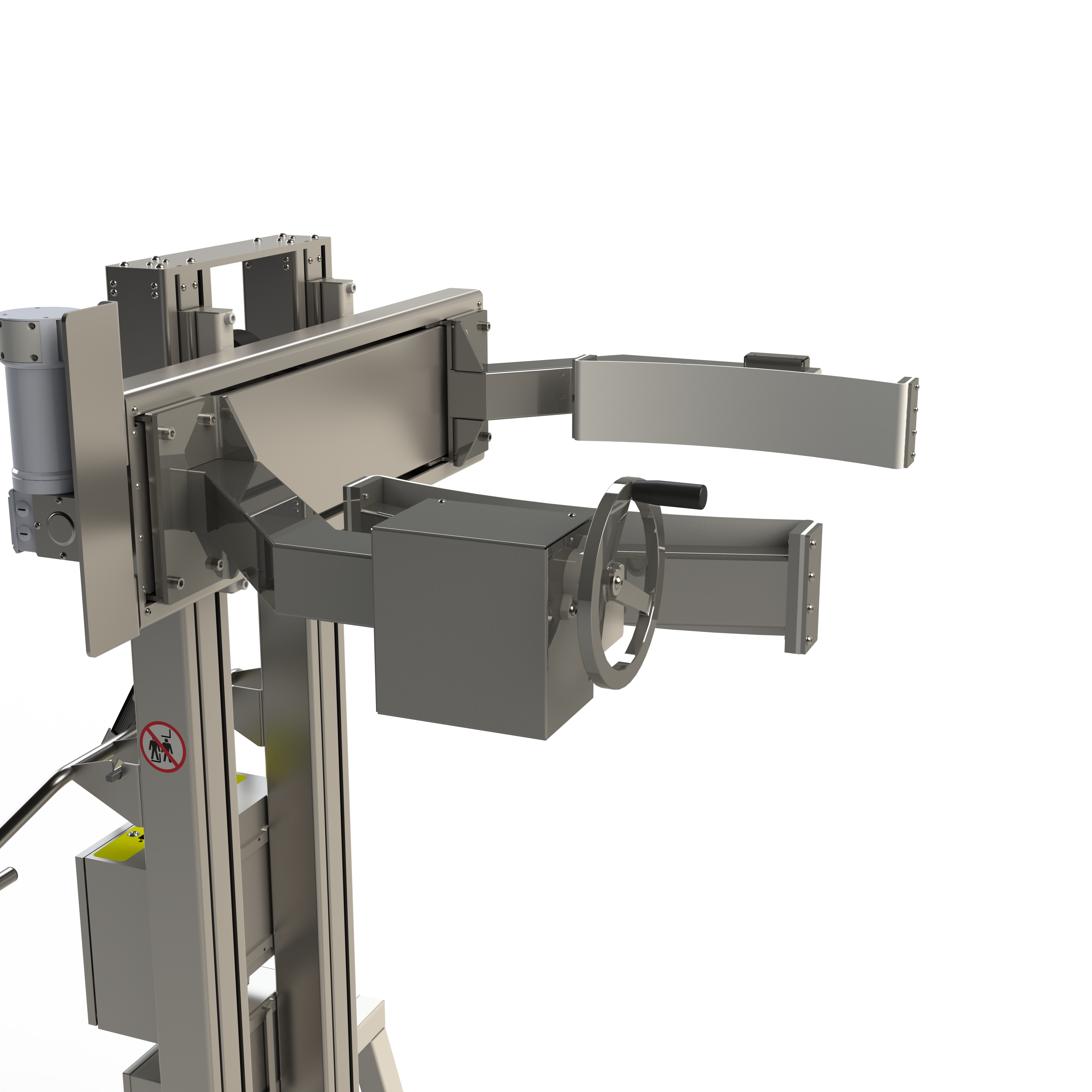

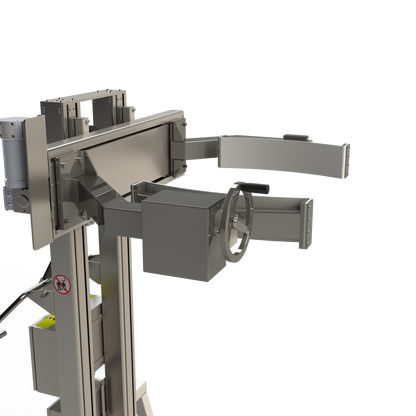

On the outside, the MTU features a housing with a wheel and handle. Inside the housing, a self-locking worm gear system is integrated. The gear is driven by manual operation of the handle and enables controlled forward tipping of the load.

The self-locking function maintains load position when rotation is stopped, ensuring stable handling throughout the operation. Rotation is performed around the main axle of the unit.

Key characteristics:

• Manual worm gear system with handwheel operation

• Self-locking gear system for safety and stable load positioning

• Large gear ratio for controlled and precise manipulation of heavy loads

• Controlled tipping via mechanical drive

• Stable load retention when rotation is stopped

• Compatible with lifting tool configurations such as clamps, (Manual Linear Clamp (MLC) and Electric Linear Clamp (ELC))

• Supports tipping around the load's center of mass where possible

Construction and Application

Rugged industrial design with all-stainless-steel construction ensures durability in demanding environments.

A hygienic design variant is available for cleanroom applications and for use in the food and beverage industry.

Other Manipulators with Similar Forward Tipping Capabilities

Other material handling equipment designed for lifting and forward tipping of drums and rolls includes:

• Electric Tipping (ETU)

Contact us

Get in touch for a quote, custom sizing, or assistance in selecting the right roll or drum turning tool for your mobile lifter and application.
