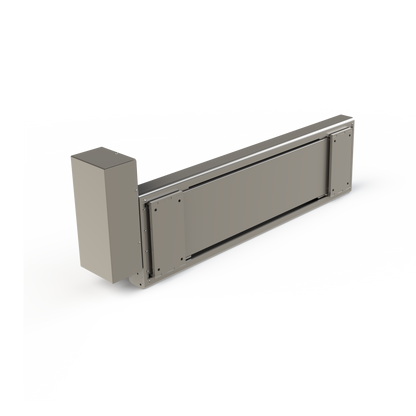

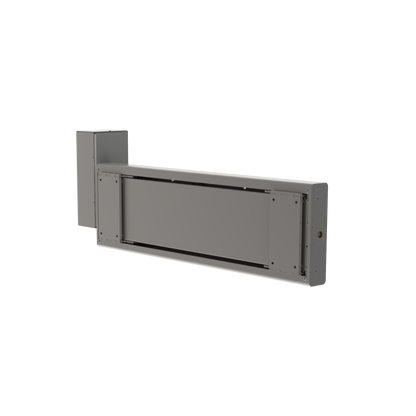

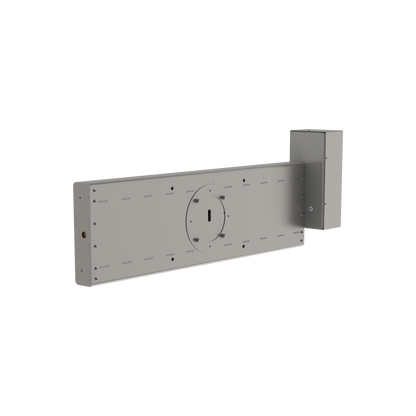

Electric Linear Clamp (ELC)

Take Full Control of Heavy Industrial Load Handling - Drums, Barrels and Rolls

The Electric Linear Clamp (ELC) delivers precise, powered clamping for cylindrical loads such as drums, barrels, and rolls. Its modular design supports various lifting arms and grippers, and it can be combined with tipping or rotation units.

Driven by an electric motor with a self-locking worm gear, the ELC ensures smooth carriage movement and consistent clamping force. An electronic overload sensor stops operation automatically if the maximum force is reached, while a remote control allows safe operation from a distance. The system maintains a firm, reliable grip throughout lifting, reducing operator effort and enhancing load stability.

Key characteristics:

Construction and Application

Rugged industrial design with all-stainless-steel construction ensures durability in demanding environments.

A hygienic design variant is available for cleanroom applications and for use in the food and beverage industry.

Other Lifting Solutions with Similar Clamping Capabilities

Other material handling equipment designed for clamping loads such as drums and / or rolls includes:

Contact us

Get in touch for a quote, custom sizing, or assistance in selecting the right roll or drum clamping tool for your handling machinery and application.

(The images on this page change based on the type of lifter you select below.)

Get a quote for a personalized lift

Configure your lift, fill in your information - then one of our experts will get back to you with a personalized quote.

Datasheets

Clamping force

4500 N Adjustable

IP65

Dust tight and protected against water jets.

Compact

Designed for industrial use

Electric

Electric remote control

Durable

Stainless Steel

Product details

ELC can be customized in width

The ELC system can be customized for specific applications by adjusting the width, allowing it to meet unique requirements in various industrial environments. This customization ensures that the system can effectively handle specific products or materials that require precise fitting. By offering tailored solutions, the ELC can optimize workflows and enhance productivity, supporting specific functions and applications without the need for standardized solutions.

Clamping force can be electronically limited

This feature allows for precise control over the force applied during the clamping process, ensuring that delicate materials are handled with care. By electronically limiting the clamping force, the risk of damage or deformation of sensitive components is greatly reduced, enhancing reliability and efficiency in various applications.

Replaceable grippers

The use of replaceable grippers facilitates quick and easy maintenance, allowing operators to adapt the clamping tool for different tasks or replace worn components without needing to replace the entire unit. This modular approach enhances versatility and minimizes downtime, making it an efficient solution for fluctuating project requirements.

Can be combined with Electric Rotation Unit (ERU)

Integrating the Electric Rotation Unit with the clamping system enhances its flexibility by allowing 360-degree rotation of the gripped items. This combination increases operational efficiency in assembly lines and robotic applications, where multi-angle access to components is often necessary.

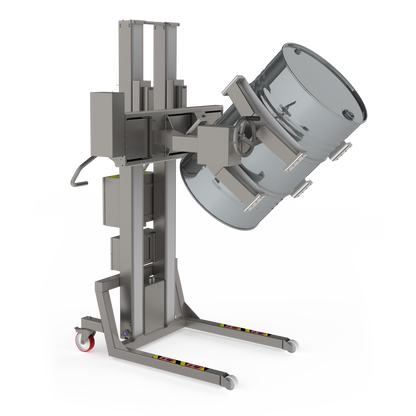

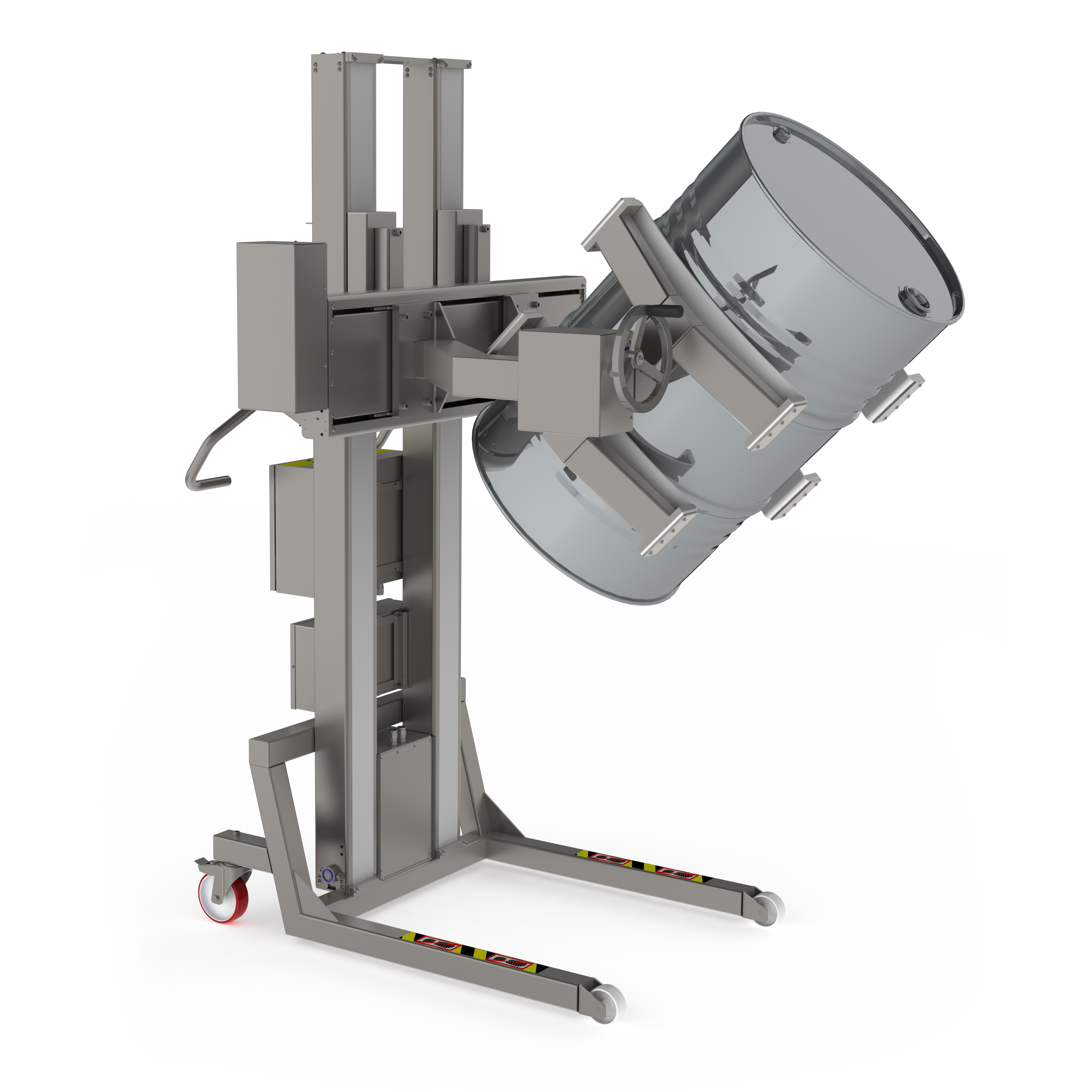

Can be combined with Electric Tipping Unit (ETU)

The ability to pair with the Electric Tipping Unit further expands the functionality of the clamping system by enabling automated tipping and repositioning of materials. This integration is particularly useful in processes where materials need to be oriented in specific ways for processing or assembly.

Designed for industrial use in demanding environments

The system is robustly built to endure the rigors of industrial applications, including exposure to harsh conditions such as extreme temperatures, dust, and moisture. This durability ensures consistent performance, reliability, and a longer lifespan even under challenging circumstances.

Hygienic version for food and cleanroom applications

The fully electric operation of this system provides numerous benefits, including reduced energy consumption, improved precision, and lower maintenance requirements compared to pneumatic or hydraulic systems. This design contributes to a more sustainable operation while ensuring high performance.

Fully electrically driven

The fully electric operation of this system provides numerous benefits, including reduced energy consumption, improved precision, and lower maintenance requirements compared to pneumatic or hydraulic systems. This design contributes to a more sustainable operation while ensuring high performance.

Lift compatibility

This clamping system is compatible with all our lifters except B and C Lines, specifically those with lifting capacities of 300 kg and 500 kg.

Compatible lifting tools

Electric Rotation Unit (ERU)
Electric Tipping Unit (ETU)
Electric Leveling Unit (ELU)
Lateral Adjustment Unit (LAU)
Load video:

Introducing the Electric Linear Clamp in Action

We are pleased to showcase the Electric Linear Clamp, an integral component of our bestselling fully electric pharma lifter designed for rolls and barrels. This reliable clamp enhances ergonomics and safety when handling heavy loads.

In the video, observe the Electric Linear Clamp as it securely and efficiently manages materials, contributing to smooth operations in warehouses and production environments. Experience how this advanced technology supports improved workflows while reducing physical strain on operators, promoting a safe and efficient work environment.
