Turn Heavy Loads with Ease with the Electric Rotation Unit - Where Controlled Power Meets Precision

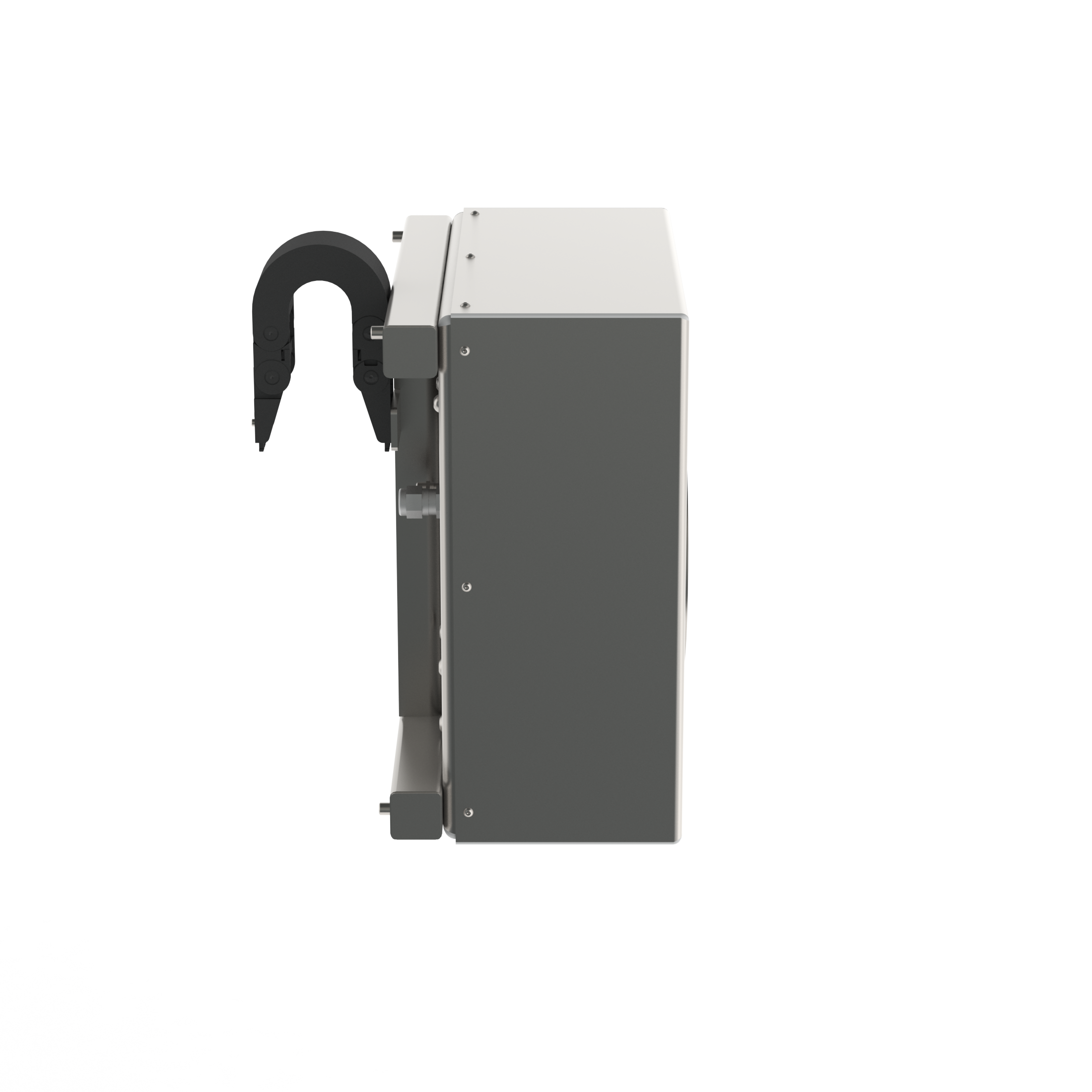

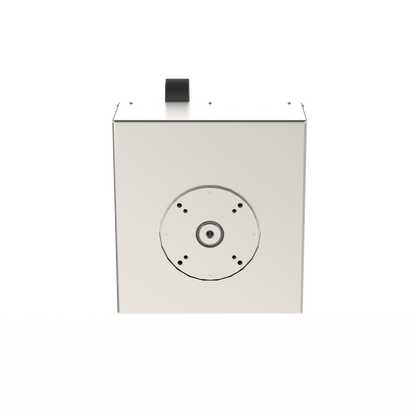

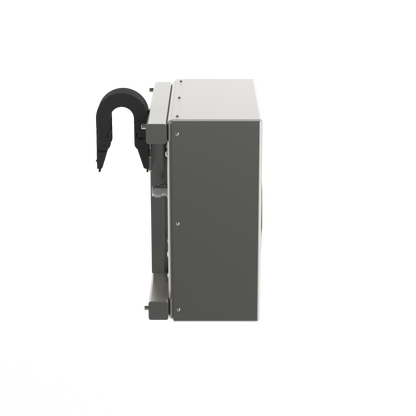

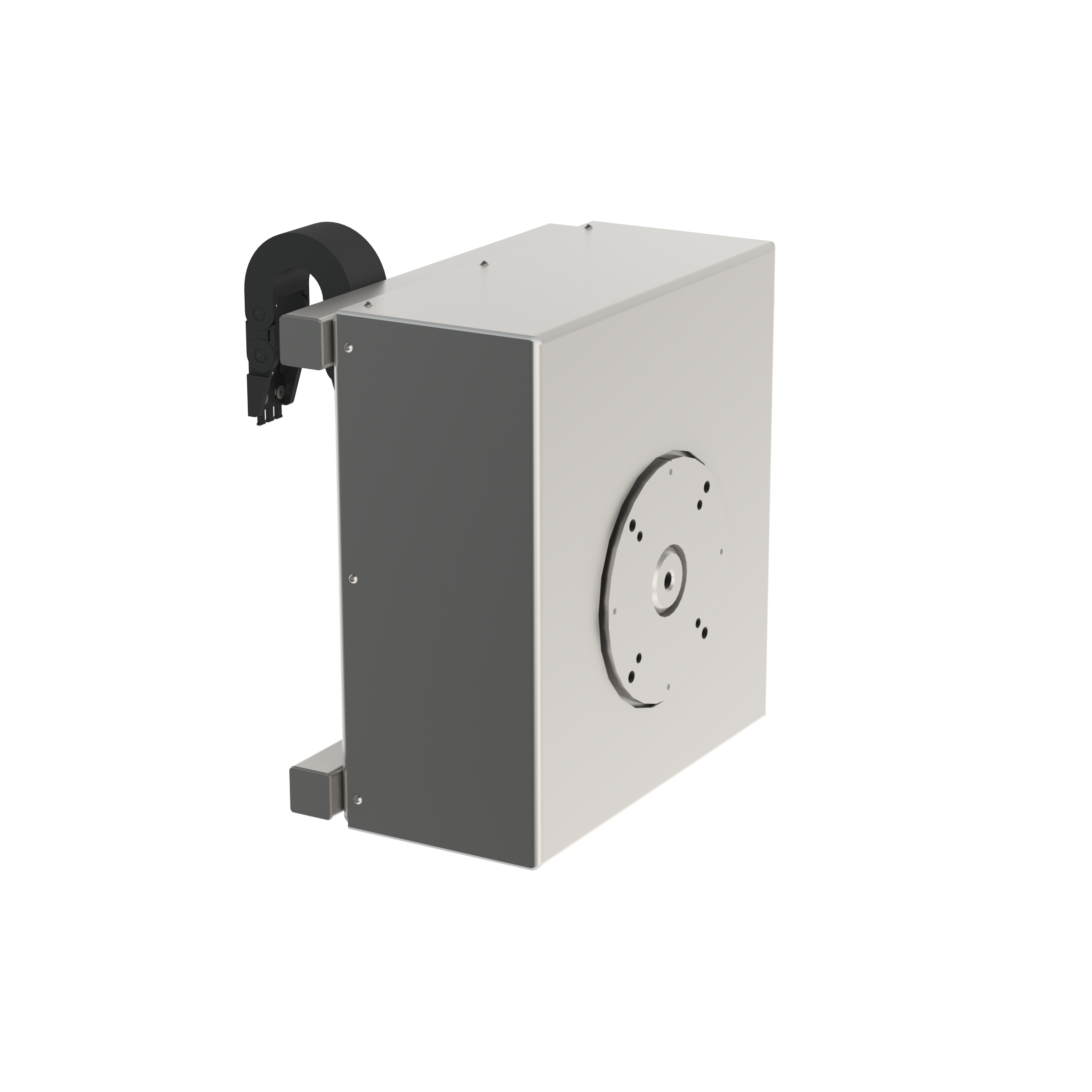

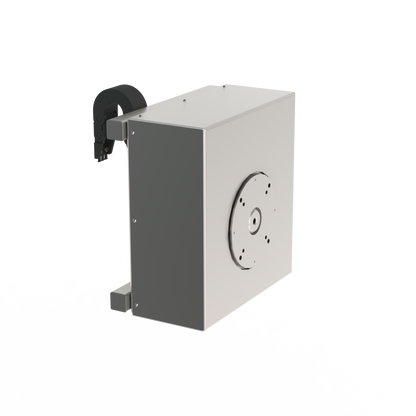

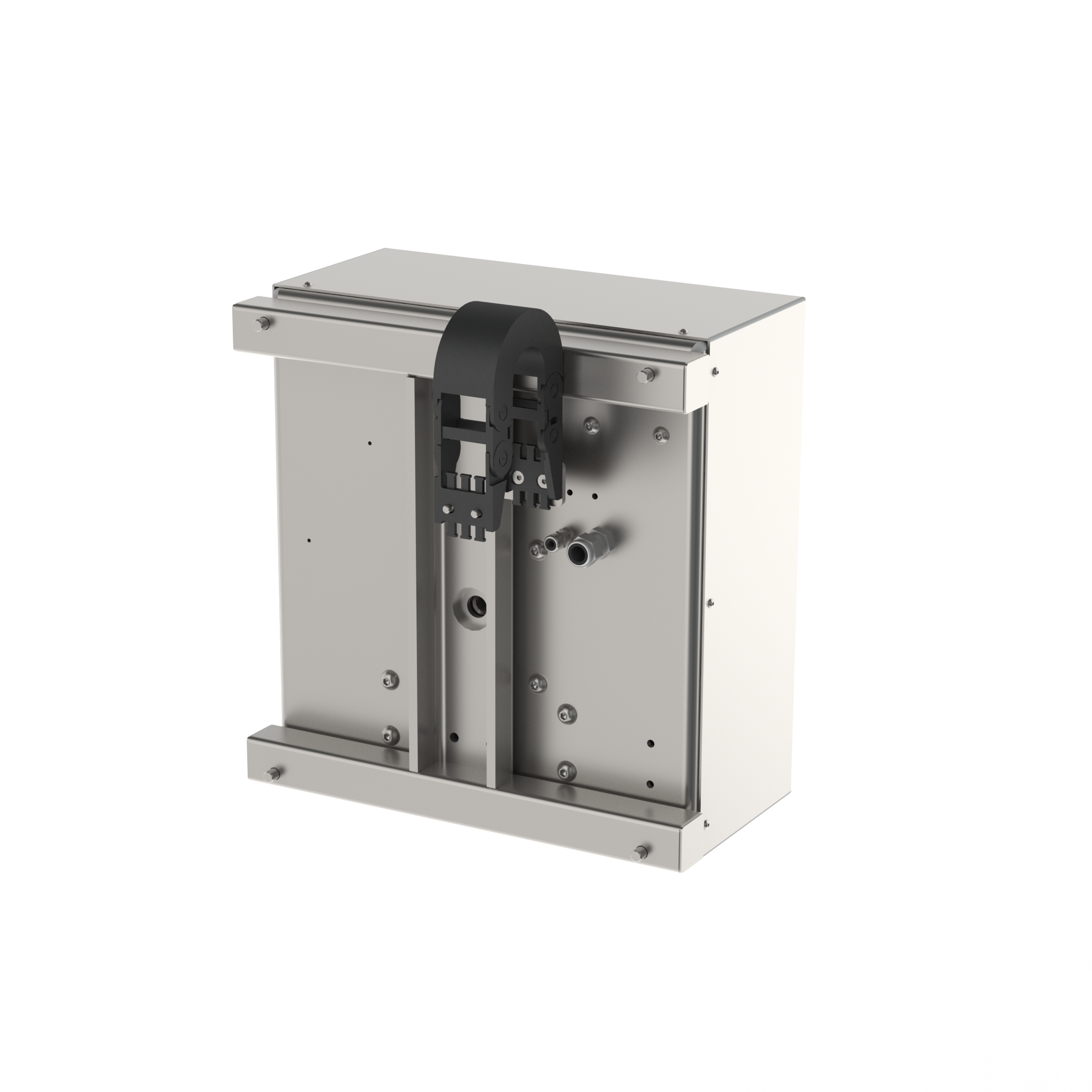

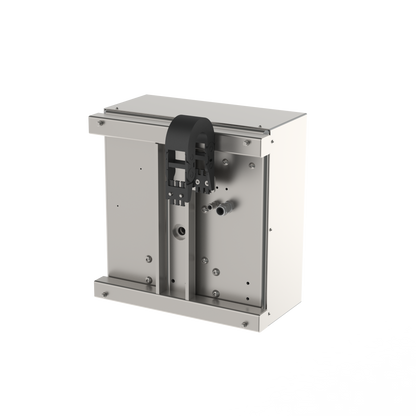

The Electric Rotation Unit (ERU) is mounted on the minilifter and is designed to rotate loads such as boxes, rolls, drums, and barrels via an attached lifting tool. The lifting tool is screwed directly onto the flange interface of the main axle, ensuring compatibility with various lifting tool configurations.

Rotation is driven by an electric motor through a self-locking worm gear, which drives the main axle. The self-locking gear system ensures that the load remains securely in position when rotation is stopped, making the ERU suitable for handling heavy and off-center loads.

An integrated encoder continuously monitors the rotational position of the ERU. As a result, the electric lifter automatically stops in the central position (when the load is vertical) and can optionally stop at multiple pre-programmed positions in both clockwise and counterclockwise directions, typically set to 90° or 180°.

The ERU is operated via remote control and provides precise and repeatable positioning during operation.

Key characteristics:

• Electric motor-driven rotation

• Maximum torque: 370 Nm at 4.5 RPM

• Self-locking worm gear for secure load holding and no back-driving

• Integrated encoder for precise and repeatable positioning with position feedback

• Automatic stop in center position

• Optional pre-programmed stop positions in both clockwise and counterclockwise directions (typically 90° or 180°)

• Remote-controlled operation

• Designed for handling of boxes, rolls, drums, barrels, and off-center loads

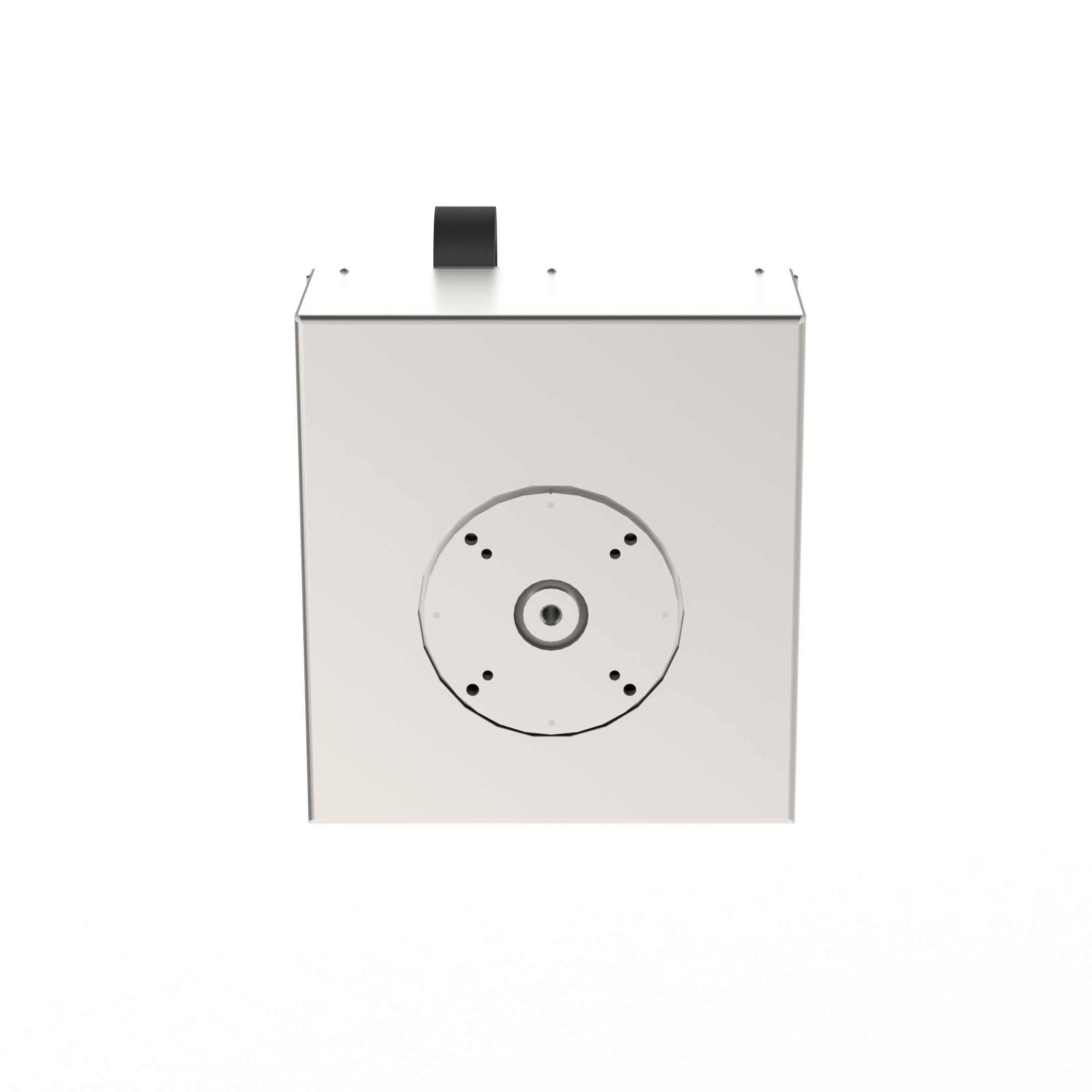

• Lifting tool mounted via screwed flange interface on main axle
• Compatible with various lifting tool configurations such as clamps (Electric Clamp (EC), Manual Clamp (MC), Manual Clamp with Spindle (MCS), Electric Linear Clamp (ELC), Manual Linear Clamp (MLC), forks (Fork (F), Adjustable Fork (AF) and expanders (Electric Expander Unit (EEU) and Manual Expander Unit (MEU)

Construction and Application

Rugged industrial design with all-stainless-steel construction ensures durability in demanding environments.

A hygienic design variant is available for cleanroom applications and for use in the food and beverage industry.

Other Manipulators with Similar Sideways Rotation Capabilities

Other material handling equipment designed for turning of drums and / or rolls includes:

• Manual Rotation (MRU)

• Simple Manual Rotation (SMRU)

Contact us

Get in touch for a quote, custom sizing, or assistance in selecting the right roll or drum turning tool for your electric lifter and application.
