Safe and Controlled Manual Tipping of Rolls, Drums and Barrels

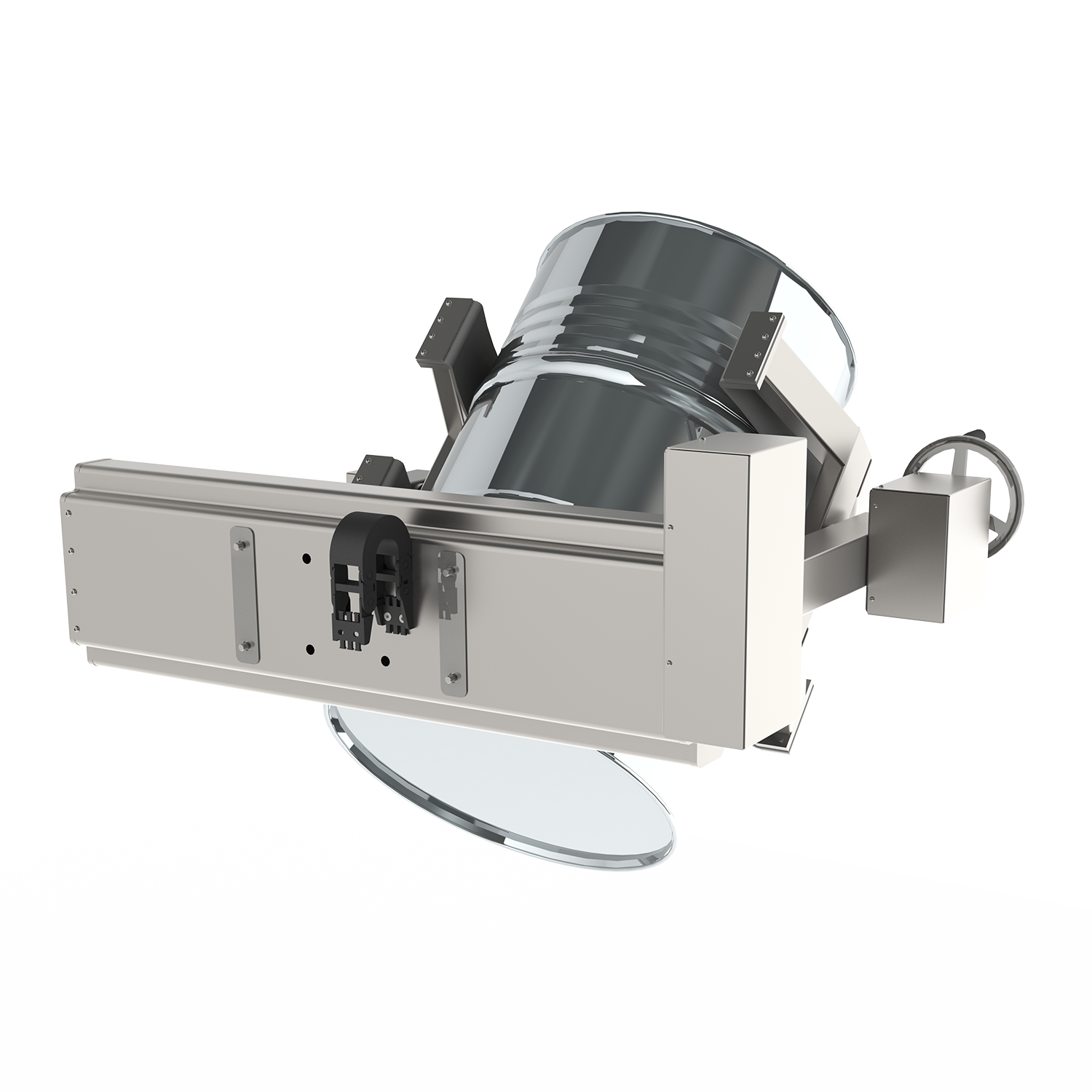

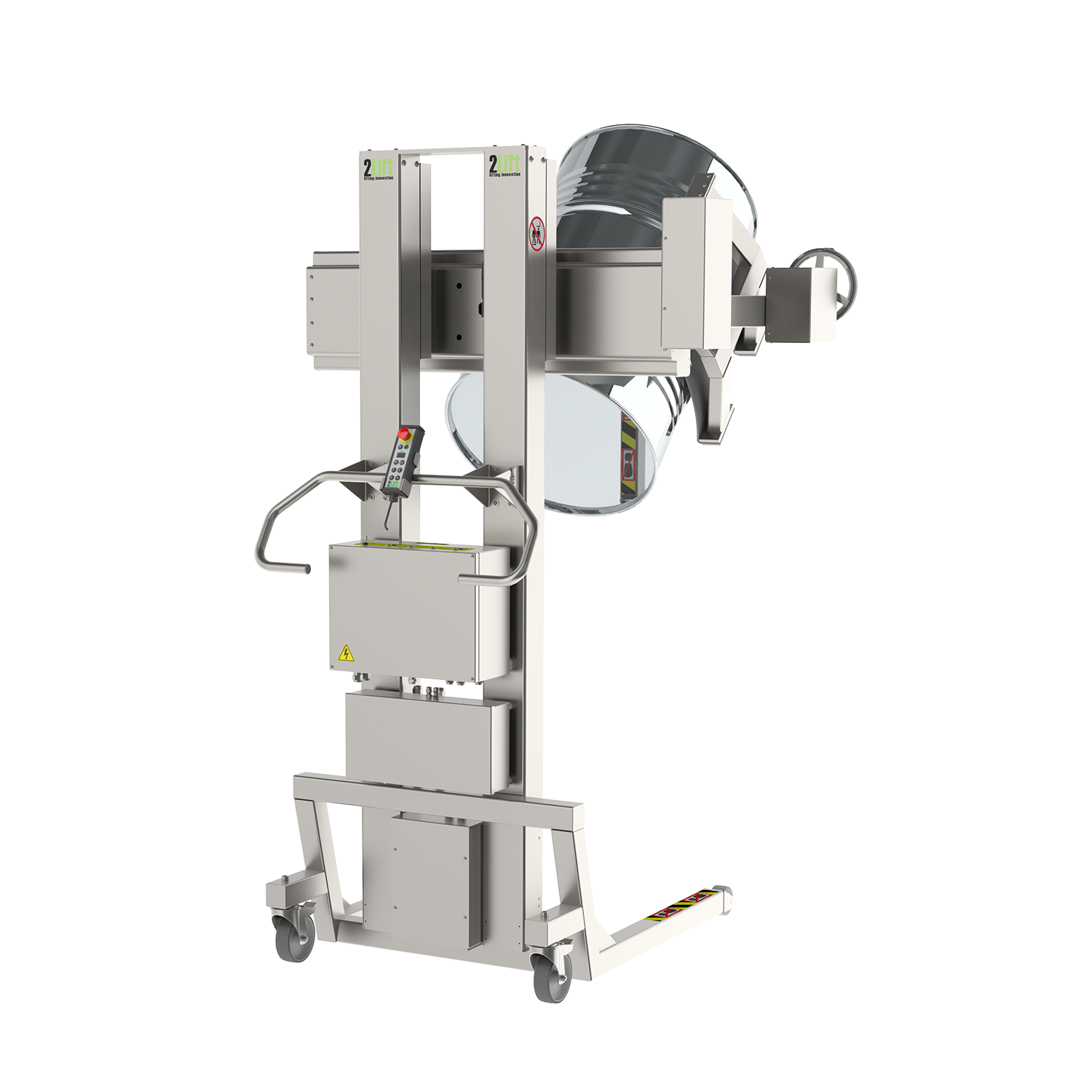

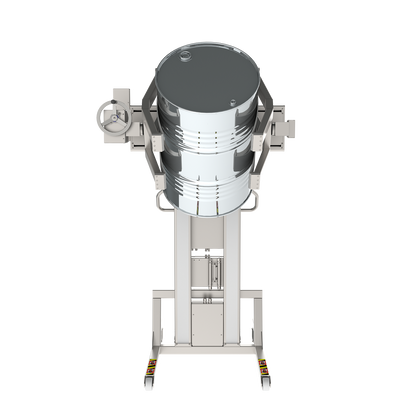

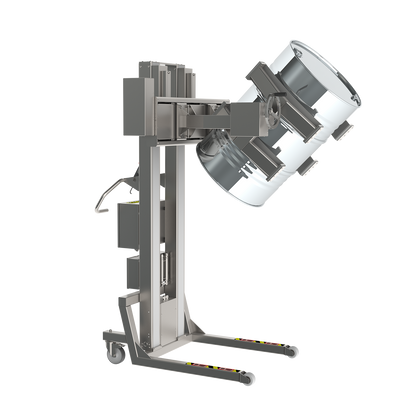

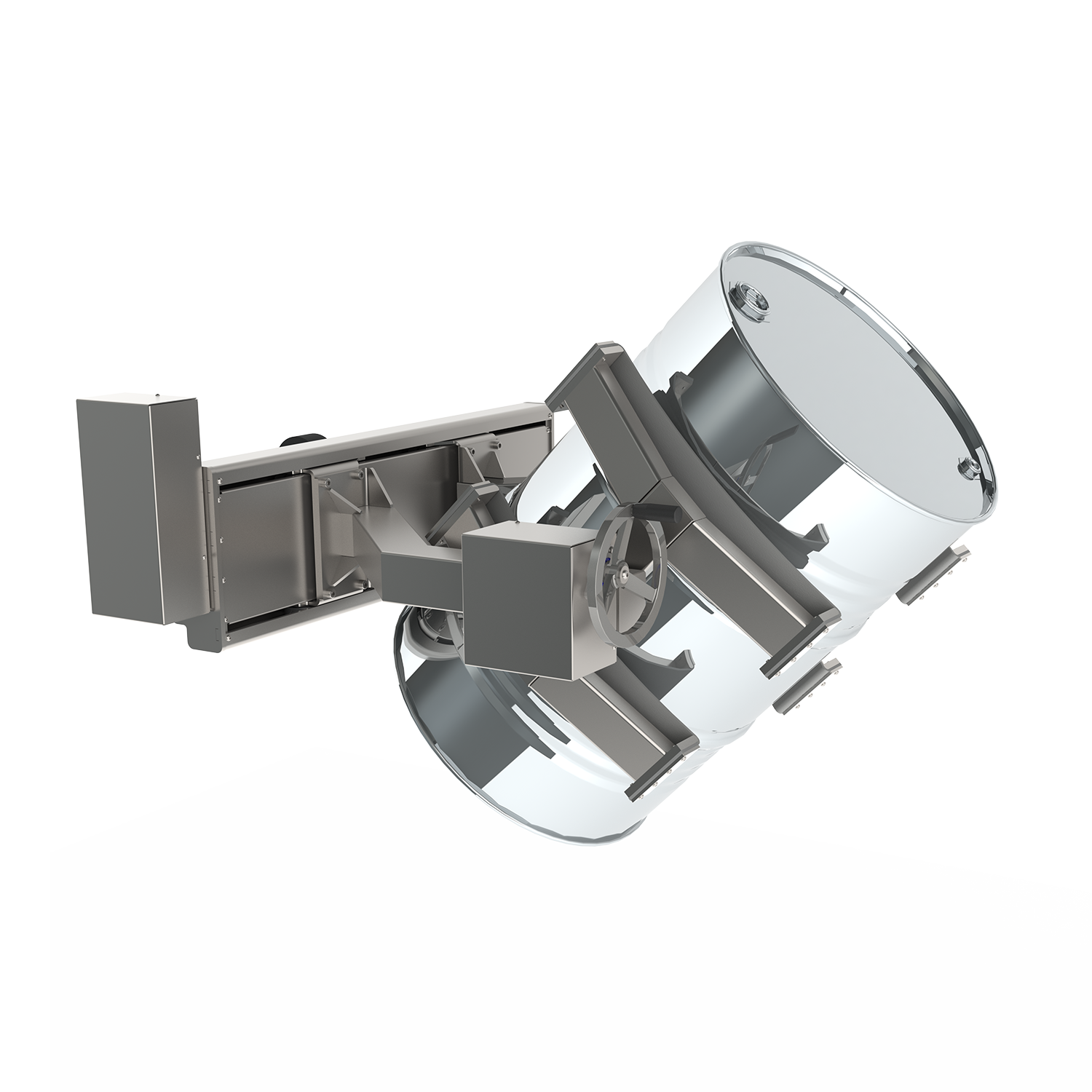

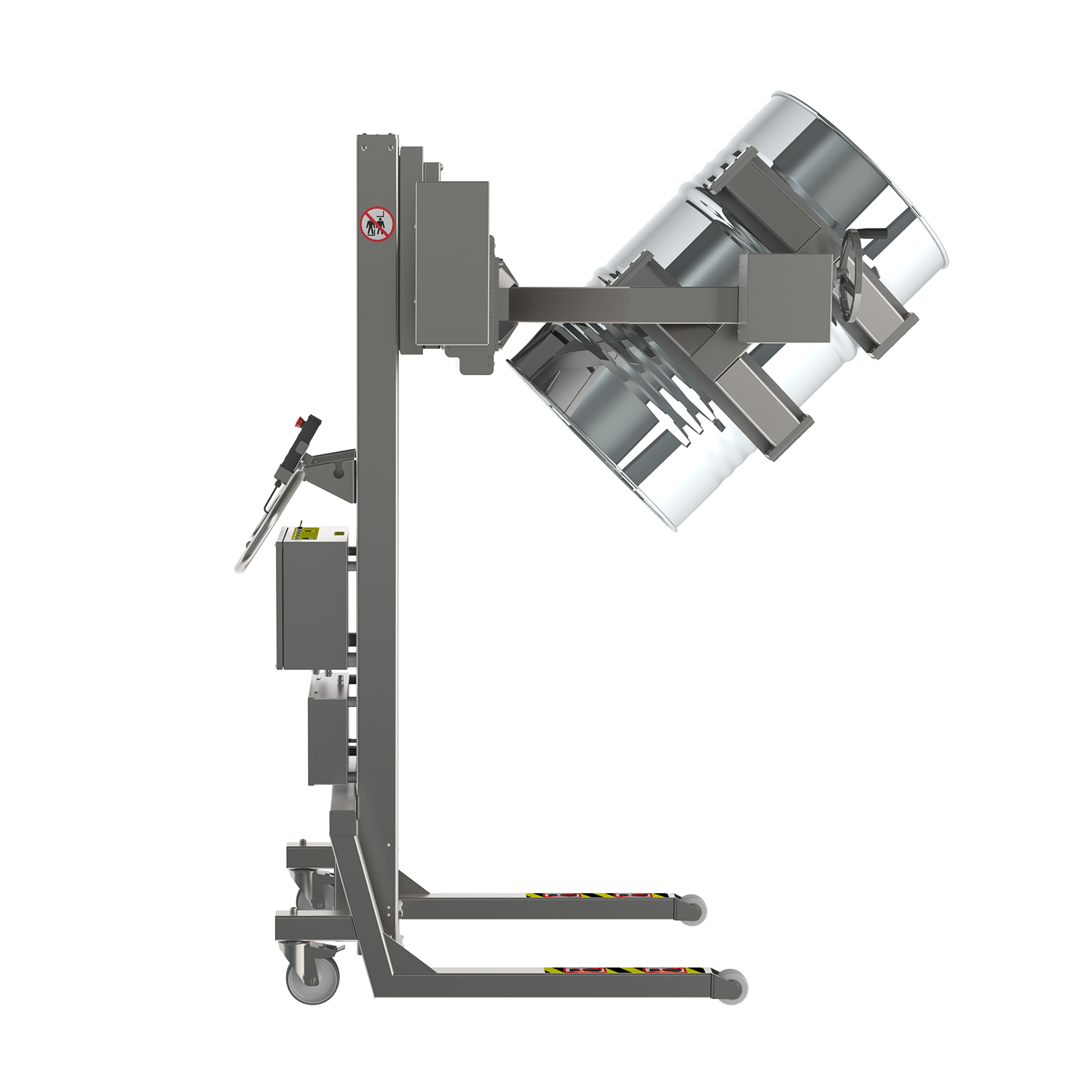

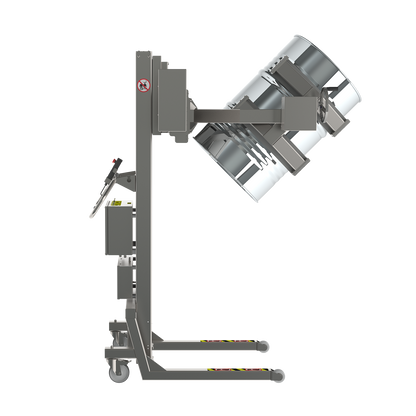

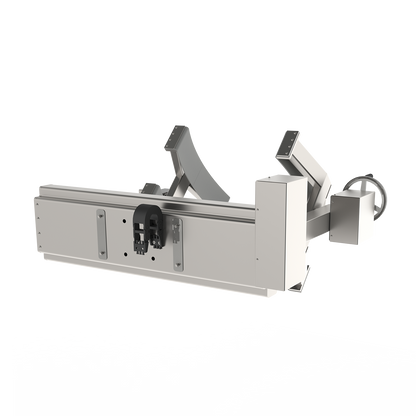

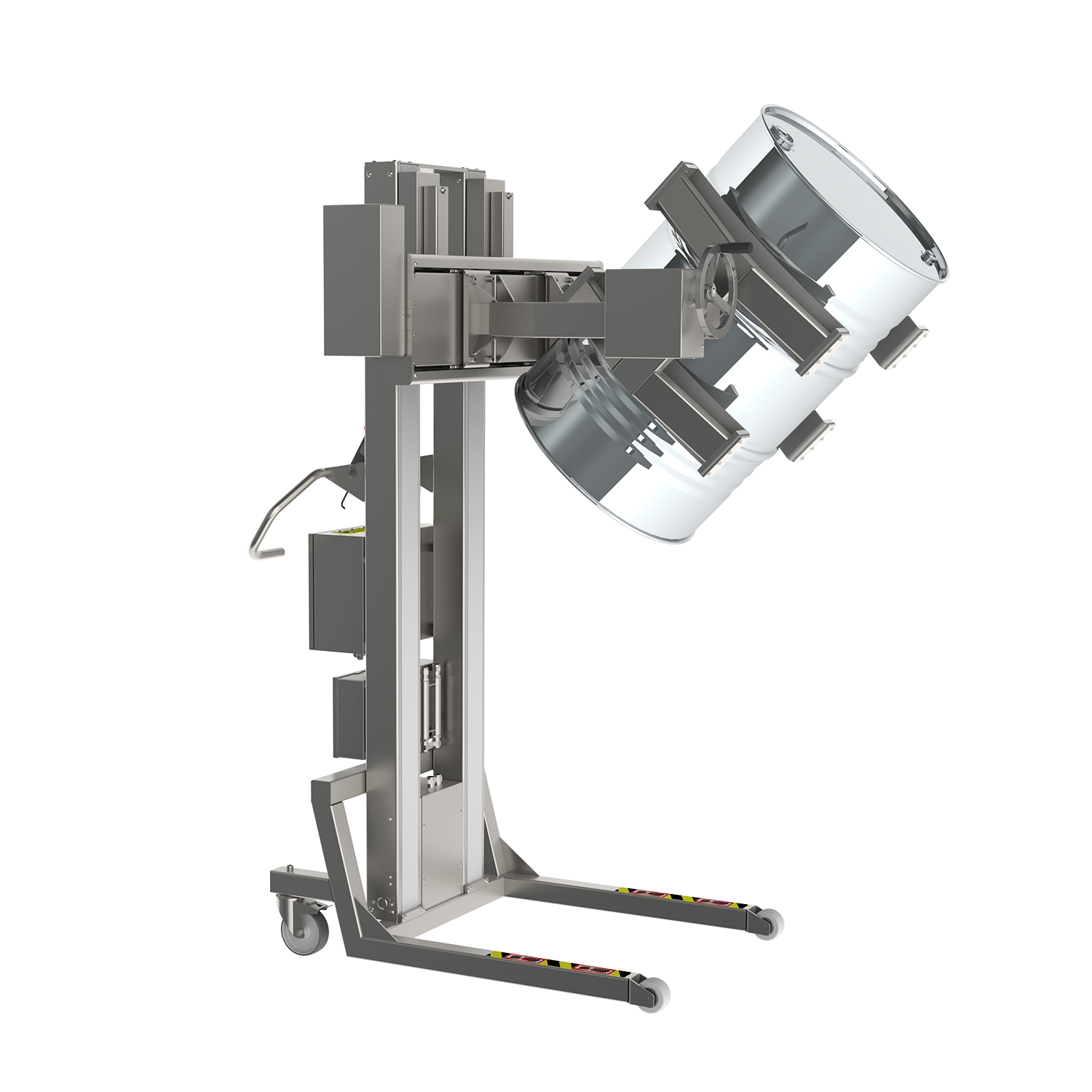

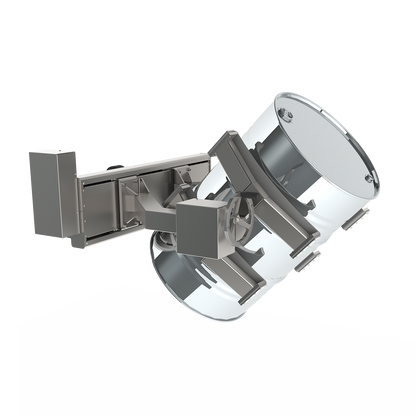

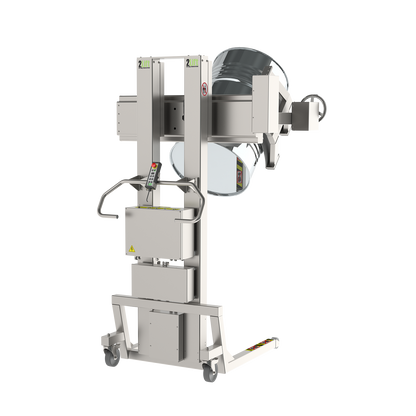

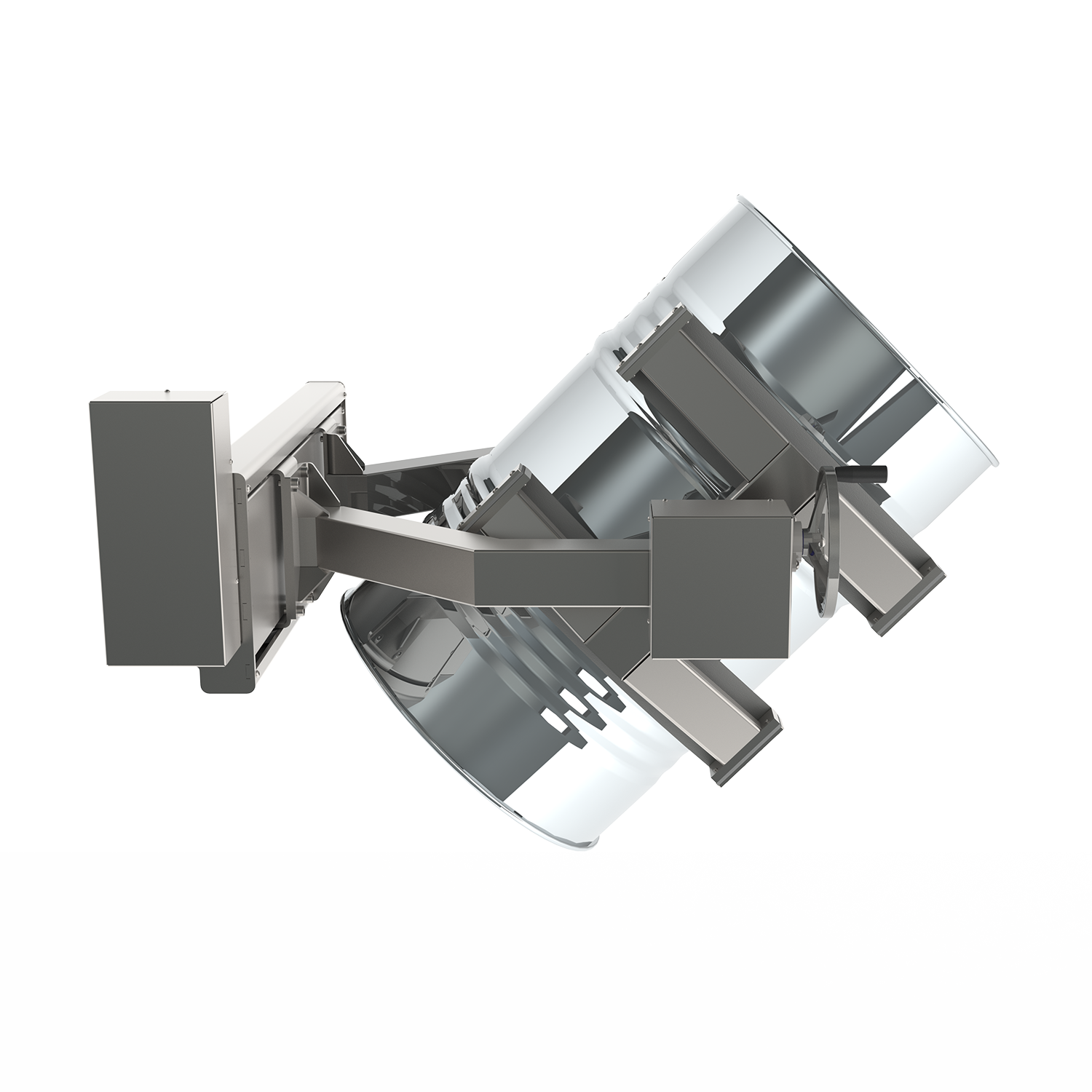

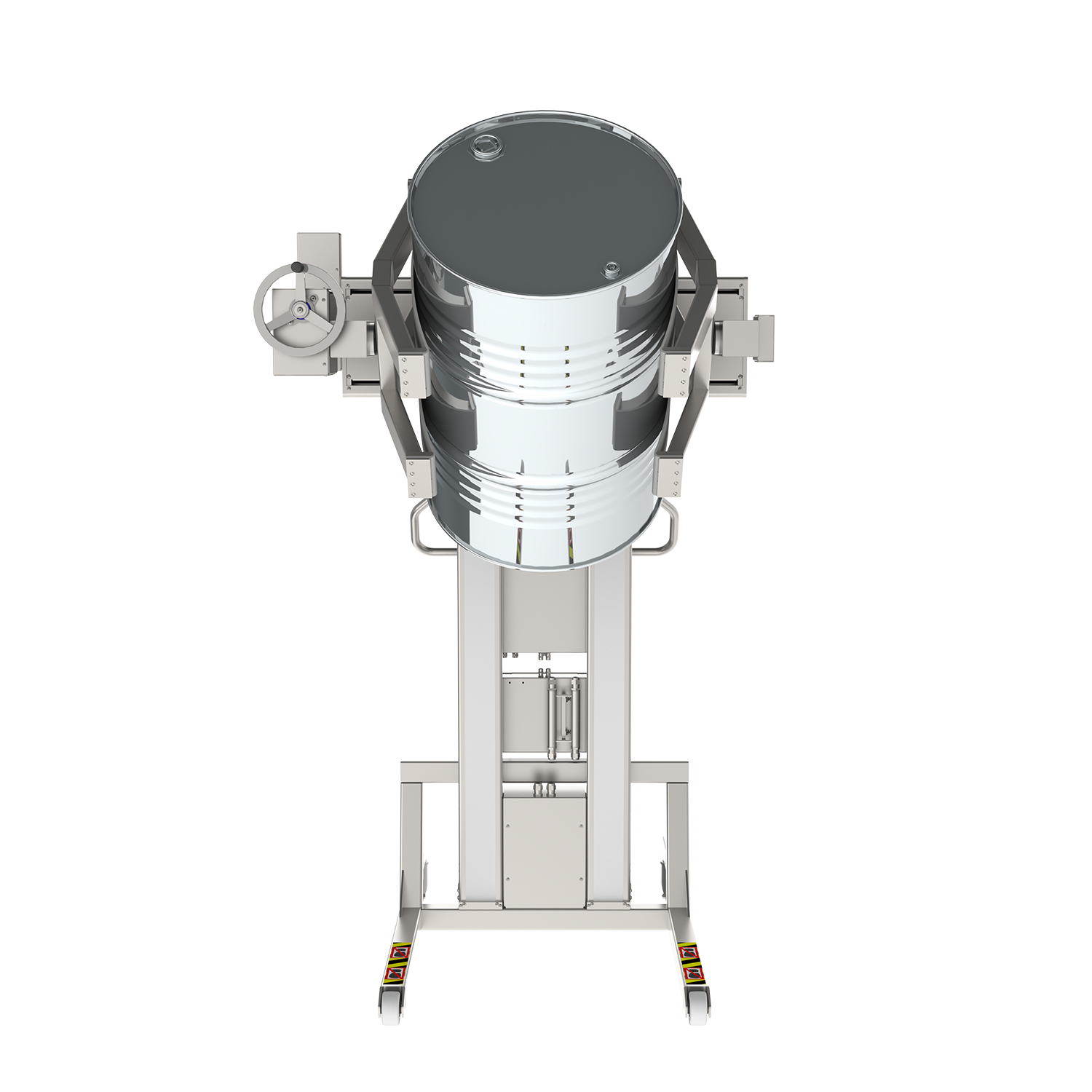

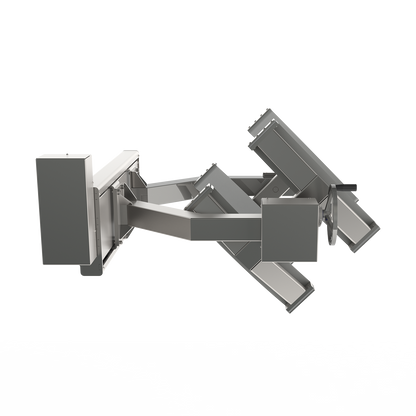

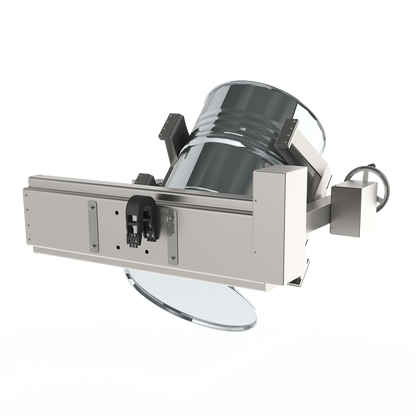

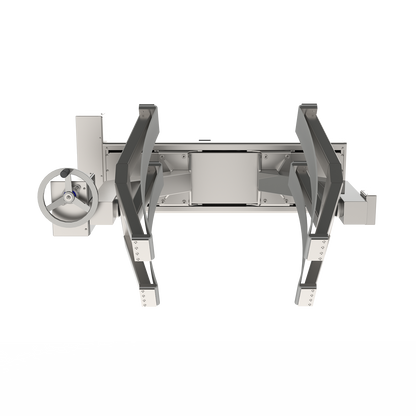

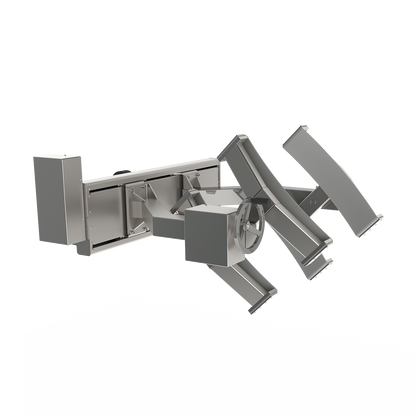

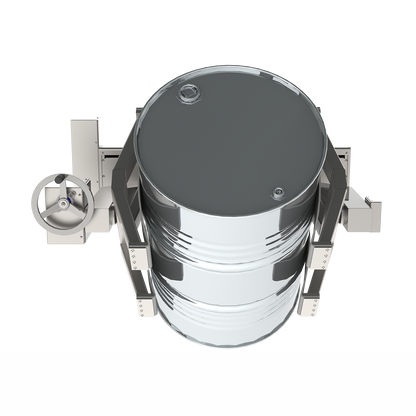

The Electric Linear Clamp with Manual Tipping Unit (ELC-MTU) is designed for secure lifting, stable gripping, and controlled forward tilting of cylindrical and similar loads such as drums, barrels, and rolls. These are often applications where containers need to be safely emptied.

The electrically driven clamping system reduces manual effort and physical strain for the operator, while the manual tipping function ensures precise control during the emptying process. This combination makes the system well-suited for applications where safe handling, reduced operator load, and accurate, gradual tipping are required.

System Configuration - Two Integrated Units

The ELC-MTU consists of two components operating in tandem:

• Electric Linear Clamp (ELC)

• Manual Tipping Unit (MTU)

Electric Linear Clamp (MLC)

The Electric Linear Clamp (ELC) delivers precise, powered clamping for cylindrical loads such as drums, barrels, and rolls. Its modular design supports various lifting arms and grippers, and it can be combined with tipping or rotation units.

Driven by an electric motor with a self-locking worm gear, the ELC ensures smooth carriage movement and consistent clamping force. An electronic overload sensor stops operation automatically if the maximum force is reached, while a remote control allows safe operation from a distance. The system maintains a firm, reliable grip throughout lifting, reducing operator effort and enhancing load stability.

Key characteristics:

• Electric motor with self-locking worm gear, ensuring stability and secure load holding
• Electronic overload protection

• Remote-controlled operation

• Maximum clamping force: 7500 N at 6 mm/s (load-specific limits apply)

• Compatible with various manipulation tools, including rotation units such as Electric Rotation Unit (ERU) and Manual Rotation Unit (MRU) and tipping units such as Electric Tipping Unit (ETU) and Manual Tipping Unit (MTU)

• Supports point grip, plate grip, and belt grip configurations

• Suitable for rolls, drums, barrels and similar loads

Manual Tipping Unit (MTU)

The Manual Tipping Unit (MTU) is designed for controlled manual forward tipping and rotation of loads held by an attached lifting tool. It is typically used in combination with a Manual Linear Clamp (MLC) or an Electric Linear Clamp (ELC) for handling drums, barrels, rolls, and similar loads.

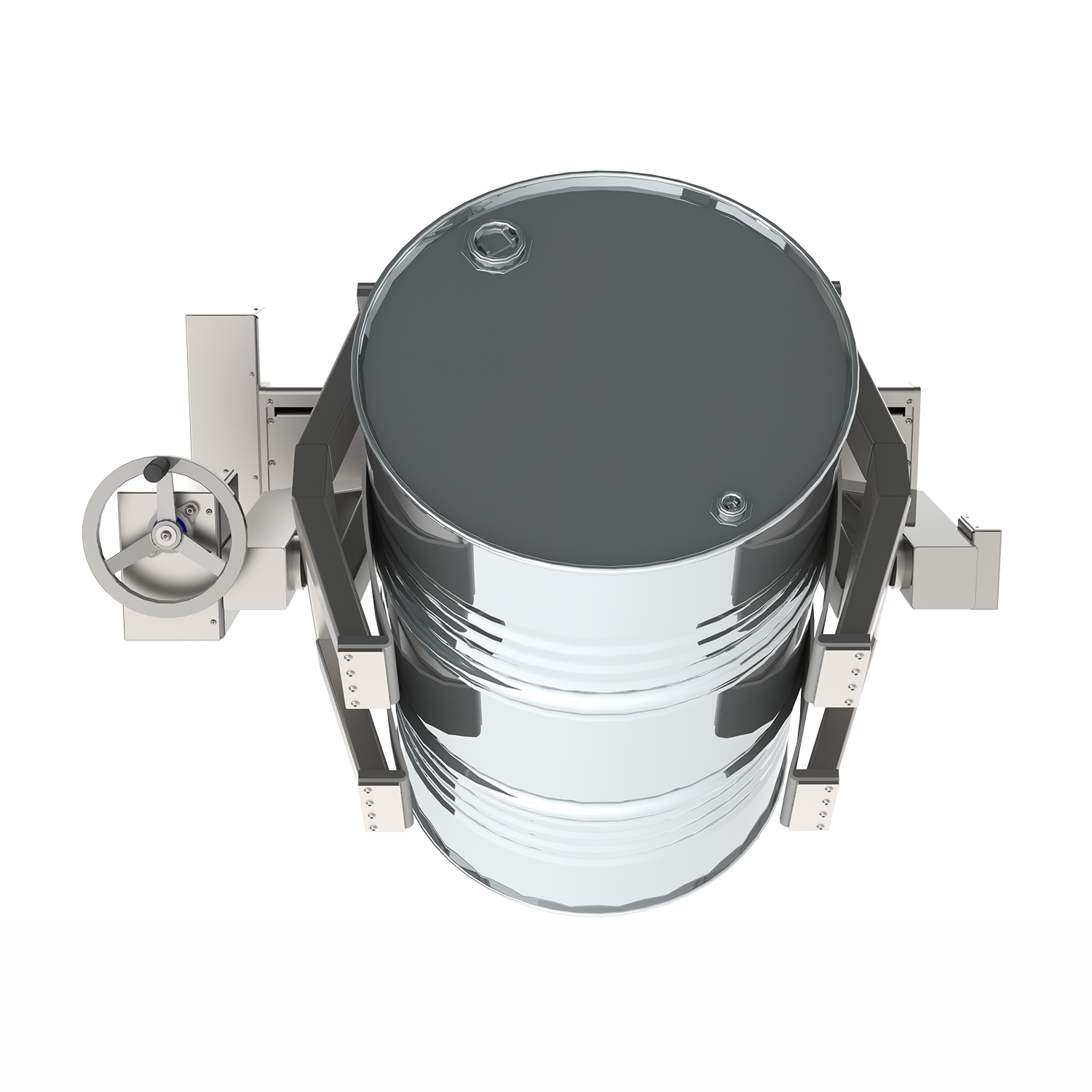

On the outside, the MTU features a housing with a wheel and handle. Inside the housing, a self-locking worm gear system is integrated. The gear is driven by manual operation of the handle and enables controlled forward tipping of the load.

The self-locking function maintains load position when rotation is stopped, ensuring stable handling throughout the operation. Rotation is performed around the main axle of the unit.

Key characteristics:

• Manual worm gear system with handwheel operation

• Self-locking gear system for safety and stable load positioning

• Large gear ratio for controlled and precise manipulation of heavy loads

• Controlled tipping via mechanical drive

• Stable load retention when rotation is stopped

• Compatible with lifting tool configurations such as clamps (Manual Linear Clamp (MLC) and Electric Linear Clamp (ELC))

• Supports tipping around the load's center of mass where possible

Construction and Application

Rugged industrial design with all-stainless-steel construction ensures durability in demanding environments.

A hygienic design variant is available for cleanroom applications and for use in the food and beverage industry.

Other Lifting Solutions with Similar Forward Tipping Capabilities

Other material handling equipment designed for lifting and forward tipping of drums and rolls includes:

• Manual Linear Clamp with Manual Tipping (MLC-MTU)

• Electric Linear Clamp with Electric Tipping (ELC-ETU)
• Manual Clamp with Simple Tipping (MC-STU)
• Electric Parallel Clamp (EPC)

Contact us

Get in touch for a quote, custom sizing, or assistance in selecting the right roll or drum turning tool for your mobile lifting device and application.
